RIEGLER Reducing nipple, G 1/2 AG, 3/8 IG, SW 22, ES 1.4408
Type number: REDNG1238ES4408
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Reducing nipple for pipeline construction, max. 20 bar - Type REDNG1238ES4408

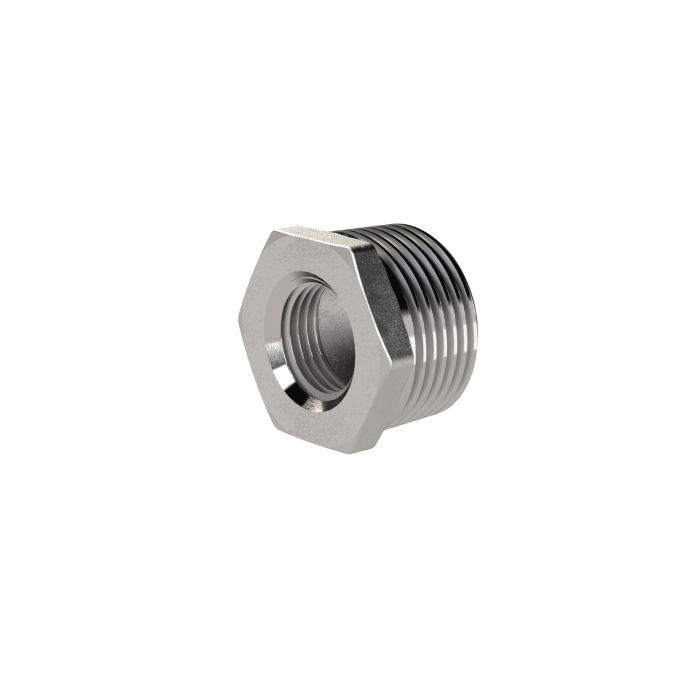

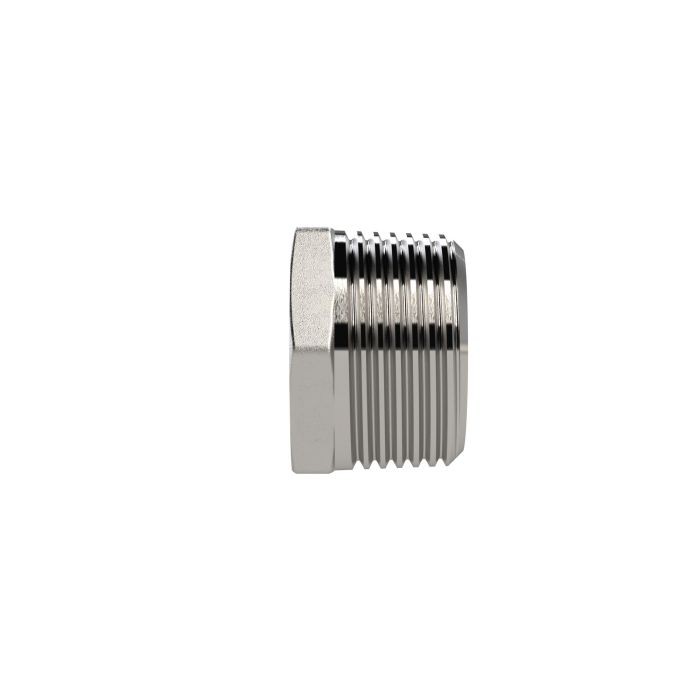

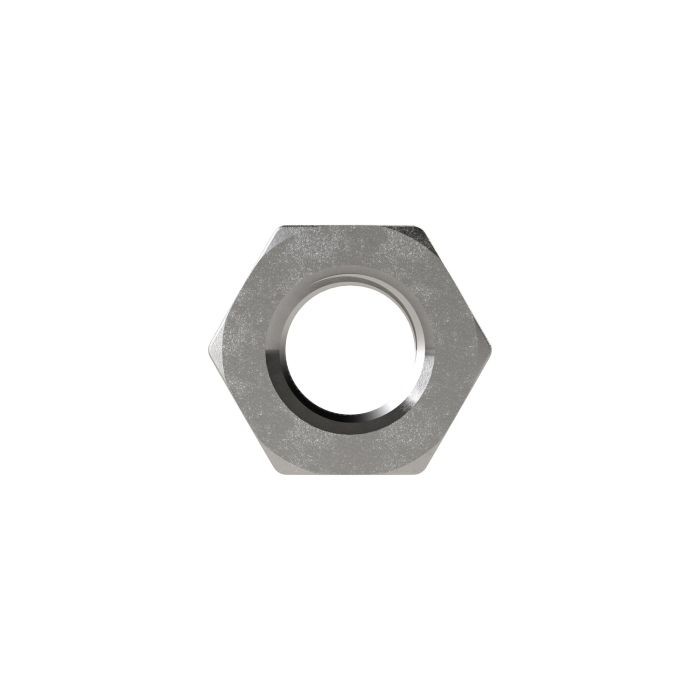

The RIEGLER reducing nipple, G 1/2 male, 3/8 female, SW 22, ES 1.4408 connects two threaded connections of different sizes. Designed for a maximum operating pressure of 20 bar. Flexible thread adjustment.
Field of application
Typical areas of application: Compressed air, water and process installation.
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Working pressure max. | 20 bar |
| Execution | Hexagon |
| Exception | no exception |
| External thread | G 1/2 |
| CAS No. SVHC 1 | none CAS No. |
| Thread standard | DIN EN ISO 228-1 |
| Internal thread | G 3/8 |
| Class name | STAINLESS STEEL |

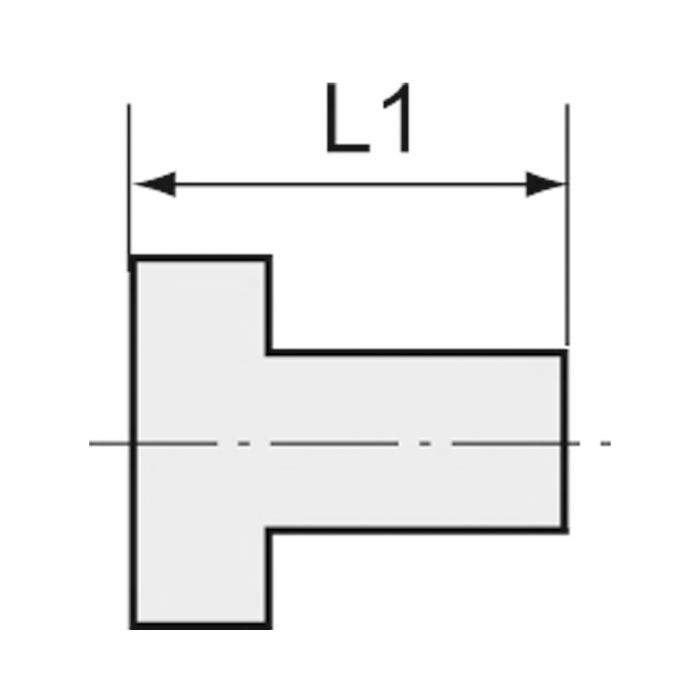

| L1 | 19.5 mm |
| Material identification | 14408 |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS Article of the Directive | no entry |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| SW | 22 mm |
