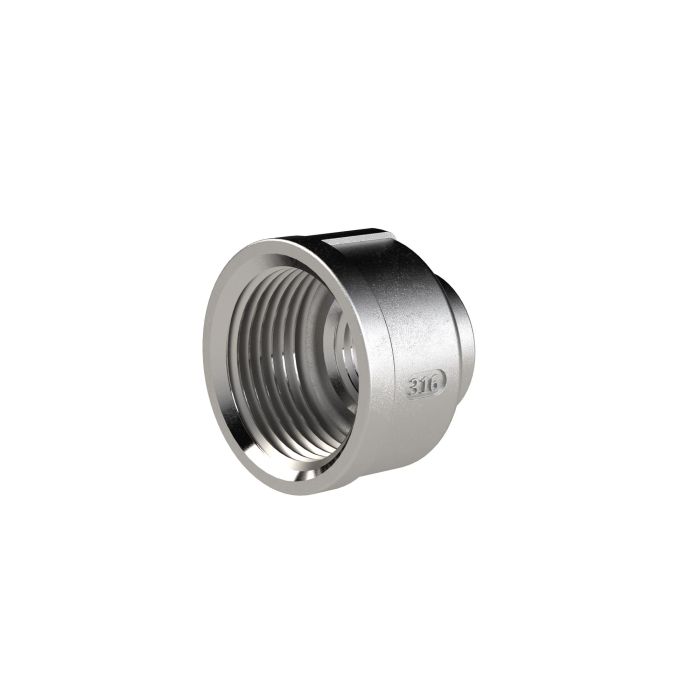

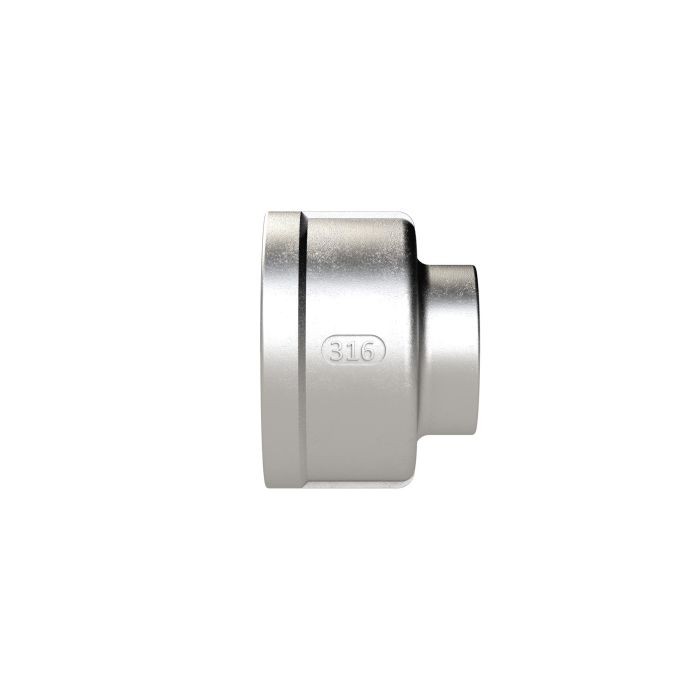

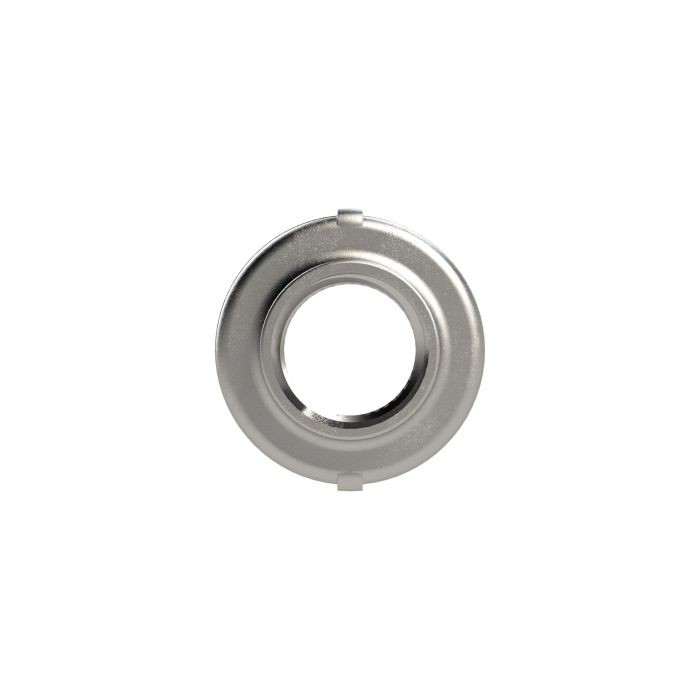

RIEGLER Reducing sleeve round, G 1 IG, G 3/8 IG, ES 1.4408
Type number: REDMG138ES4408
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Reducing sleeve round for pipeline construction, max. 20 bar - Type REDMG138ES4408
The RIEGLER reducing sleeve round, G 1 female, G 3/8 female, ES 1.4408 connects two pipes or fittings with thread - for pressure-tight inline connections. Designed for a maximum operating pressure of 20 bar. Simple inline connection.
Field of application
Typical areas of application: Pipeline construction.
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Working pressure max. | 20 bar |
| Execution | round |
| Exception | no exception |
| CAS No. SVHC 1 | none CAS No. |
| D1 | 39 mm |
| Thread standard | DIN EN ISO 228-1 |
| Internal thread 1 | G 1 |
| Internal thread 2 | G 3/8 |
| Class name | STAINLESS STEEL |
| L1 | 27 mm |
| Material identification | 14408 |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS Article of the Directive | no entry |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
