RIEGLER Mist oiler »variobloc«, PC container, Protec. cage, Size 2, G 3/4
Type number: VN 25 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mist lubricator "variobloc" with PC container and made of die-cast zinc, for compressed air treatment - type VN 25 S
The RIEGLER mist lubricator "variobloc" with PC container and protective cage, BG 2, G 3/4 doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 16 bar. Connection thread G 3/4 - suitable for common industrial standards. The flow rate is 7500 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Polycarbonate tank with protective cage. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Polycarbonate container with protective cage |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature max. | 50 °C |
| Ambient temperature max. | 50 °C |
| Thread | G 3/4 |
| Flow rate | 7500 l/min |
| BG | 2 |
| A | 70 mm |
| B | 224 mm |
| C | 57 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

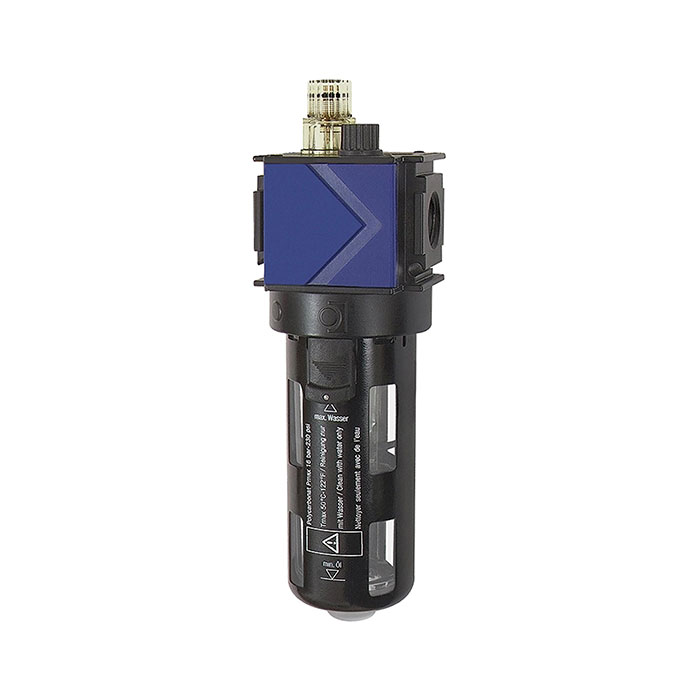

![[124816] RIEGLER Mist oiler »variobloc«, PC container, Protec. cage, Size 1, G 1/4](/web/image/product.template/202423/image_128/%5B124816%5D%20RIEGLER%20Mist%20oiler%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%201%2C%20G%201-4?unique=162d07e)
|
Type number: VN 22 S |
86.35 € | |
![[124817] RIEGLER Mist oiler »variobloc«, PC container, Protec. cage, Size 1, G 3/8](/web/image/product.template/202424/image_128/%5B124817%5D%20RIEGLER%20Mist%20oiler%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%201%2C%20G%203-8?unique=23064b7)
|
Type number: VN 23 S |
86.35 € | |

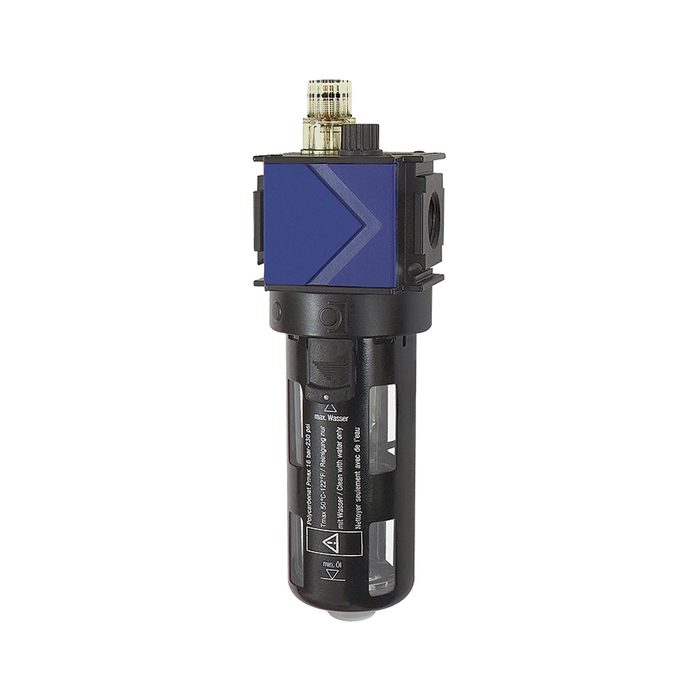

![[124820] RIEGLER Mist oiler »variobloc«, PC container, Protec. cage, Size 2, G 1](/web/image/product.template/202427/image_128/%5B124820%5D%20RIEGLER%20Mist%20oiler%20%C2%BBvariobloc%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%202%2C%20G%201?unique=23064b7)
|
