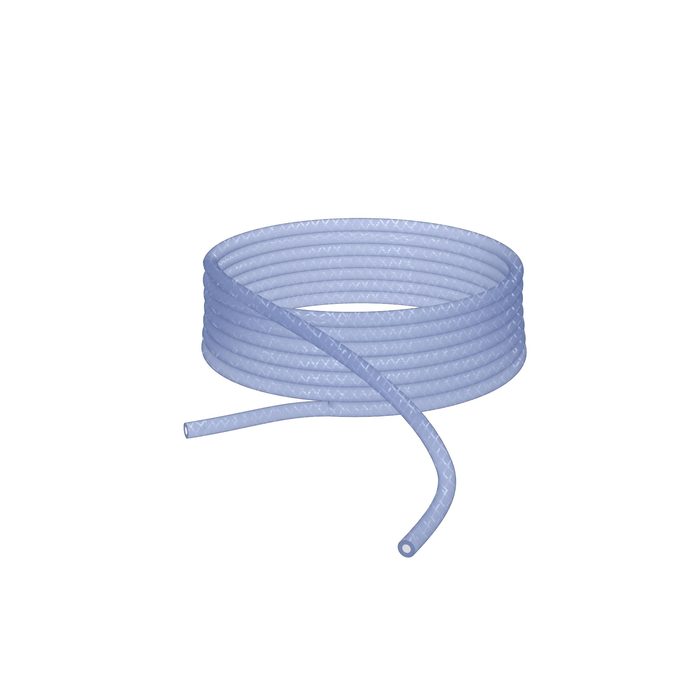

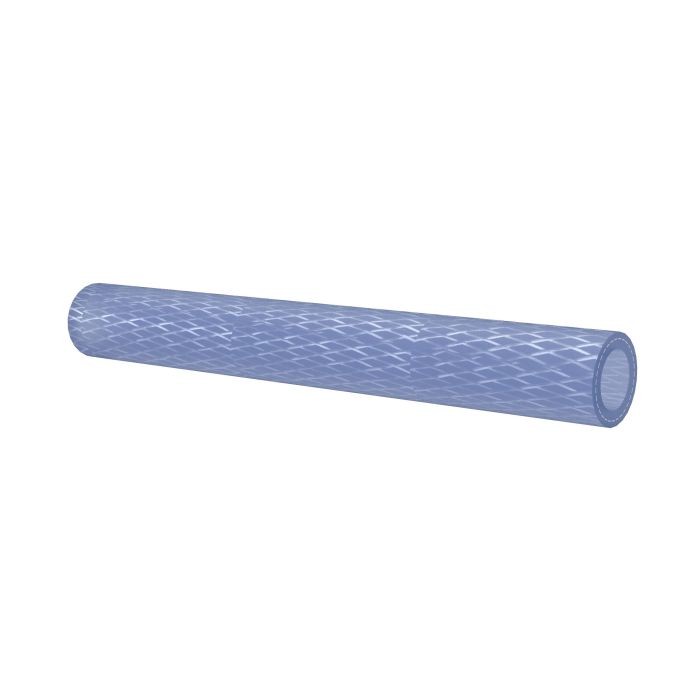

RIEGLER PVC fabric hose, hose-ø 16x10, roll of 25 m
Type number: PGS16X10-25
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
PVC fabric hose, temp. -20 °C to 60 °C, hose ø 16x10, PN at 23 °C max. 15 bar air, 20 bar liquids, roll of 25 m
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Exception | no exception |
| Bending radius min. | 35 mm |
| CAS No. SVHC 1 | none CAS No. |
| Class name | PLUS |
| Max. operating pressure at 23 °C | 15 bar |
| Max. operating pressure liquids at 23 | 20 bar |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS Article of the Directive | no entry |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Roll length | 25 m |
| Outer hose Ø | 16 mm |
| Hose Ø inside | 10 mm |
| Temperature range max. | 60 °C |
| Temperature range min. | -20 °C |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[113584] RIEGLER Hose cutter, for max. hose exterior Ø 17 mm](/web/image/product.template/189458/image_128/%5B113584%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2017%20mm?unique=c0007fd)
|
Type number: 259.555 |
18.75 € | |
![[113585] RIEGLER Hose cutter, for max. hose exterior Ø 26 mm](/web/image/product.template/189460/image_128/%5B113585%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2026%20mm?unique=adc0ce1)
|
Type number: 259.559 |
29.67 € | |

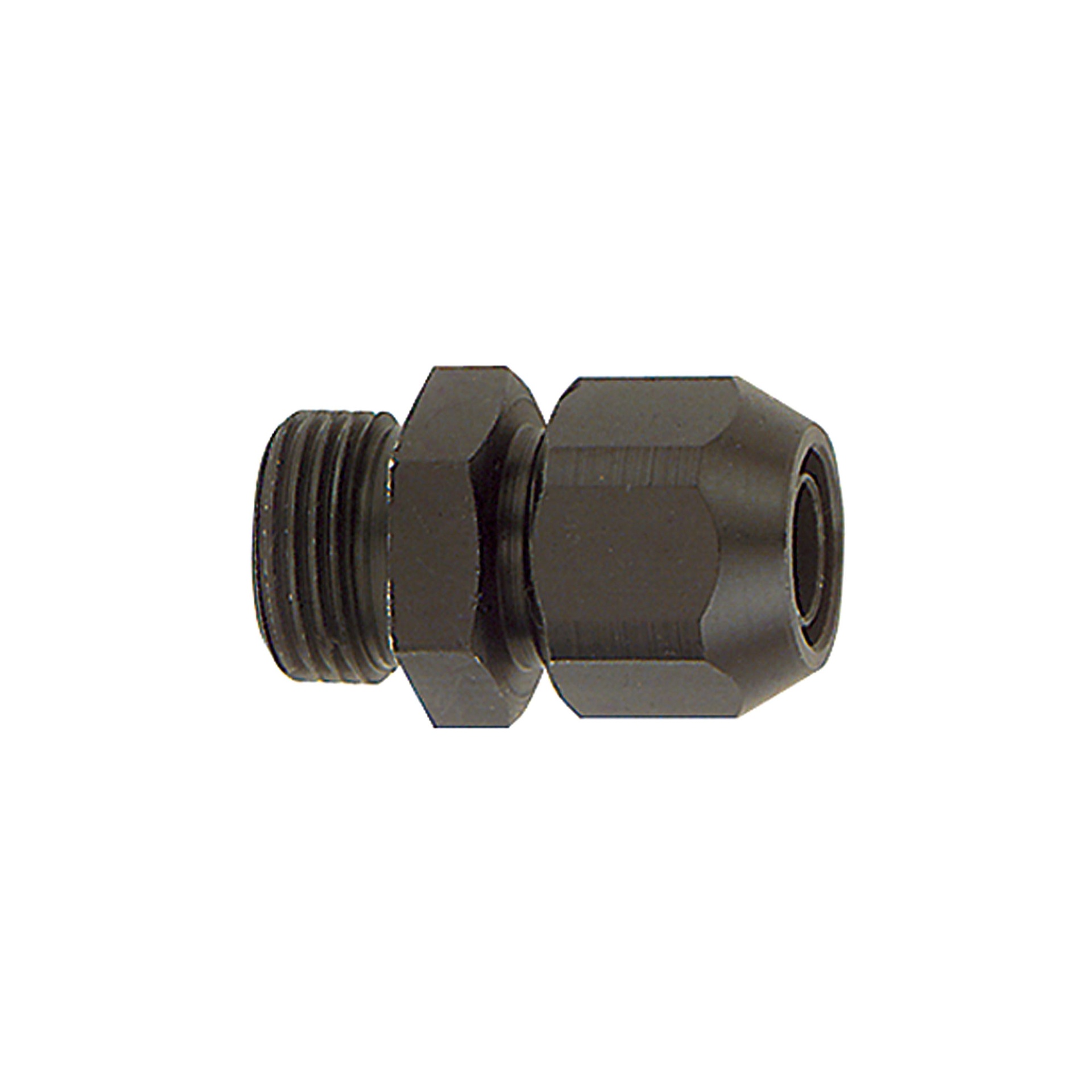

![[113765] RIEGLER Screw-in fitting, Aluminium, for PVC braided hose 16x10, G 1/4](/web/image/product.template/189792/image_128/%5B113765%5D%20RIEGLER%20Screw-in%20fitting%2C%20Aluminium%2C%20for%20PVC%20braided%20hose%2016x10%2C%20G%201-4?unique=7bfab47)
|
Type number: 190/55 |
4.86 € | |
![[113770] RIEGLER Screw-in fitting, Aluminium, for PVC braided hose 16x10, G 3/8](/web/image/product.template/189801/image_128/%5B113770%5D%20RIEGLER%20Screw-in%20fitting%2C%20Aluminium%2C%20for%20PVC%20braided%20hose%2016x10%2C%20G%203-8?unique=9edacfd)
|
Type number: 190/65 |
5.95 € | |
![[113777] RIEGLER Screw-in fitting, Aluminium, for PVC braided hose 16x10, G 1/2](/web/image/product.template/189815/image_128/%5B113777%5D%20RIEGLER%20Screw-in%20fitting%2C%20Aluminium%2C%20for%20PVC%20braided%20hose%2016x10%2C%20G%201-2?unique=27d6d9b)
|
Type number: 190/75 |
7.20 € | |
![[143282] RIEGLER Hose security cable, For tube O.D. 13 - 35 mm, Galvanised steel,](/web/image/product.template/210395/image_128/%5B143282%5D%20RIEGLER%20Hose%20security%20cable%2C%20For%20tube%20O.D.%2013%20-%2035%20mm%2C%20Galvanised%20steel%2C?unique=b340b32)
|
Type number: SSK-1335 |
7.44 € | |
![[179288] RIEGLER Hose cutter, for max. hose exterior Ø 20 mm](/web/image/product.template/216419/image_128/%5B179288%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2020%20mm?unique=79bda99)
|
Typennummer: SAS420 |
49.80 € | |
