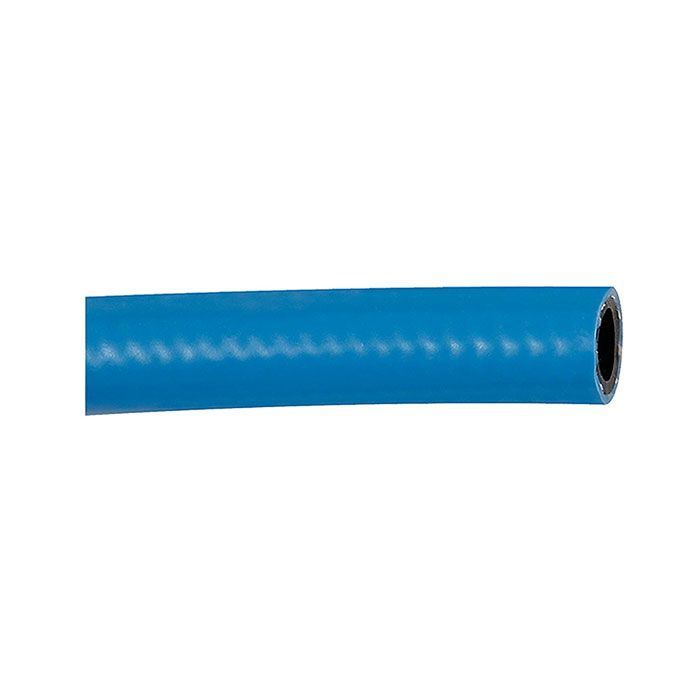

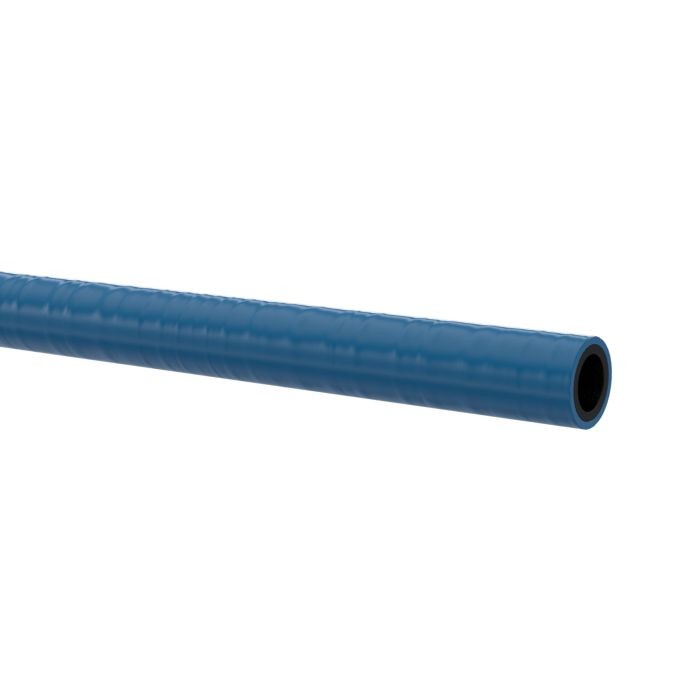

RIEGLER Workshop hose, soft PVC, hose ø 19x12,7, roll length 50 m
Type number: WSS19X12,7
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Workshop hose for compressed air distribution - type WSS19X12.7
The RIEGLER workshop hose, soft PVC, hose ø 19x12.7, roll length 50 m conducts compressed air flexibly and reliably from the compressor to the consumer. The temperature range is between -20 °C and 60 °C. Hose Ø 12.7 mm (inside) / 19 mm (outside). Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Exception | no exception |
| Outer ceiling | Soft PVC, blue |
| Max. operating pressure at 23 °C | 15 bar |
| Bending radius min. | 47 mm |
| CAS No. SVHC 1 | none CAS No. |
| Print carrier | high-strength polyester fabric |
| Class name | EASY |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS Article of the Directive | no entry |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Roll length | 50 m |
| Outer hose Ø | 19 mm |
| Hose Ø inside | 12.7 mm |
| Soul | Soft PVC, black |
| Temperature range max. | 60 °C |
| Temperature range min. | -20 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[129224] RIEGLER Workshop hose, soft PVC, hose ø 11x6,3, roll length 50 m](/web/image/product.template/267940/image_128/%5B129224%5D%20RIEGLER%20Workshop%20hose%2C%20soft%20PVC%2C%20hose%20%C3%B8%2011x6%2C3%2C%20roll%20length%2050%20m?unique=af2ec09)
|
Type number: WSS11X6,3 |
79.34 € | |
![[129225] RIEGLER Workshop hose, soft PVC, hose ø 13x8, roll length 50 m](/web/image/product.template/267947/image_128/%5B129225%5D%20RIEGLER%20Workshop%20hose%2C%20soft%20PVC%2C%20hose%20%C3%B8%2013x8%2C%20roll%20length%2050%20m?unique=cbc9ebf)
|
Type number: WSS13X8 |
87.26 € | |
![[129226] RIEGLER Workshop hose, soft PVC, hose ø 14,5x9, roll length 50 m](/web/image/product.template/267950/image_128/%5B129226%5D%20RIEGLER%20Workshop%20hose%2C%20soft%20PVC%2C%20hose%20%C3%B8%2014%2C5x9%2C%20roll%20length%2050%20m?unique=a1ef564)
|
Type number: WSS14,5X9 |
88.86 € | |

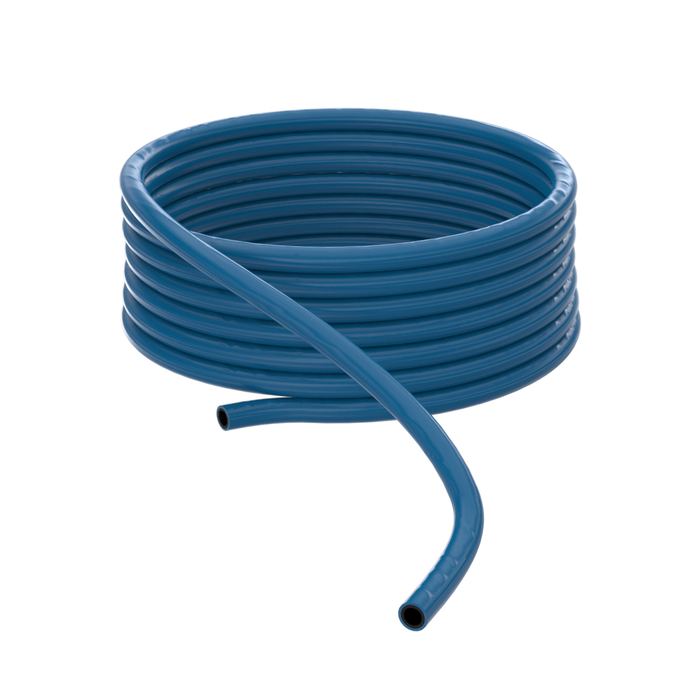

![[129227] RIEGLER Workshop hose, soft PVC, hose ø 15,5x10, roll length 50 m](/web/image/product.template/268004/image_128/%5B129227%5D%20RIEGLER%20Workshop%20hose%2C%20soft%20PVC%2C%20hose%20%C3%B8%2015%2C5x10%2C%20roll%20length%2050%20m?unique=ffd51f4)
|
Type number: WSS15,5X10 |
101.54 € | |
![[129229] RIEGLER Workshop hose, soft PVC, hose ø 23x16, roll length 50 m](/web/image/product.template/281192/image_128/%5B129229%5D%20RIEGLER%20Workshop%20hose%2C%20soft%20PVC%2C%20hose%20%C3%B8%2023x16%2C%20roll%20length%2050%20m?unique=16cb0a2)
|
Type number: WSS23X16 |
184.84 € | |
![[129230] RIEGLER Workshop hose, soft PVC, hose ø 26,5x19, roll length 50 m](/web/image/product.template/268110/image_128/%5B129230%5D%20RIEGLER%20Workshop%20hose%2C%20soft%20PVC%2C%20hose%20%C3%B8%2026%2C5x19%2C%20roll%20length%2050%20m?unique=995a15f)
|
Type number: WSS26,5X19 |
223.72 € | |
![[129231] RIEGLER Workshop hose, soft PVC, hose ø 34x25, roll length 50 m](/web/image/product.template/267787/image_128/%5B129231%5D%20RIEGLER%20Workshop%20hose%2C%20soft%20PVC%2C%20hose%20%C3%B8%2034x25%2C%20roll%20length%2050%20m?unique=7beb9c2)
|
Type number: WSS34X25 |
352.24 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

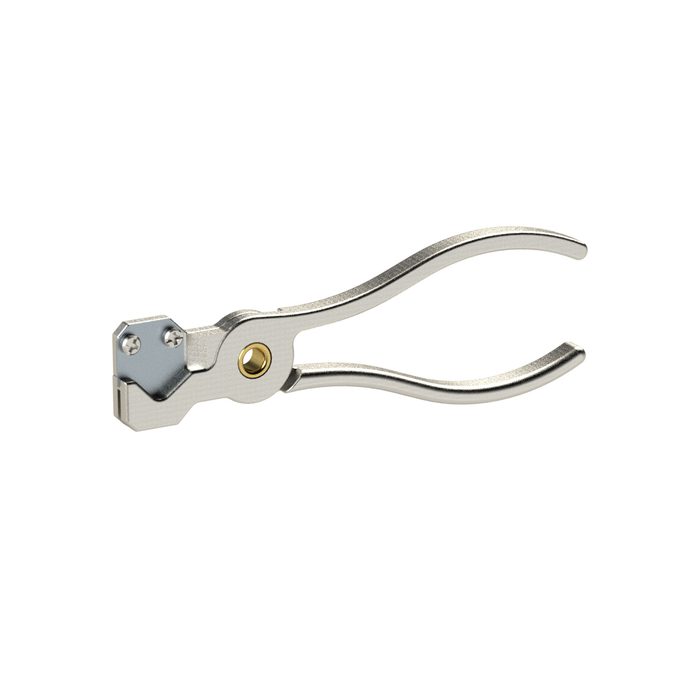

![[113585] RIEGLER Hose cutter, for max. hose exterior Ø 26 mm](/web/image/product.template/189460/image_128/%5B113585%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2026%20mm?unique=94e8e9c)
|
Type number: 259.559 |
29.67 € | |
![[143282] RIEGLER Hose security cable, For tube O.D. 13 - 35 mm, Galvanised steel,](/web/image/product.template/210395/image_128/%5B143282%5D%20RIEGLER%20Hose%20security%20cable%2C%20For%20tube%20O.D.%2013%20-%2035%20mm%2C%20Galvanised%20steel%2C?unique=db137e7)
|
Type number: SSK-1335 |
7.44 € | |

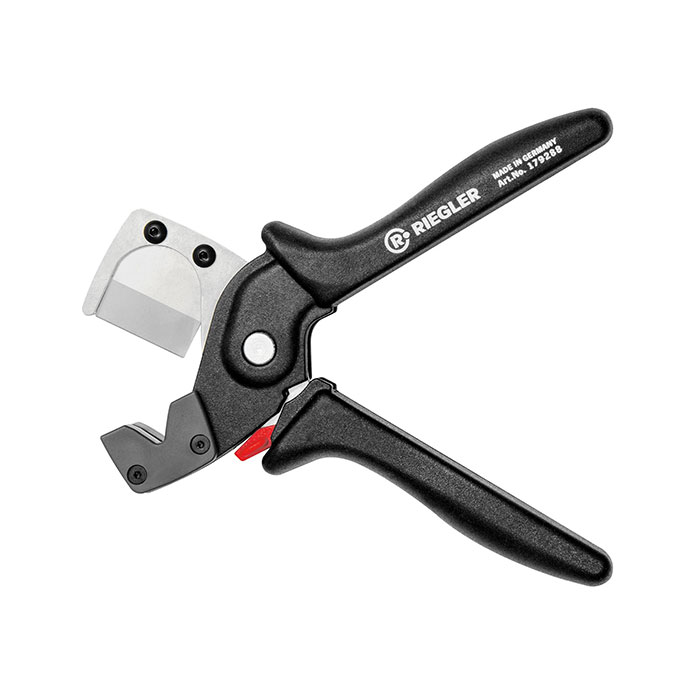

![[179288] RIEGLER Hose cutter, for max. hose exterior Ø 20 mm](/web/image/product.template/216419/image_128/%5B179288%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2020%20mm?unique=feb3da5)
|
