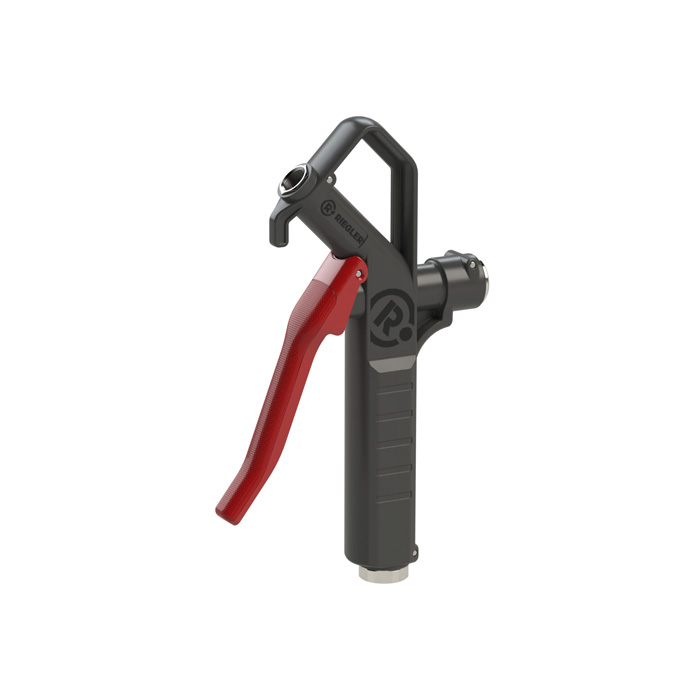

RIEGLER Blow gun, plastic, without nozzle, and attachable, G 1/4 IG
Type number: BPKRODUAG14
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Metering blow gun, plastic, without nozzle, can be connected at the bottom, PN max. 12 bar, G 1/4 IG
| Max. operating pressure | 12 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 90 °C |
| Nozzle | M12x1.25 |
| Connection type | G 1/4 FEMALE THREAD |
| Nozzle type | Without nozzle |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Stand Material Compliance | 45152 |
| Hand lever | Polyamide with glass fiber (PA6 GF30) |
| Gun body | Polypropylene (PP) |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

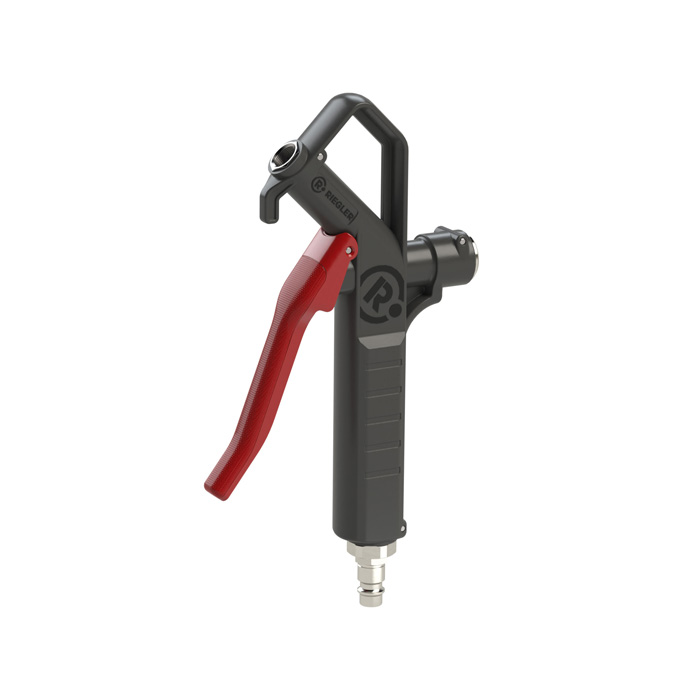

![[129361] RIEGLER Blow gun, plastic, without nozzle, and connecting nipple NW 7.2](/web/image/product.template/281239/image_128/%5B129361%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20without%20nozzle%2C%20and%20connecting%20nipple%20NW%207.2?unique=a000d07)
|
Type number: BPKRODUANW72 |
15.95 € | |
![[129364] RIEGLER Blow gun, plastic, without nozzle, and connecting nozzle LW 13](/web/image/product.template/281242/image_128/%5B129364%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20without%20nozzle%2C%20and%20connecting%20nozzle%20LW%2013?unique=eb21960)
|
Type number: BPKRODUALW13 |
15.95 € | |
![[129362] RIEGLER Blow gun, plastic, without nozzle, and connecting nozzle LW 6](/web/image/product.template/281240/image_128/%5B129362%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20without%20nozzle%2C%20and%20connecting%20nozzle%20LW%206?unique=ebbc2bd)
|
Type number: BPKRODUALW6 |
15.95 € | |
![[129363] RIEGLER Blow gun, plastic, without nozzle, and connecting nozzle LW 9](/web/image/product.template/281241/image_128/%5B129363%5D%20RIEGLER%20Blow%20gun%2C%20plastic%2C%20without%20nozzle%2C%20and%20connecting%20nozzle%20LW%209?unique=b6207f8)
|
Type number: BPKRODUALW9 |
15.95 € | |
