RIEGLER Locking plug "value line", spigot 14 mm, nickel-plated brass
Type number: 58.014-E
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Verschlussstecker »value line«, Steckn. 14 mm, Arbeitsdruck -0,98 bis 16 bar, Betriebstemp. -20 °C bis 80 °C, Messing vernickelt
| Medium | Compressed air |
| Series | value line |
| Max. operating pressure | 16 bar |
| Working pressure min. | -0.98 bar |
| Working pressure max. | 16 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| L1 | 39.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
| Stand Material Compliance | 44621 |
| Socket | 14 mm |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[116302] RIEGLER Locking plug »value line«, Supports 10 mm, nickel-plated brass](/web/image/product.template/201035/image_128/%5B116302%5D%20RIEGLER%20Locking%20plug%20%C2%BBvalue%20line%C2%AB%2C%20Supports%2010%20mm%2C%20nickel-plated%20brass?unique=33ba142)
|
Type number: 58.010-E |
0.62 € | |
![[116303] RIEGLER Locking plug »value line«, Supports 12 mm, nickel-plated brass](/web/image/product.template/201036/image_128/%5B116303%5D%20RIEGLER%20Locking%20plug%20%C2%BBvalue%20line%C2%AB%2C%20Supports%2012%20mm%2C%20nickel-plated%20brass?unique=52b8d88)
|
Type number: 58.012-E |
0.77 € | |
![[116299] RIEGLER Locking plug »value line«, Supports 4 mm, nickel-plated brass](/web/image/product.template/201032/image_128/%5B116299%5D%20RIEGLER%20Locking%20plug%20%C2%BBvalue%20line%C2%AB%2C%20Supports%204%20mm%2C%20nickel-plated%20brass?unique=863da33)
|
Type number: 58.004-E |
0.44 € | |

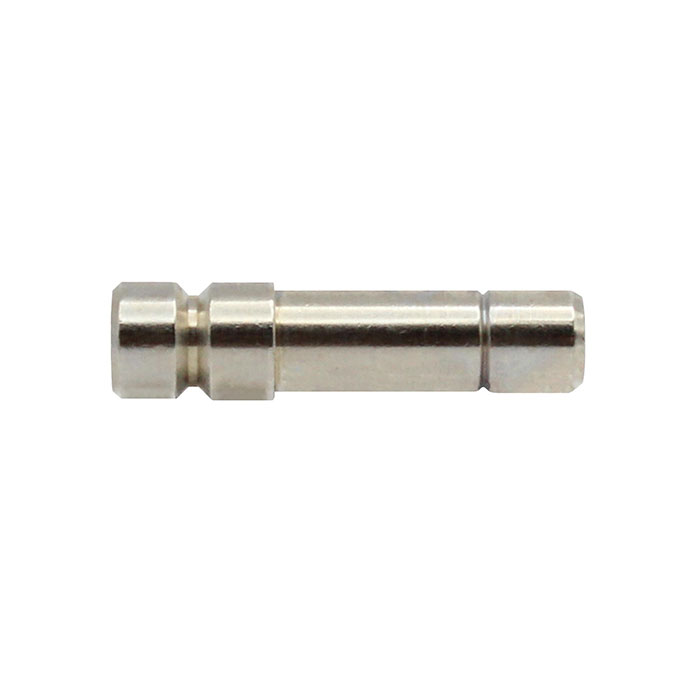

![[116300] RIEGLER Locking plug »value line«, Supports 6 mm, nickel-plated brass](/web/image/product.template/201033/image_128/%5B116300%5D%20RIEGLER%20Locking%20plug%20%C2%BBvalue%20line%C2%AB%2C%20Supports%206%20mm%2C%20nickel-plated%20brass?unique=b747f2c)
|
