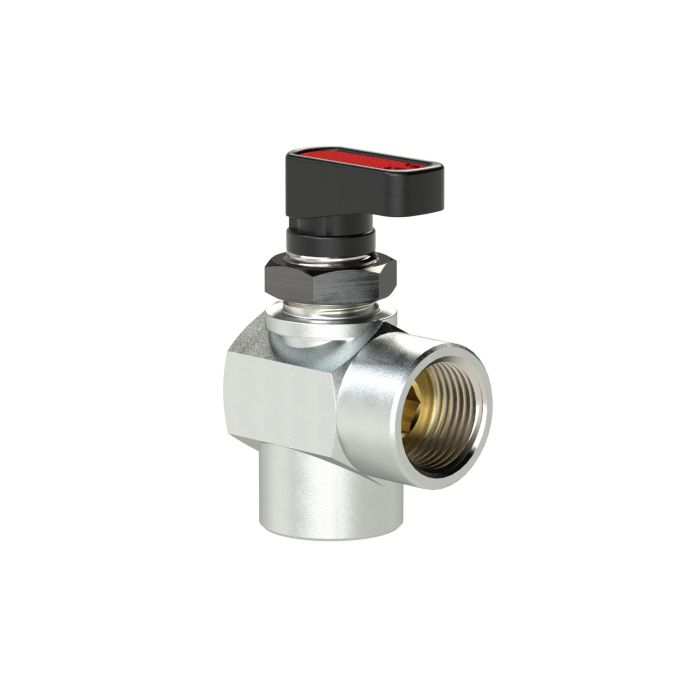

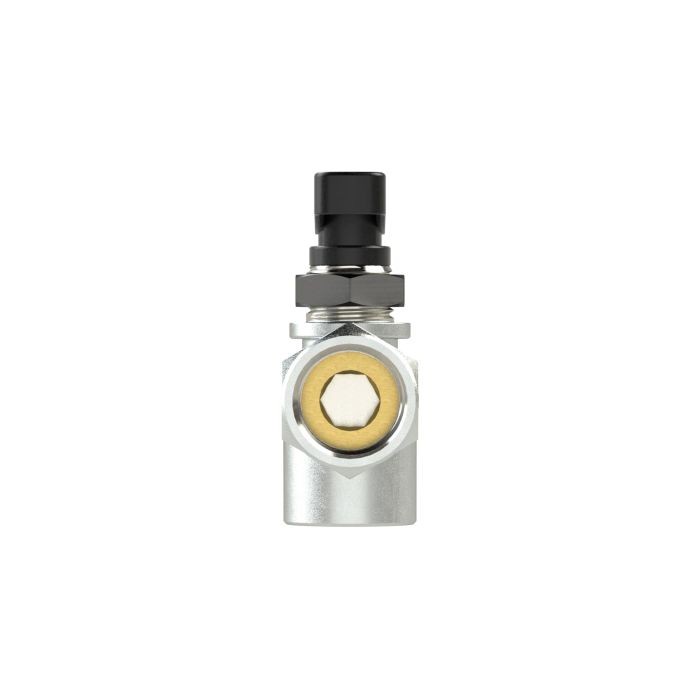

RIEGLER Angled mini ball valve, panel mounting, MS chrome-plated, G 1/4 IG
Type number: 380.02-R
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Angle mini ball valve made of chrome-plated brass, for industrial systems, max. 20 bar - Type 380.02-R
The RIEGLER angled mini ball valve, panel-mounted, MS chrome-plated, G 1/4 female thread opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of chrome-plated brass. The operating pressure range is -0.99 bar to 20 bar. The operating temperature is between -20 °C and 80 °C. Connection thread G 1/4 IG (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Area of application | Compressed air, water, oil |
| Max. operating pressure | 20 bar |
| Operating pressure min. | -0.99 bar |
| Operating temperature max. | 80 °C |
| Operating temperature min. | -20 °C |
| DN | 5 |
| Rotary handle | PA 66 glass fiber reinforced |

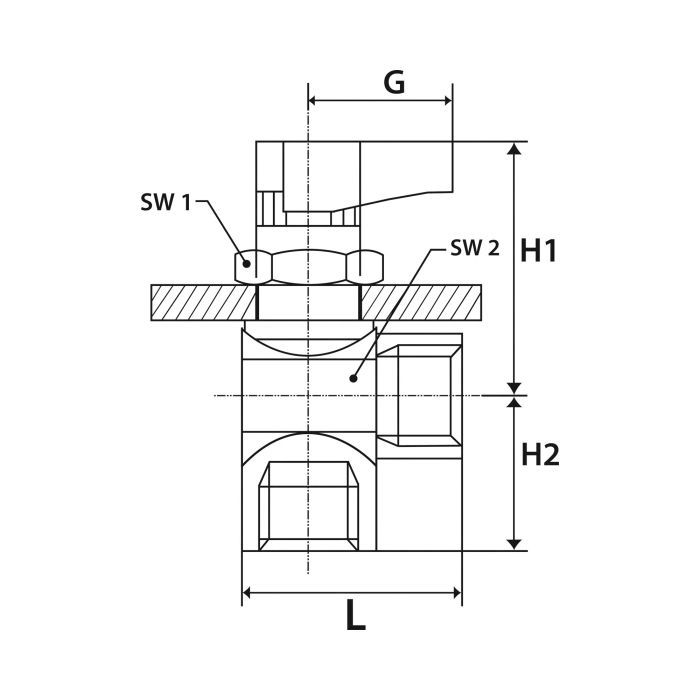

| G | 19 mm |
| Housing | Chrome-plated brass |
| Thread | G 1/4 FEMALE THREAD |
| Thread material | Nickel-plated brass |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| H1 | 33.5 mm |
| H2 | 15.5 mm |
| Class name | PLUS |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| L | 28.5 mm |
| Spindle seal | NBR |
| SW 1 | 17 mm |
| SW 2 | 17 mm |
