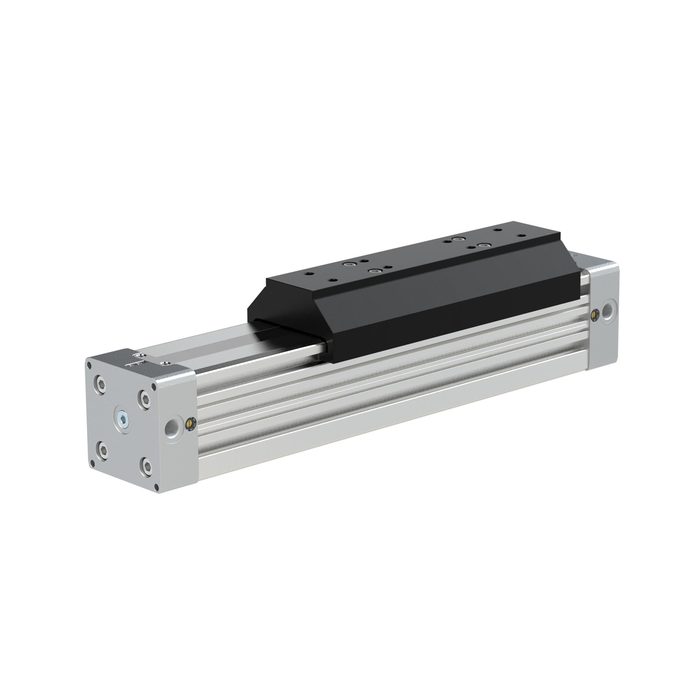

RIEGLER Rodless Cylinder ZRL1S, Ø 40, stroke 600, standard
Type number: ZRL1S.400600
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER ZRL1S Rodless Cylinder (Pneumatic Cylinder) for automation technology, for automation technology – Type ZRL1S.400600
The RIEGLER ZRL1S rodless cylinder, Ø 40, stroke 600, standard, enables long strokes in a compact installation space and precise linear movements. The seals are made of oil-resistant plastic (NBR). The permissible medium temperature ranges from -10 °C to 55 °C. G 1/4 connection—compatible with common industrial standards. Suitable for filtered compressed air (max. 50 µm). The cylinder is operated with filtered compressed air (50 µm), either oiled or unoiled—if using oiled air, ensure continuous lubrication. All variants, including model designations, are listed in the model code in the data sheet; custom versions are available upon request. Each cylinder is custom-manufactured upon receipt of the order and is typically shipped within 5 business days, depending on the quantity. Shipping and packaging costs are calculated on a per-order basis. The compact design saves installation space while delivering full performance.
Scope of Application
Typical applications: Linear actuators, rodless cylinders, and rodless cylinders in compressed air and pneumatic systems.
| Temperature range min. | -10 °C |
| Temperature range max. | 55 °C |
| Medium | Filtered compressed air (max. 50 µm) |
| Working pressure min. | 0.5 bar |
| Working pressure max. | 8 bar |
| Installation position | any |
| Sealing tapes | Stainless steel |
| Piston Ø | 40 mm |
| Function | double-acting |
| Stroke | 600 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 1/4 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
| Magnet | with magnet |
| Damping | with adjustable damping |
| Piston caps and sliding parts | abrasion-resistant plastic |
| Stand Material Compliance | 44621 |
| Air connection | 3-fold on both sides |
| Screws | Steel 10.9 galvanized |
| Load clutch | Rigid |
| Sealing material | Oil-resistant plastic (NBR) |
