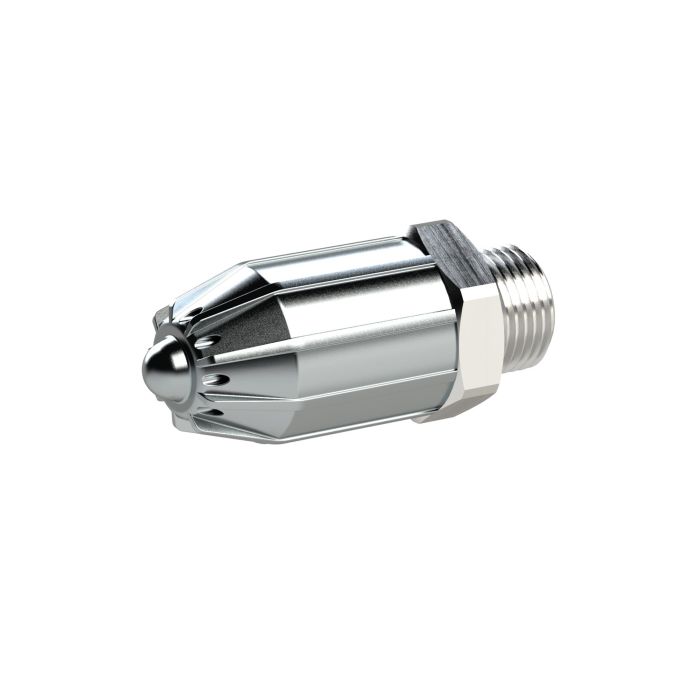

RIEGLER Low-noise round nozzle, M12x1.25, zinc, aluminum, nozzle outer diameter 17 mm
Type number: DLRZAM12X125
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Low-noise round nozzle made of die-cast zinc, aluminum, for compressed air cleaning, M12x1.25 - type DLRZAM12X125
The RIEGLER low-noise round nozzle, M12x1.25, zinc, aluminum, nozzle outer diameter 17 mm extends blowguns with special nozzle shapes for cleaning, drying and cooling. The housing is made of die-cast zinc, aluminum. Connection thread M12x1.25 - suitable for common industry standards. Wide range of nozzle shapes for every application.
Field of application
Typical areas of application: Compressed air cleaning, drying and targeted air routing.
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Exception | no exception |
| CAS No. SVHC 1 | none CAS No. |
| Diagram | 6 |
| Nozzles outer Ø | 17 mm |
| Nozzle type | Low-noise round nozzle |
| Thread | M12x1.25 |
| Length | 41 mm |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS Article of the Directive | no entry |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Material | Zinc die-cast, aluminum |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

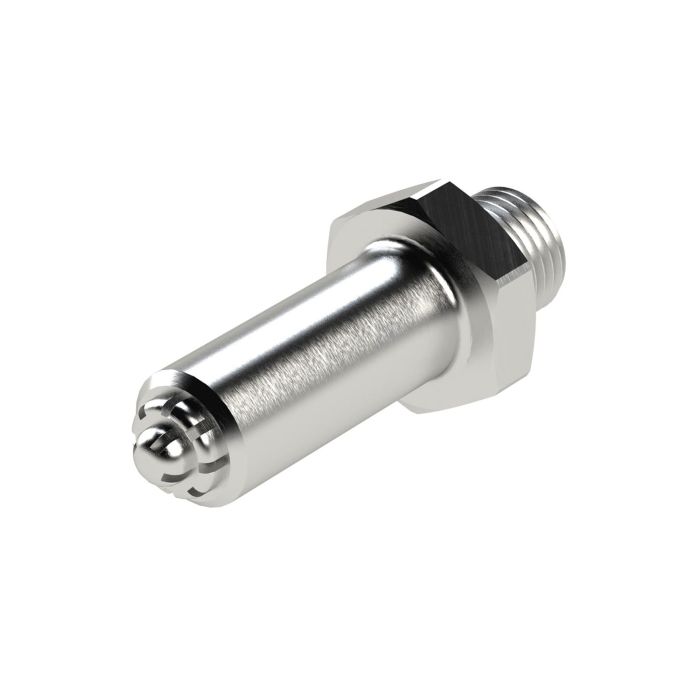

![[206348] RIEGLER Low-noise round nozzle, M12x1.25, aluminum, nozzle outer diameter 12.5 mm](/web/image/product.template/267999/image_128/%5B206348%5D%20RIEGLER%20Low-noise%20round%20nozzle%2C%20M12x1.25%2C%20aluminum%2C%20nozzle%20outer%20diameter%2012.5%20mm?unique=4f5131c)
|
Typennummer: 22.202-2 |
24.76 € | |

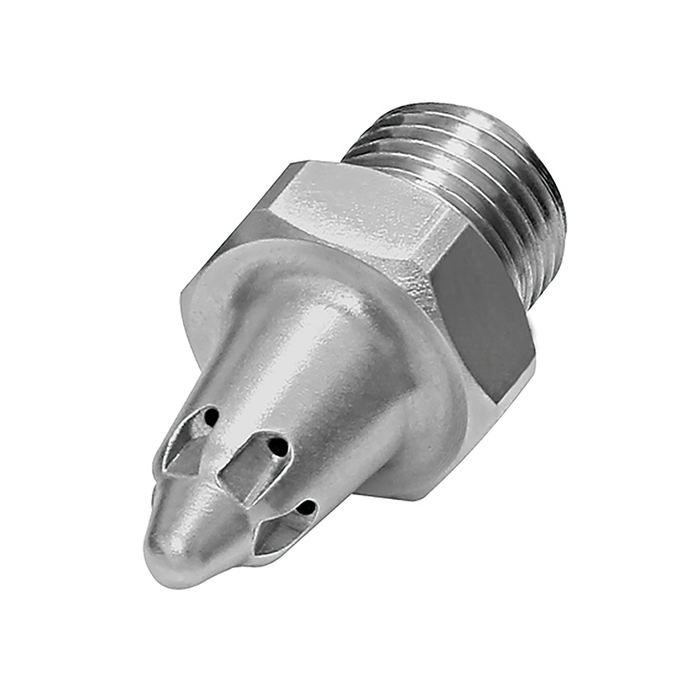

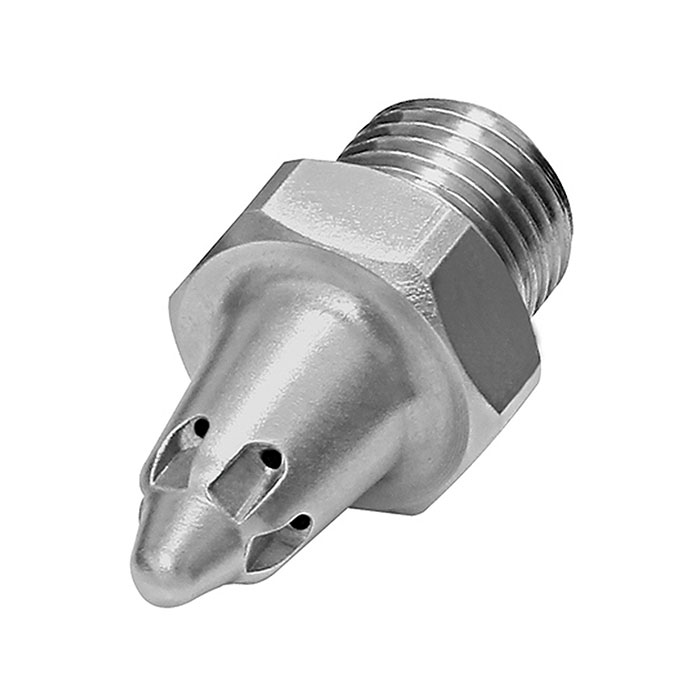

![[114361] RIEGLER Low noise round nozzle, M12x1.25, Nozzles-exterior Ø 11 mm](/web/image/product.template/190888/image_128/%5B114361%5D%20RIEGLER%20Low%20noise%20round%20nozzle%2C%20M12x1.25%2C%20Nozzles-exterior%20%C3%98%2011%20mm?unique=f45634a)
|
Type number: 22.206 |
11.71 € | |
![[114356] RIEGLER Low noise round nozzle, M12x1.25, Nozzles-exterior Ø 11 mm](/web/image/product.template/190879/image_128/%5B114356%5D%20RIEGLER%20Low%20noise%20round%20nozzle%2C%20M12x1.25%2C%20Nozzles-exterior%20%C3%98%2011%20mm?unique=a0de704)
|
Type number: 22.201 |
23.32 € | |

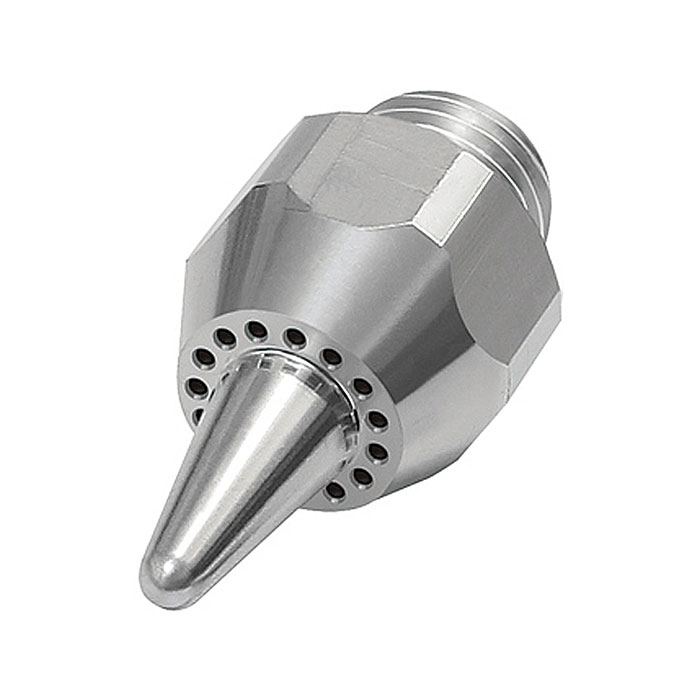

![[114358] RIEGLER Low noise round nozzle, M12x1.25, Nozzles-exterior Ø 13 mm](/web/image/product.template/190882/image_128/%5B114358%5D%20RIEGLER%20Low%20noise%20round%20nozzle%2C%20M12x1.25%2C%20Nozzles-exterior%20%C3%98%2013%20mm?unique=cdaa390)
|
Type number: 22.203 |
13.79 € | |
![[114360] RIEGLER Low noise round nozzle, M12x1.25, Nozzles-exterior Ø 17 mm](/web/image/product.template/190886/image_128/%5B114360%5D%20RIEGLER%20Low%20noise%20round%20nozzle%2C%20M12x1.25%2C%20Nozzles-exterior%20%C3%98%2017%20mm?unique=8d634ae)
|
Type number: 22.205 |
10.58 € | |

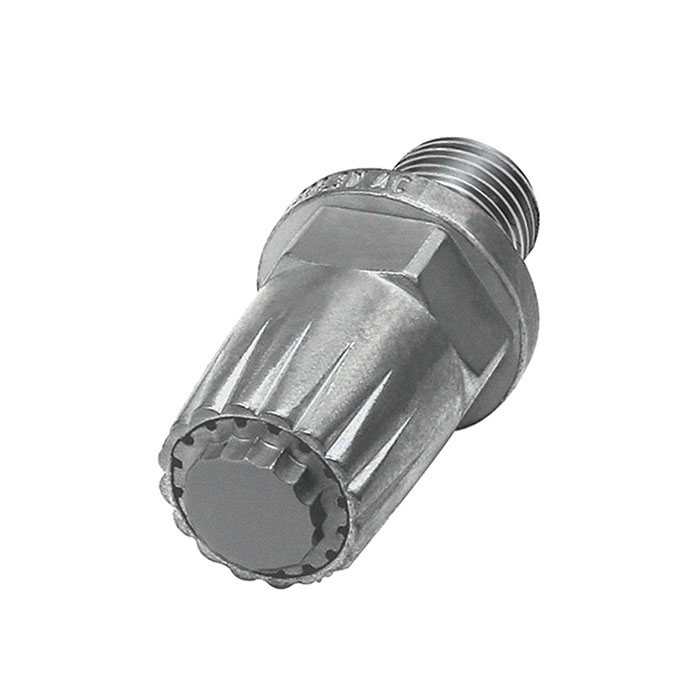

![[114362] RIEGLER Low noise round nozzle, M12x1.25, Nozzles-exterior Ø 19 mm](/web/image/product.template/190890/image_128/%5B114362%5D%20RIEGLER%20Low%20noise%20round%20nozzle%2C%20M12x1.25%2C%20Nozzles-exterior%20%C3%98%2019%20mm?unique=14a5ddd)
|
Type number: 22.207 |
13.91 € | |

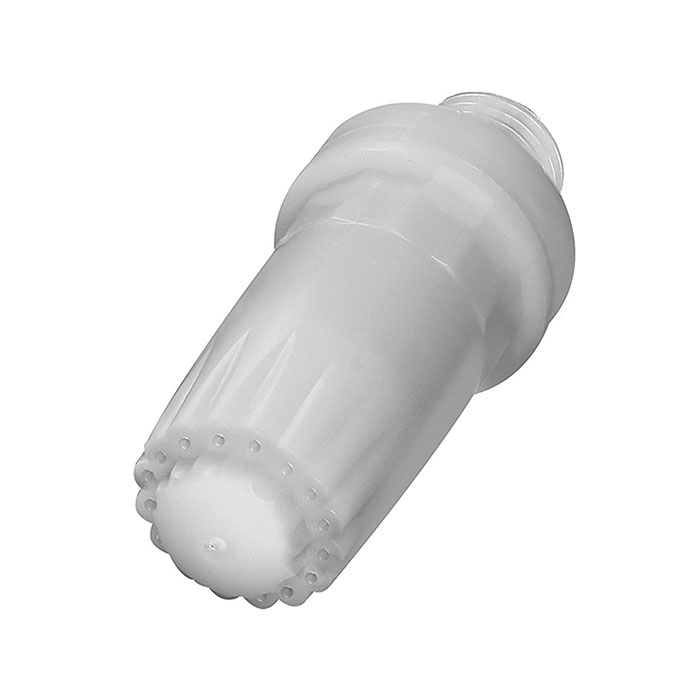

![[114363] RIEGLER Low noise round nozzle, M12x1.25, Nozzles-exterior Ø 19 mm](/web/image/product.template/190891/image_128/%5B114363%5D%20RIEGLER%20Low%20noise%20round%20nozzle%2C%20M12x1.25%2C%20Nozzles-exterior%20%C3%98%2019%20mm?unique=4af104c)
|
Type number: 22.208 |
8.57 € | |
