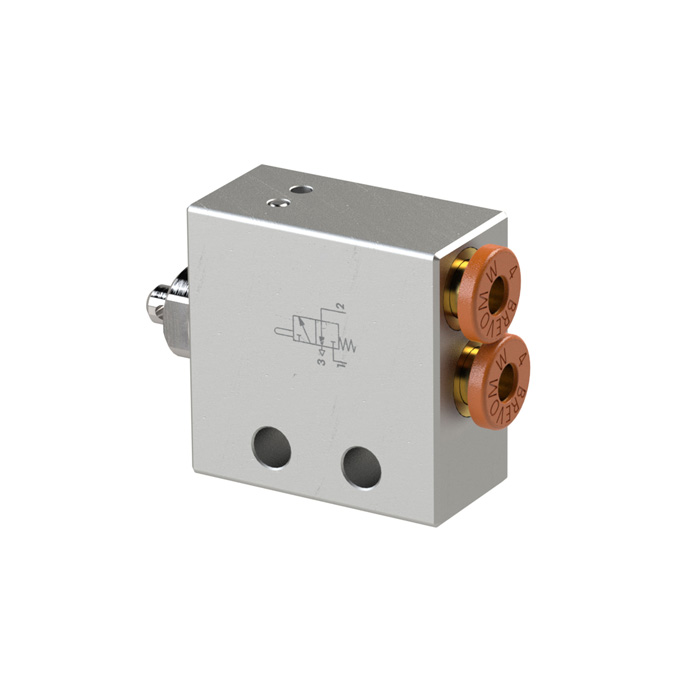

RIEGLER 3/2-way miniature valve, mechanical, plunger, NC, 4 mm rear
Type number: 511.131-H
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-way miniature valve, mechanical, plunger, NC, connection 4 mm at rear, operating pressure 0.5 - 10 bar, operating temperature -10 °C to 60 °C
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Valves VME series |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 10 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Spring | stainless steel |
| Actuating pressure at 6 bar | 8 N |
| Valve body | Aluminum |
| Push button | Nickel-plated brass |
| Function | 3/2 NC |
| Actuation | monostable |
| Nominal Ø | 2.5 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | Push-in connection Ø 4 mm at the rear |
| RoHS material information | RoHS compliant |
| Flow_1 | 35 Nl/min |
| Flow_2 | 60 Nl/min |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | no SVHC substance |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | PLUS |
| Stand Material Compliance | 45169 |
| Flow rate measurement 1 | Flow rate at 6 bar and ∆p 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
