RIEGLER Safety coupling NW 7,8, Typ SEK, nickel-plated brass, G 3/8 AG
Type number: SEKMSNG38AG
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Safety coupling NW 7.8, type SEK, nickel-plated brass, G 3/8 AG, operating pressure -0.95-35 bar, medium/ambient temp. -20 °C to 60 °C
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.04 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Exception | 6c |
| Operating pressure | -0.95 - 35 bar, max. 10 bar when engaging/disengaging |
| CAS No. SVHC 1 | 7439-92-1 |
| Sealing material | NBR |
| Flow rate | 1350 l/min (air) |
| Flow rate measurement | at 6 bar and Î"<sub>p</sub> = 1 bar |
| Spring | Stainless steel |
| Housing | Nickel-plated brass |
| Sleeve | Nickel-plated brass |
| Class name | EASY |
| Ball | Stainless steel |
| Length | 44 mm |
| NW | 78 |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| SW | 22 mm |
| Valve body | Nickel-plated brass |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[129968] RIEGLER Safety coupling NW 7,8, Typ SEK, nickel-plated brass, G 1/2 AG](/web/image/product.template/267890/image_128/%5B129968%5D%20RIEGLER%20Safety%20coupling%20NW%207%2C8%2C%20Typ%20SEK%2C%20nickel-plated%20brass%2C%20G%201-2%20AG?unique=1bae7cf)
|
Type number: SEKMSNG12AG |
15.91 € | |

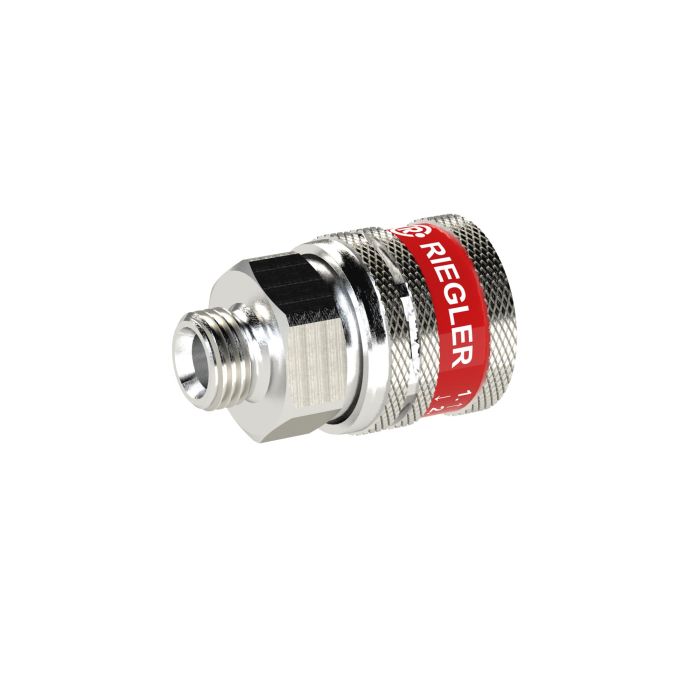

![[129966] RIEGLER Safety coupling NW 7,8, Typ SEK, nickel-plated brass, G 1/4 AG](/web/image/product.template/267877/image_128/%5B129966%5D%20RIEGLER%20Safety%20coupling%20NW%207%2C8%2C%20Typ%20SEK%2C%20nickel-plated%20brass%2C%20G%201-4%20AG?unique=d21fd14)
|
Type number: SEKMSNG14AG |
15.42 € | |
