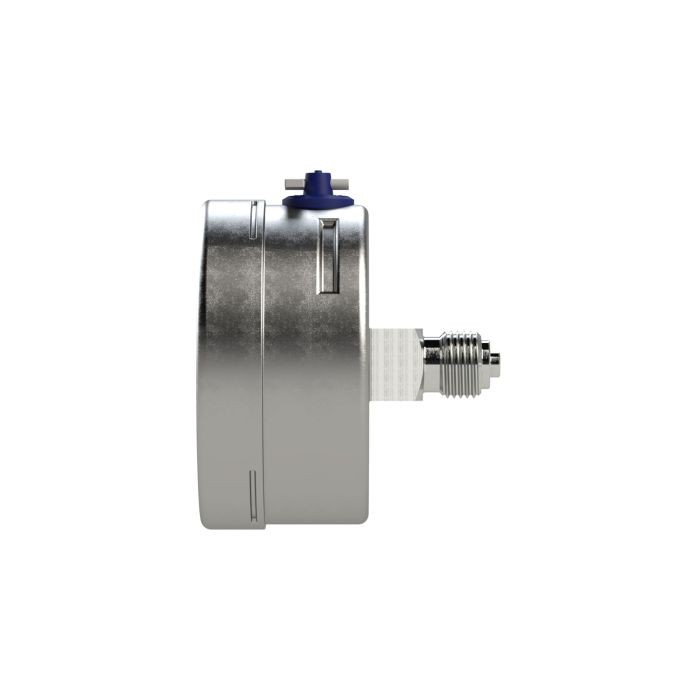

RIEGLER Pressure gauge, CrNi steel, rear eccentric, G 1/2, -1/0 bar, Ø100
Type number: 4091
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
131496EAN :
4047322084925Category :
Stainless Steel Pressure GaugesWeight :
0.54 kgRIEGLER Pressure gauge made of stainless steel, for pressure measurement, G 1/2 - type 4091
The RIEGLER pressure gauge, stainless steel, G 1/2 rear eccentric, -1 / 0.0 bar, Ø 100 indicates the current system pressure reliably and precisely. The housing is made of stainless steel. The permissible medium temperature is between -40 °C and 200 °C. G 1/2 connection thread - suitable for common industry standards. Reliable pressure indicator for safe system control.
Field of application
Typical areas of application: Pressure monitoring in compressed air, hydraulic and process systems.
| Medium temperature min. | -40 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -40 °C |
| Ambient temperature max. | 60 °C |
| Material | CrNi steel |
| Type | 232.50 |
| Viewing window | Multi-layer safety glass |
| Measuring range min. bar | -1 |
| Measuring range max. bar | 0 |
| Diameter | 100 mm |
| Graduation value in the bar range | 0.02 bar |
| Connection | G 1/2 |
| Quality class | 1 |
| Lower / Upper measuring range limit | Vacuum |
| Connection position | rear, eccentric |
| Class name | STAINLESS STEEL |
| Process connection material | CrNi steel |
