RIEGLER Screw-in hose connector, M12x1.5, for hose I.D. 13 mm, AF 17
Type number: MS239M1213
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw-in hose nozzle made of brass CW614N, for pneumatic installation, max. 25 bar - type MS239M1213
The RIEGLER screw-in hose nozzle, M12x1.5, f. hose LW 13 mm, SW 17, MS permanently connects hoses with threaded connections - for reliable media supply. The housing is made of brass CW614N. Designed for a maximum operating pressure of 25 bar. M12x1.5 connection thread - suitable for common industry standards. Secure hose fixing for pressure-resistant connections.
Field of application
Typical areas of application: Compressed air, water, technical gases and industrial media.
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| Thread | M12x1.5 |
| SW | 17 mm |
| for hose | LW 13 mm |
| L1 | 42 mm |
| L2 | 9 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[132502] RIEGLER Screw-in hose connector, M10x1, for hose I.D. 9 mm, AF 14](/web/image/product.template/202741/image_128/%5B132502%5D%20RIEGLER%20Screw-in%20hose%20connector%2C%20M10x1%2C%20for%20hose%20I.D.%209%20mm%2C%20AF%2014?unique=4a15324)
|
Type number: MS239M1009 |
0.94 € | |
![[132504] RIEGLER Screw-in hose connector, M14x1.5, for hose I.D. 13 mm, AF 17](/web/image/product.template/202743/image_128/%5B132504%5D%20RIEGLER%20Screw-in%20hose%20connector%2C%20M14x1.5%2C%20for%20hose%20I.D.%2013%20mm%2C%20AF%2017?unique=e789e7b)
|
Type number: MS239M1413 |
1.57 € | |
![[132493] RIEGLER Screw-in hose connector, M3, for hose I.D. 2 mm, AF 5](/web/image/product.template/202735/image_128/%5B132493%5D%20RIEGLER%20Screw-in%20hose%20connector%2C%20M3%2C%20for%20hose%20I.D.%202%20mm%2C%20AF%205?unique=7ddf7d0)
|
Type number: MS239M302 |
0.70 € | |
![[132496] RIEGLER Screw-in hose connector, M3, for hose I.D. 3 mm, AF 5](/web/image/product.template/202736/image_128/%5B132496%5D%20RIEGLER%20Screw-in%20hose%20connector%2C%20M3%2C%20for%20hose%20I.D.%203%20mm%2C%20AF%205?unique=0782c8a)
|
Type number: MS239M303 |
0.71 € | |
![[132497] RIEGLER Screw-in hose connector, M5, for hose I.D. 3 mm, AF 7](/web/image/product.template/202737/image_128/%5B132497%5D%20RIEGLER%20Screw-in%20hose%20connector%2C%20M5%2C%20for%20hose%20I.D.%203%20mm%2C%20AF%207?unique=39c9474)
|
Type number: MS239M503 |
0.75 € | |
![[132498] RIEGLER Screw-in hose connector, M5, for hose I.D. 4 mm, AF 7](/web/image/product.template/202738/image_128/%5B132498%5D%20RIEGLER%20Screw-in%20hose%20connector%2C%20M5%2C%20for%20hose%20I.D.%204%20mm%2C%20AF%207?unique=cf3579b)
|
Type number: MS239M504 |
0.75 € | |

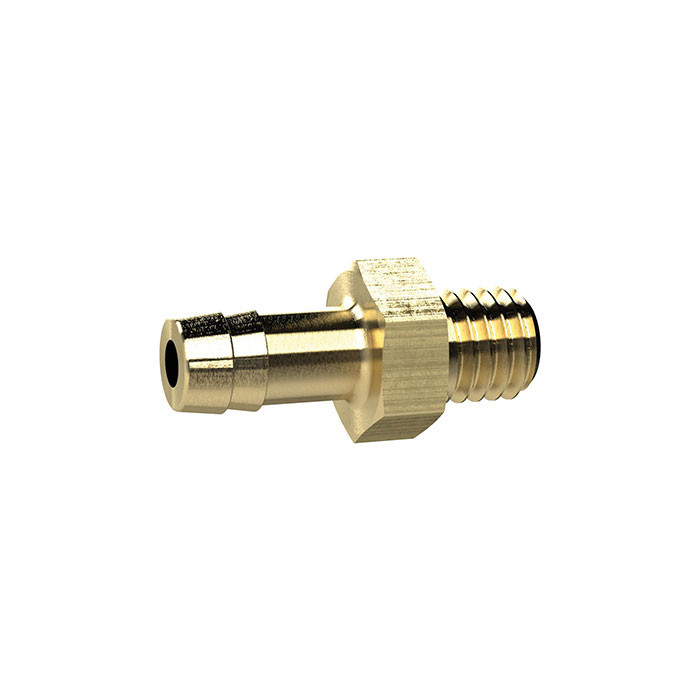

![[132500] RIEGLER Screw-in hose connector, M5, for hose I.D. 6 mm, AF 7](/web/image/product.template/202739/image_128/%5B132500%5D%20RIEGLER%20Screw-in%20hose%20connector%2C%20M5%2C%20for%20hose%20I.D.%206%20mm%2C%20AF%207?unique=9677282)
|
