RIEGLER Screw-in hose connector, G 3/8 left, for hose I.D. 6 mm, AF 19

Price:

1.38 €

English (US)
  2. Shop
  3. Male Hose Fittings
  4. RIEGLER Screw-in hose connector, G 3/8 left, for hose I.D. 6 mm, AF 19
RIEGLER Screw-in hose connector, G 1/2 o., for hose I.D. 13, AF 24
RIEGLER Screw-in hose connector, G 1/2 o., for hose I.D. 13, AF 24
13.09 € 13.09 €
RIEGLER Screw-in hose connector, G 1/8 o., for hose I.D. 6, AF 14
RIEGLER Screw-in hose connector, G 1/8 o., for hose I.D. 6, AF 14
10.00 € 10.00 €

RIEGLER Screw-in hose connector, G 3/8 left, for hose I.D. 6 mm, AF 19

https://www.filcom-technik.de/web/image/product.template/202745/image_1920?unique=36061ee

Type number: MS239LH3806

1.38 € 1.3800000000000001 EUR 1.38 € VAT Included

2.90 € VAT Included


Price tiers visible after login - register now and get your benefits!
  • Brand

This combination does not exist.


Price Tiers

from 110 € free shipping Details shipping costs
Contact Us
Riegler

Riegler

The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

Product no. :

132507

EAN :

4047322471183

Category :

Male Hose Fittings

Weight :

0.02 kg

RIEGLER Brass screw-in hose nozzle CW614N, for pneumatic installation, max. 25 bar - type MS239LH3806

The RIEGLER screw-in hose nozzle, G 3/8 left, for hose LW 6 mm, SW19, MS permanently connects hoses to threaded connections - for reliable media supply. The housing is made of brass CW614N. Designed for a maximum operating pressure of 25 bar. Connection thread G 3/8 left - suitable for common industry standards. Secure hose fixing for pressure-resistant connections.

Field of application

Typical areas of application: Compressed air, water, technical gases and industrial media.

Working pressure max. 25 bar
Material Brass CW614N
Operating temperature max. 150 °C
Thread G 3/8 left
SW 19 mm
for hose LW 6 mm
L1 40 mm
L2 9 mm
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification CW614N
Class name PLUS

Variants / Alternatives

Product Price

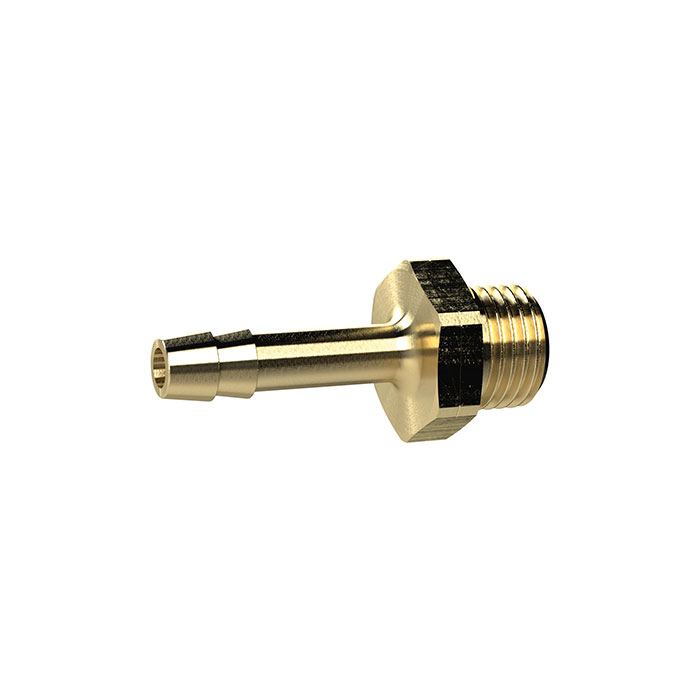

[132505] RIEGLER Screw-in hose connector, G 1/4 left, for hose I.D. 6 mm, AF 17

Type number: MS239LH1406

 1.20 €
[132510] RIEGLER Screw-in hose connector, G 3/8 left, for hose I.D. 9 mm, AF 19

Type number: MS239LH3809

 1.43 €
​
