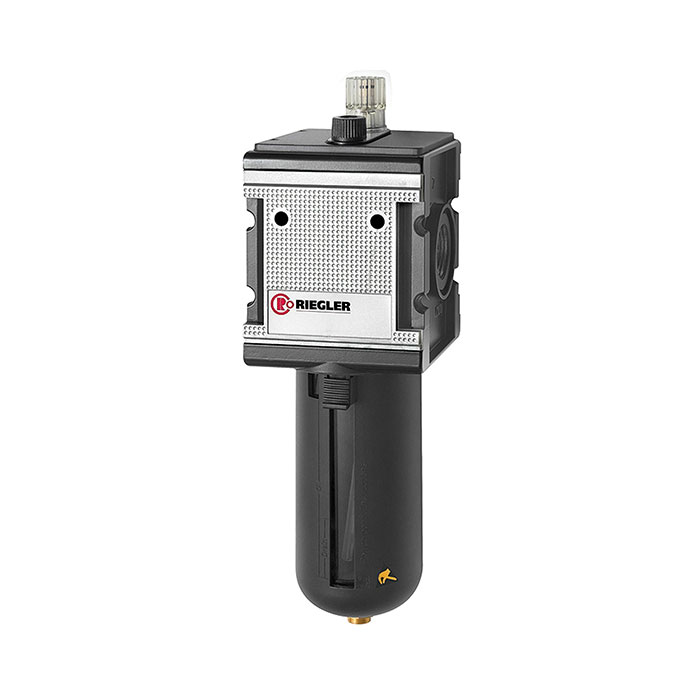

RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 4, G 3/4
Type number: L 44 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Mist lubricator "multifix" with polycarbonate tank and protective cage, BG 4, G 3/4, max. inlet pressure 16 bar, max. ambient temperature 60 °C
| Inlet pressure max. | 16 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Polycarbonate container with protective cage |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 3/4 |
| Flow rate | 14000 l/min |
| DN | 20 |
| BG | 4 |
| A | 85 mm |
| B | 268 mm |
| C | 86 mm |
| D | 182 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100556] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 1, G 1/4](/web/image/product.template/139991/image_128/%5B100556%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%201%2C%20G%201-4?unique=a47f1f3)
|
Type number: L 11 S |
40.64 € | |

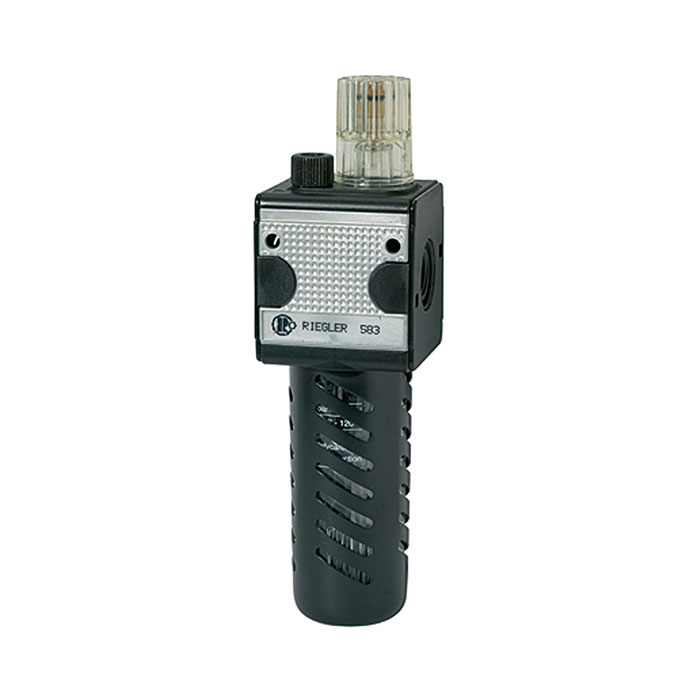

![[100557] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 1, G 3/8](/web/image/product.template/139992/image_128/%5B100557%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%201%2C%20G%203-8?unique=e577bd2)
|
Type number: L 12 S |
40.64 € | |
![[100558] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 3, G 1/2](/web/image/product.template/139993/image_128/%5B100558%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%203%2C%20G%201-2?unique=48a7bcf)
|
Type number: L 33 S |
60.40 € | |
![[100559] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 3, G 3/4](/web/image/product.template/139994/image_128/%5B100559%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%203%2C%20G%203-4?unique=de22503)
|
Type number: L 34 S |
60.40 € | |
![[133120] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 4, G 1](/web/image/product.template/202770/image_128/%5B133120%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%204%2C%20G%201?unique=c7b2ddd)
|
Type number: L 45 S |
107.53 € | |
![[100560] RIEGLER Mist oiler »multifix«, PC container, Protec. cage, Size 5, G 1](/web/image/product.template/139995/image_128/%5B100560%5D%20RIEGLER%20Mist%20oiler%20%C2%BBmultifix%C2%AB%2C%20PC%20container%2C%20Protec.%20cage%2C%20Size%205%2C%20G%201?unique=b77c50f)
|
Type number: L 55 S |
146.10 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=f58d385)
|
Type number: 32 |
34.09 € | |
![[100393] RIEGLER Drip cap metal](/web/image/product.template/139827/image_128/%5B100393%5D%20RIEGLER%20Drip%20cap%20metal?unique=6ed47aa)
|
Type number: 1233.7.909 |
18.71 € | |

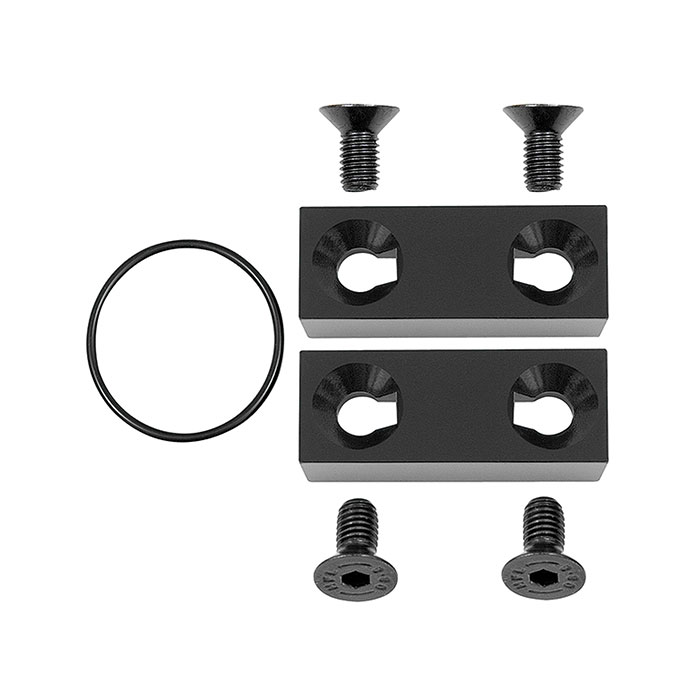

![[135857] RIEGLER Coupling package for blocking several components, incl. O-ring](/web/image/product.template/206213/image_128/%5B135857%5D%20RIEGLER%20Coupling%20package%20for%20blocking%20several%20components%2C%20incl.%20O-ring?unique=5628843)
|
Type number: KP 45 |
7.75 € | |

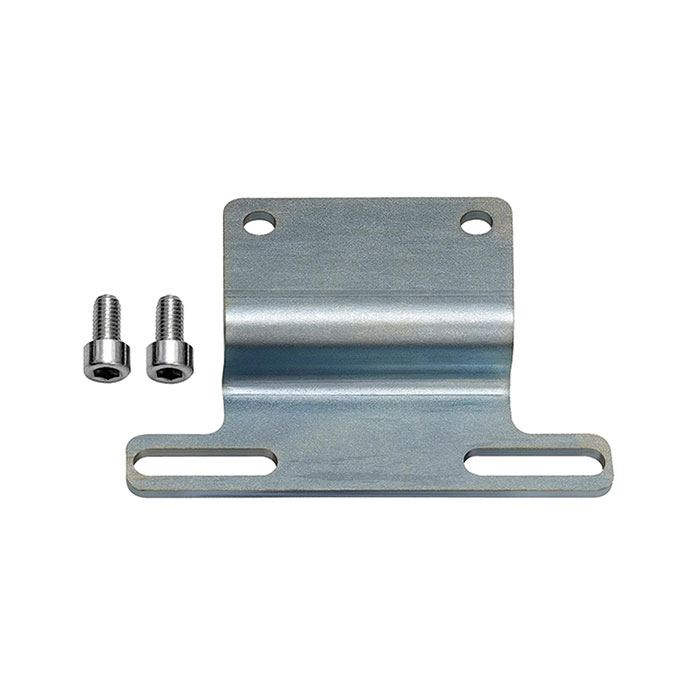

![[135858] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 4, G 3/4 and G 1](/web/image/product.template/206214/image_128/%5B135858%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%204%2C%20G%203-4%20and%20G%201?unique=350496c)
|
Type number: ZW 45 |
13.19 € | |

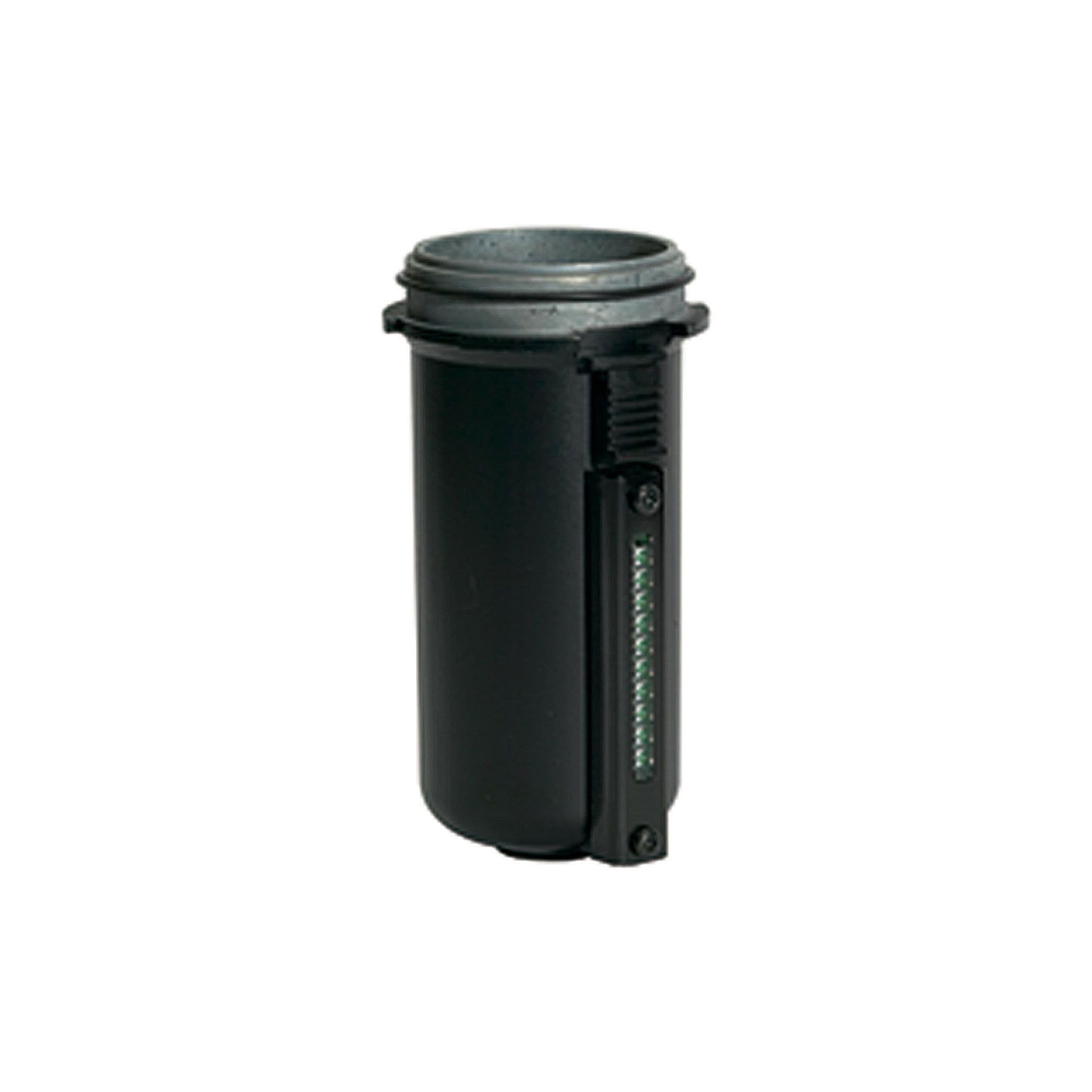

![[135864] RIEGLER Metal container with viewing tube, incl. O-ring](/web/image/product.template/206220/image_128/%5B135864%5D%20RIEGLER%20Metal%20container%20with%20viewing%20tube%2C%20incl.%20O-ring?unique=aa9f410)
|
Type number: MS 45 NS |
44.54 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

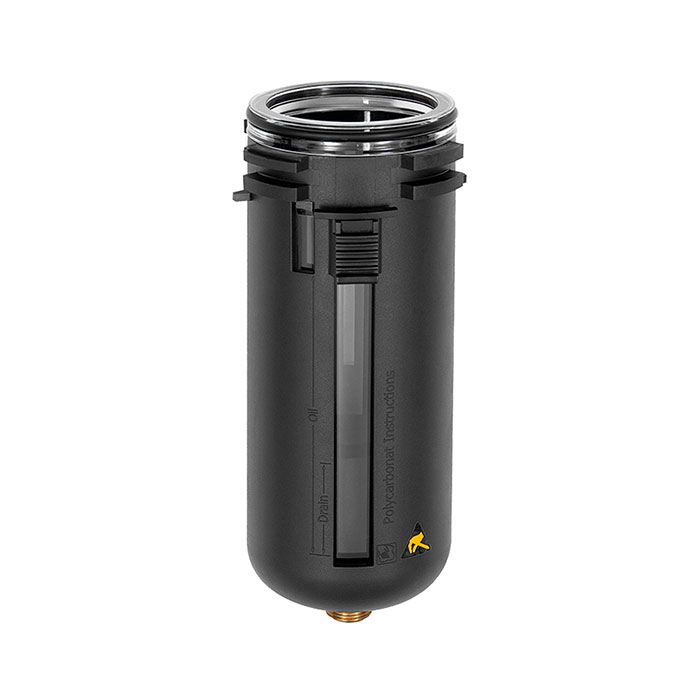

![[135863] RIEGLER Polycarbonate container with protective cage](/web/image/product.template/206219/image_128/%5B135863%5D%20RIEGLER%20Polycarbonate%20container%20with%20protective%20cage?unique=892c4fa)
|
