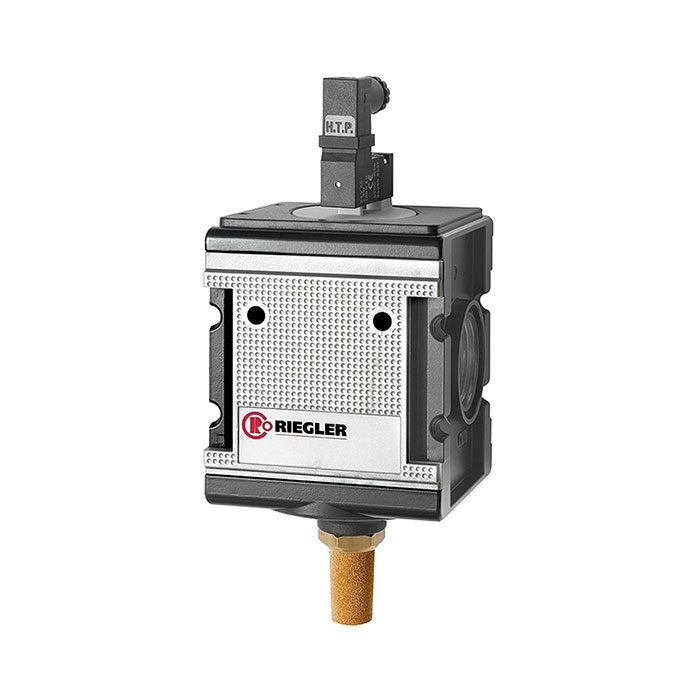

RIEGLER Switch valve (3/2-way valve) »multifix«, 24 V DC, Size 4, G 3/4
Type number: S 44-4
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Switch valve (3/2-way valve) »multifix«, 24 V DC, Size 4, G 3/4, Input pressure 2 - 16 bar, Medium / ambient temp. max. 60 °C
| Inlet pressure min. | 2 bar |
| Inlet pressure max. | 16 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Duty cycle | 1 |
| Protection class | IP 65 (P 54) according to DIN 40050 |
| Electrical connection | Cable plug PG 9, form B, EN 175301-803 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 3/4 |
| Flow rate | 12500 l/min |
| Solenoid coil | 24 V DC |
| BG | 4 |
| A | 85 mm |
| B | 204 mm |
| C | 53 mm |
| D | 66 mm |
| E | 35 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Vent connection | G 1/2 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100619] RIEGLER Switch valve (3/2-way valve) »multifix«, 110 V AC, Size 1, G 1/4](/web/image/product.template/140054/image_128/%5B100619%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%20110%20V%20AC%2C%20Size%201%2C%20G%201-4?unique=631e116)
|
Type number: S 11-3 |
101.83 € | |
![[100623] RIEGLER Switch valve (3/2-way valve) »multifix«, 110 V AC, Size 3, G 1/2](/web/image/product.template/140058/image_128/%5B100623%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%20110%20V%20AC%2C%20Size%203%2C%20G%201-2?unique=9e65162)
|
Type number: S 33-3 |
122.84 € | |
![[133141] RIEGLER Switch valve (3/2-way valve) »multifix«, 110 V AC, Size 4, G 1](/web/image/product.template/202791/image_128/%5B133141%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%20110%20V%20AC%2C%20Size%204%2C%20G%201?unique=f44c9b7)
|
Type number: S 45-3 |
197.78 € | |
![[133137] RIEGLER Switch valve (3/2-way valve) »multifix«, 110 V AC, Size 4, G 3/4](/web/image/product.template/202787/image_128/%5B133137%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%20110%20V%20AC%2C%20Size%204%2C%20G%203-4?unique=994bc22)
|
Type number: S 44-3 |
197.78 € | |
![[100618] RIEGLER Switch valve (3/2-way valve) »multifix«, 230 V AC, Size 1, G 1/4](/web/image/product.template/140053/image_128/%5B100618%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%20230%20V%20AC%2C%20Size%201%2C%20G%201-4?unique=4b23d17)
|
Type number: S 11-2 |
101.83 € | |
![[100622] RIEGLER Switch valve (3/2-way valve) »multifix«, 230 V AC, Size 3, G 1/2](/web/image/product.template/140057/image_128/%5B100622%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%20230%20V%20AC%2C%20Size%203%2C%20G%201-2?unique=9668a78)
|
Type number: S 33-2 |
122.84 € | |
![[133140] RIEGLER Switch valve (3/2-way valve) »multifix«, 230 V AC, Size 4, G 1](/web/image/product.template/202790/image_128/%5B133140%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%20230%20V%20AC%2C%20Size%204%2C%20G%201?unique=bf2c05a)
|
Type number: S 45-2 |
197.78 € | |
![[133136] RIEGLER Switch valve (3/2-way valve) »multifix«, 230 V AC, Size 4, G 3/4](/web/image/product.template/202786/image_128/%5B133136%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%20230%20V%20AC%2C%20Size%204%2C%20G%203-4?unique=5e88063)
|
Type number: S 44-2 |
197.78 € | |
![[100617] RIEGLER Switch valve (3/2-way valve) »multifix«, 24 V AC, Size 1, G 1/4](/web/image/product.template/140052/image_128/%5B100617%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%2024%20V%20AC%2C%20Size%201%2C%20G%201-4?unique=ae33e17)
|
Type number: S 11-1 |
101.83 € | |
![[100621] RIEGLER Switch valve (3/2-way valve) »multifix«, 24 V AC, Size 3, G 1/2](/web/image/product.template/140056/image_128/%5B100621%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%2024%20V%20AC%2C%20Size%203%2C%20G%201-2?unique=29c16c7)
|
Type number: S 33-1 |
122.84 € | |
![[133135] RIEGLER Switch valve (3/2-way valve) »multifix«, 24 V AC, Size 4, G 3/4](/web/image/product.template/202785/image_128/%5B133135%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%2024%20V%20AC%2C%20Size%204%2C%20G%203-4?unique=61838cf)
|
Type number: S 44-1 |
183.81 € | |
![[100620] RIEGLER Switch valve (3/2-way valve) »multifix«, 24 V DC, Size 1, G 1/4](/web/image/product.template/140055/image_128/%5B100620%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%2024%20V%20DC%2C%20Size%201%2C%20G%201-4?unique=7508a96)
|
Type number: S 11-4 |
101.83 € | |
![[100624] RIEGLER Switch valve (3/2-way valve) »multifix«, 24 V DC, Size 3, G 1/2](/web/image/product.template/140059/image_128/%5B100624%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%2024%20V%20DC%2C%20Size%203%2C%20G%201-2?unique=04658c8)
|
Type number: S 33-4 |
122.84 € | |
![[133142] RIEGLER Switch valve (3/2-way valve) »multifix«, 24 V DC, Size 4, G 1](/web/image/product.template/202792/image_128/%5B133142%5D%20RIEGLER%20Switch%20valve%20%283-2-way%20valve%29%20%C2%BBmultifix%C2%AB%2C%2024%20V%20DC%2C%20Size%204%2C%20G%201?unique=3a504f0)
|
Type number: S 45-4 |
197.78 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

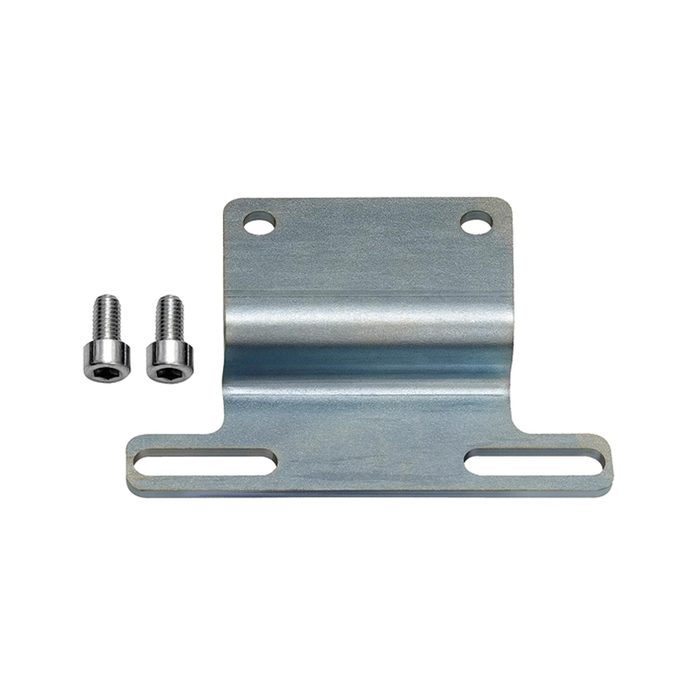

![[135858] RIEGLER Mounting bracket with 2 screws, »multifix«, Size 4, G 3/4 and G 1](/web/image/product.template/206214/image_128/%5B135858%5D%20RIEGLER%20Mounting%20bracket%20with%202%20screws%2C%20%C2%BBmultifix%C2%AB%2C%20Size%204%2C%20G%203-4%20and%20G%201?unique=f19f45d)
|
Type number: ZW 45 |
13.19 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

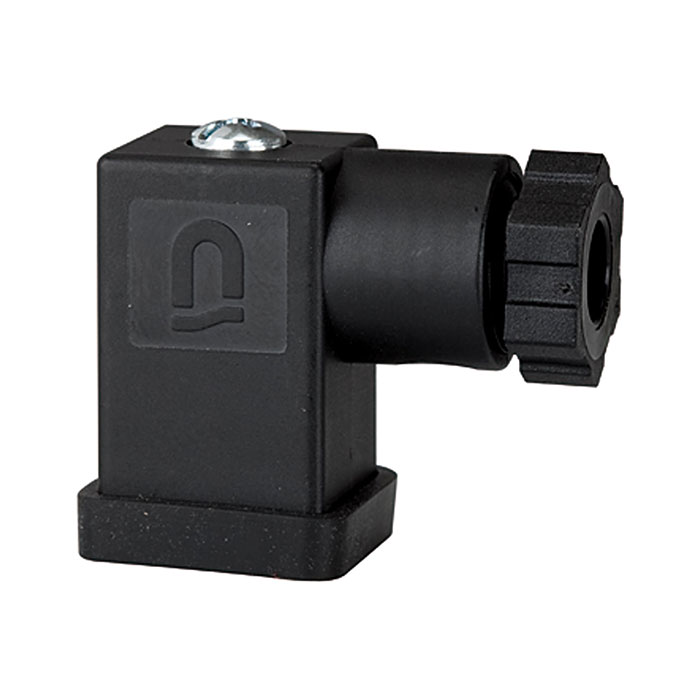

![[100310] RIEGLER Equipment plug C shape](/web/image/product.template/139744/image_128/%5B100310%5D%20RIEGLER%20Equipment%20plug%20C%20shape?unique=96bea8b)
|
