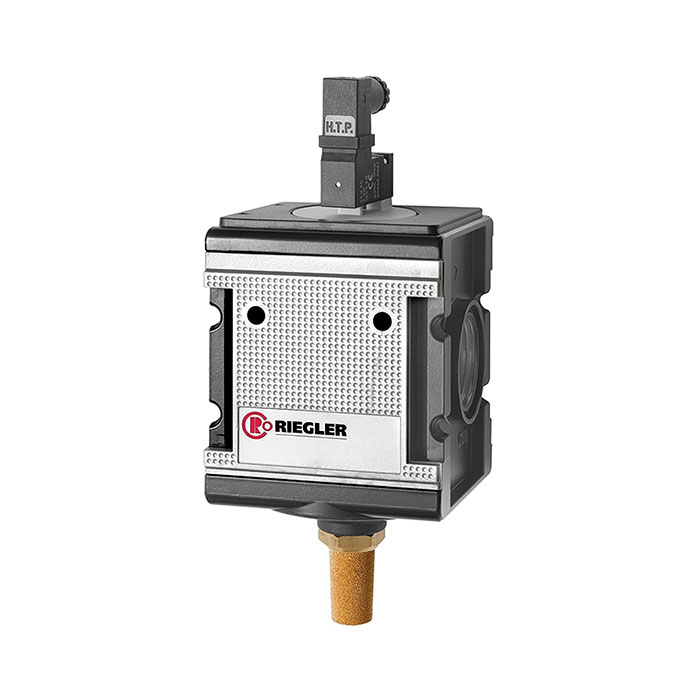

RIEGLER Switch valve (3/2-way valve) »multifix«, 24 V DC, Size 4, G 1
Type number: S 45-4
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Switching valve (3/2-way valve) "multifix", 24 V DC, BG 4, G 1, inlet pressure 2 - 16 bar, medium ambient temp. max. 60 °C
| Inlet pressure min. | 2 bar |
| Inlet pressure max. | 16 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Duty cycle | 1 |
| Protection class | IP 65 (P 54) according to DIN 40050 |
| Electrical connection | Cable plug PG 9, form B, EN 175301-803 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 |
| Flow rate | 12500 l/min |
| Solenoid coil | 24 V DC |
| BG | 4 |
| A | 85 mm |
| B | 204 mm |
| C | 53 mm |
| D | 66 mm |
| E | 35 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Vent connection | G 1/2 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
