RIEGLER Angle seat valve, Piston drive, NC, Stainless steel, G 3/4
Type number: 3363.03
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Angle seat valve without NAMUR interface made of stainless steel AISI 316, for industrial installations - Type 3363.03
The RIEGLER angle seat valve without NAMUR interface, ES, G 3/4, max. 16 bar regulates or blocks the flow of media in industrial pipelines. The body is made of AISI 316 stainless steel with PTFE seals. The permissible medium temperature is between -10 °C and 180 °C. Connection thread G 3/4 - suitable for common industrial standards. Reliable media control.
Field of application
Typical areas of application: Compressed air, gases and liquids.
| Housing | Stainless steel AISI 316 |
| Sealing material | PTFE |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 180 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 70 °C |
| Control pressure min. | 4 bar |
| Control pressure max. | 10 bar |
| Pilot air connection | G 1/8 |
| Spindle | Stainless steel |
| Differential pressure min. | 0 bar |
| max. differential pressure (bar) | 16 bar |
| Permissible static pressure max. | 16 bar |
| Temperature of control medium max. | 60 °C |
| Control head | Polyamide (glass fiber reinforced) |
| Connectors | Stainless steel |
| Thread | G 3/4 |
| Operating pressure difference max. | 16 bar |
| Function | NC |
| A | 213 mm |
| C | 195 mm |
| F | 95 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Piston | Nickel-plated brass |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | STAINLESS STEEL |
| REACH SVHC2 Substance Name | Octamethylcyclotetrasiloxane (D4) |
| REACH SVHC3 Substance Name | Decamethylcyclopentasiloxane (D5) |
| REACH SVHC4 Substance Name | Dodecamethylcyclohexasiloxane (D6) |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[133209] RIEGLER Angle seat valve, Piston drive, NC, Stainless steel, G 1](/web/image/product.template/202859/image_128/%5B133209%5D%20RIEGLER%20Angle%20seat%20valve%2C%20Piston%20drive%2C%20NC%2C%20Stainless%20steel%2C%20G%201?unique=604ab6f)
|
Type number: 3363.04 |
258.46 € | |

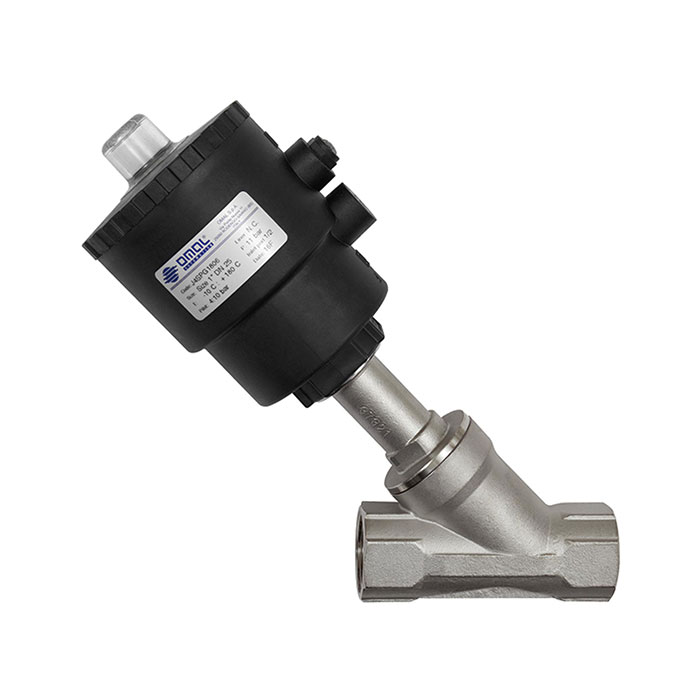

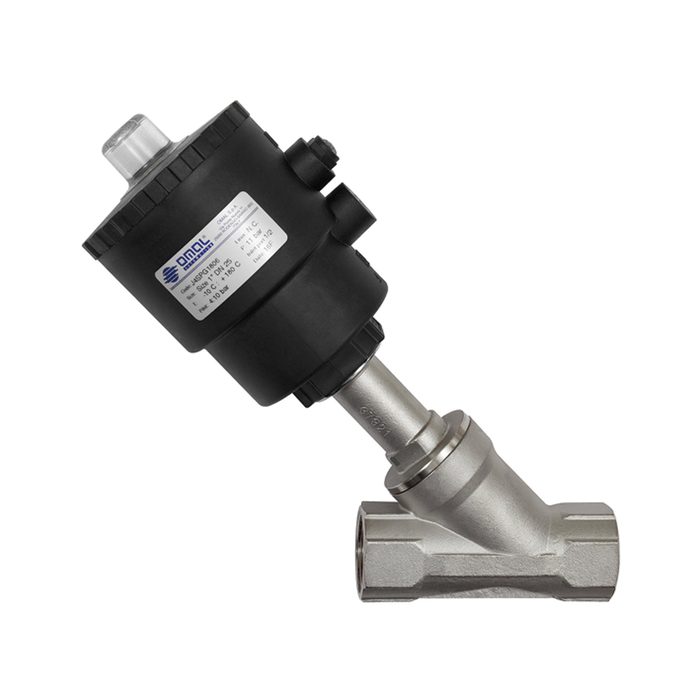

![[133206] RIEGLER Angle seat valve, Piston drive, NC, Stainless steel, G 1/2](/web/image/product.template/202856/image_128/%5B133206%5D%20RIEGLER%20Angle%20seat%20valve%2C%20Piston%20drive%2C%20NC%2C%20Stainless%20steel%2C%20G%201-2?unique=cac0fd8)
|
