RIEGLER Coaxial valve pneumat. actuated, single-acting NC, FKM, Rp 1 1/2

Price:

283.27 €

RIEGLER Coaxial valve pneumat. actuated, single-acting NC, FKM, Rp 1
RIEGLER Coaxial valve pneumat. actuated, single-acting NC, FKM, Rp 1
166.39 € 166.39 €
RIEGLER Coaxial valve pneumat. actuated, single-acting NC, FKM, Rp 1 1/4
RIEGLER Coaxial valve pneumat. actuated, single-acting NC, FKM, Rp 1 1/4
226.46 € 226.46 €

RIEGLER Coaxial valve pneumat. actuated, single-acting NC, FKM, Rp 1 1/2

https://www.filcom-technik.de/web/image/product.template/202876/image_1920?unique=c292822

Type number: 351.956

EAN: 4047322477956

283.27 € 283.27 EUR 283.27 € VAT Included

366.22 € VAT Included


  • Brand

This combination does not exist.

from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

133398

EAN :

4047322477956

Category :

Coaxial Valves

Weight :

0.10 kg

Coaxial valve, pneumatically operated, single w. NC, MS nickel-plated, FKM, operating temp. -20 °C to 150 °C, control pressure 4.2 - 8 bar, Rp 1 1/2, DN 40

Housing Nickel-plated brass
Sealing material FKM
Max. operating pressure 10 bar
Installation position any
Interior parts Nickel-plated brass
Control pressure min. 4.2 bar
Control pressure max. 8 bar
Operating temperature min. -20 °C
Operating temperature max. 150 °C
Spring Stainless steel
Thread Rp 1 1/2
DN 40

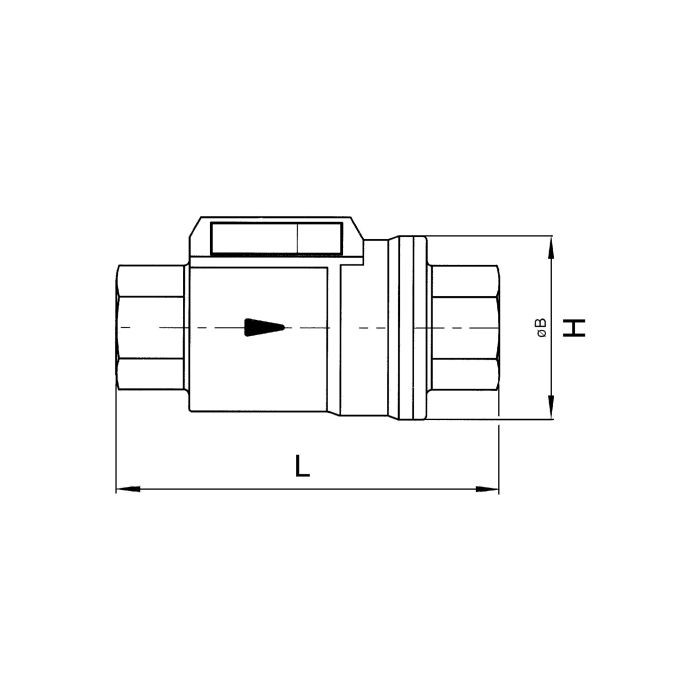

L 180 mm
H 96 mm
Execution single-acting - spring-closing
REACH SVHC1 Substance Name Lead
CAS No. SVHC 1 7439-92-1
Connection NAMUR interface, direct: 2 x G 1/8
RoHS material information RoHS compliant
RoHS Directive 2011/65/EU, 2015/863/EU, 2018/741/EU
RoHS Article of the Directive Article 4, paragraph 1, Annex 3
Share of SVHC substance in % for RoHS 0.04
Exception 6c
REACH Info contains SVHC substance
Share of SVHC SCIP >= 1.0% w/w and < 10.0% w/w
Proportion of SVHC substance in SCIP >= 0.1 % in w/w
Material identification none
Class name EASY
