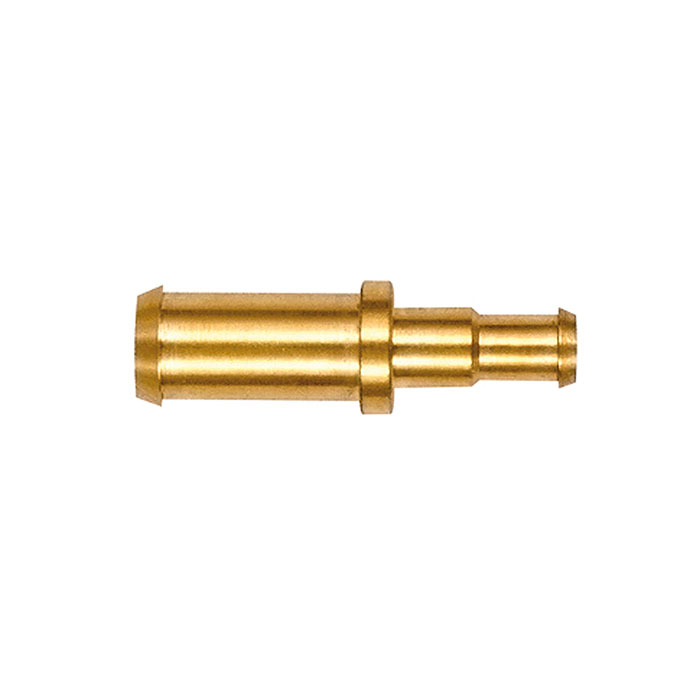

RIEGLER Straight reducing supports, for hose I.D. 4/3 mm, brass
Type number: RTU-4-3
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight reducing spigot made of brass CW617N, for pneumatic installation, max. 10 bar - type RTU-4-3
The RIEGLER straight reducer, for hose LW 4/3 mm, brass connects compressed air and pneumatic lines safely and tightly. The housing is made of brass CW617N. Designed for a maximum operating pressure of 10 bar. The temperature range is between -10 °C and 60 °C. Safe, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Working pressure max. | 10 bar |
| Material | Brass CW617N |
| Max. permissible overpressure | 10 bar |
| for hose | LW 4/3 mm |
| L1 | 20 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
