RIEGLER Angled hose fitting supports, for hose I.D. 3 mm, brass and POM
Type number: LPK-300
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow hose connectors made of brass CW617N and acetal copolymer (POM) - type LPK-300
The RIEGLER elbow hose connector, for hose LW 3 mm, Ms/POM connects compressed air and pneumatic lines safely and tightly. The housing is made of brass CW617N and acetal copolymer (POM). Designed for a maximum operating pressure of 10 bar. The temperature range is between -10 °C and 60 °C. Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Working pressure max. | 10 bar |
| Material | Brass CW617N and acetal copolymer (POM) |
| Max. permissible overpressure | 10 bar |
| for hose | LW 3 mm |
| L1 | 15.3 mm |
| L2 | 15.3 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

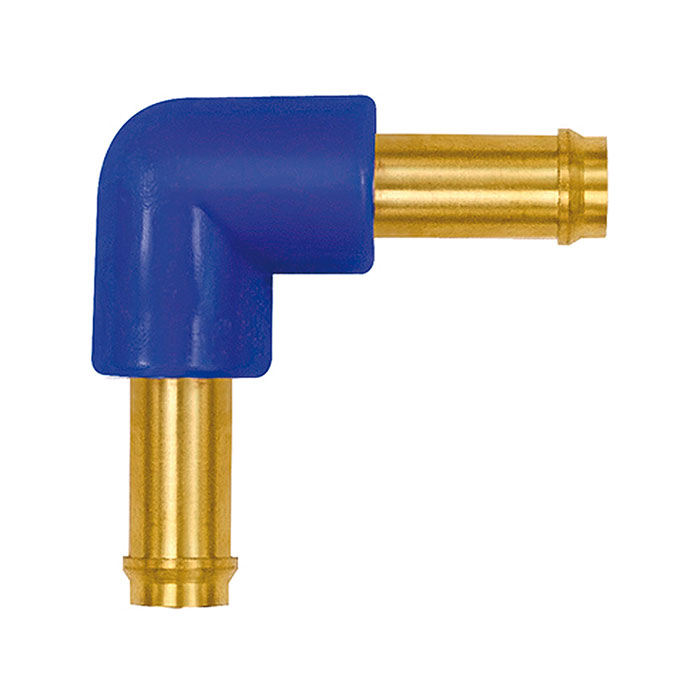

![[133408] RIEGLER Angled hose fitting supports, for hose I.D. 4 mm, brass and POM](/web/image/product.template/202886/image_128/%5B133408%5D%20RIEGLER%20Angled%20hose%20fitting%20supports%2C%20for%20hose%20I.D.%204%20mm%2C%20brass%20and%20POM?unique=1aa3d53)
|
