RIEGLER Fitting elbow 95, IT/IT Rp 1/2, black malleable iron fitting
Type number: TFV 95-12-S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow 95 made of black malleable cast iron B350-10 Design Symbol A, for pipeline construction - Type TFV 95-12-S
The RIEGLER elbow fitting 95, flat seal, IG/IG Rp 1/2, malleable cast iron black connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range is between -20 °C and 200 °C. Connection thread Rp 1/2 (to ISO 7-1) - suitable for common industry standards. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 200 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | black |
| Thread | Rp 1/2 |
| Thread standard | according to ISO 7-1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[133642] RIEGLER Fitting elbow 95, IT/IT Rp 1 1/2, black malleable iron fitting](/web/image/product.template/203010/image_128/%5B133642%5D%20RIEGLER%20Fitting%20elbow%2095%2C%20IT-IT%20Rp%201%201-2%2C%20black%20malleable%20iron%20fitting?unique=1ded5ec)
|
Type number: TFV 95-112-S |
14.80 € | |
![[133641] RIEGLER Fitting elbow 95, IT/IT Rp 1 1/4, black malleable iron fitting](/web/image/product.template/203009/image_128/%5B133641%5D%20RIEGLER%20Fitting%20elbow%2095%2C%20IT-IT%20Rp%201%201-4%2C%20black%20malleable%20iron%20fitting?unique=8e44990)
|
Type number: TFV 95-114-S |
10.23 € | |
![[133640] RIEGLER Fitting elbow 95, IT/IT Rp 1, black malleable iron fitting](/web/image/product.template/203008/image_128/%5B133640%5D%20RIEGLER%20Fitting%20elbow%2095%2C%20IT-IT%20Rp%201%2C%20black%20malleable%20iron%20fitting?unique=df2d969)
|
Type number: TFV 95-10-S |
5.95 € | |

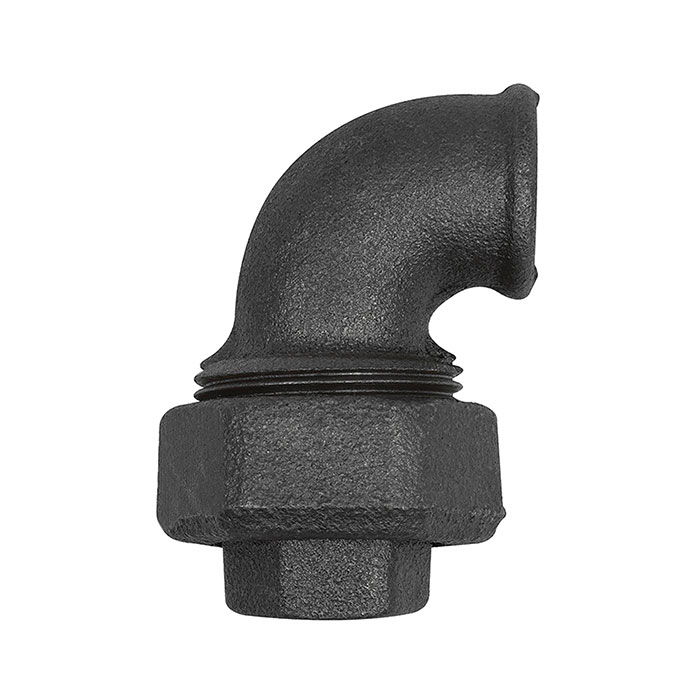

![[133643] RIEGLER Fitting elbow 95, IT/IT Rp 2, black malleable iron fitting](/web/image/product.template/203011/image_128/%5B133643%5D%20RIEGLER%20Fitting%20elbow%2095%2C%20IT-IT%20Rp%202%2C%20black%20malleable%20iron%20fitting?unique=21aec1c)
|
Type number: TFV 95-20-S |
21.62 € | |
![[133639] RIEGLER Fitting elbow 95, IT/IT Rp 3/4, black malleable iron fitting](/web/image/product.template/203007/image_128/%5B133639%5D%20RIEGLER%20Fitting%20elbow%2095%2C%20IT-IT%20Rp%203-4%2C%20black%20malleable%20iron%20fitting?unique=eeb55eb)
|
Type number: TFV 95-34-S |
4.77 € | |
