RIEGLER Fitting elbow 98 IT/ET Rp 3/4, R 3/4 black malleable iron fitting
Type number: TFV 98-34-S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow 98 made of black malleable cast iron B350-10 Design Symbol A, for pipeline construction - Type TFV 98-34-S
The RIEGLER elbow fitting 98, conical tight, Rp 3/4, R 3/4, malleable cast iron black connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range extends between -20 °C and 300 °C. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | black |
| Thread standard | according to ISO 7-1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Thread 1 | Rp 3/4 |
| Thread 2 | R 3/4 |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[133653] RIEGLER Fitting elbow 98 IT/ET Rp11/4, R11/4 black malleable iron fitting](/web/image/product.template/203021/image_128/%5B133653%5D%20RIEGLER%20Fitting%20elbow%2098%20IT-ET%20Rp11-4%2C%20R11-4%20black%20malleable%20iron%20fitting?unique=57f59cf)
|
Type number: TFV 98-114-S |
12.15 € | |

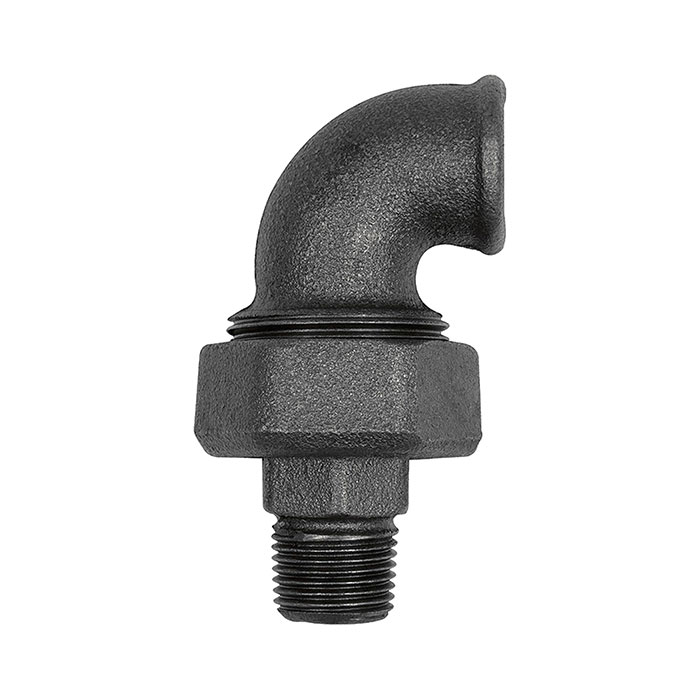

![[133650] RIEGLER Fitting elbow 98 IT/ET Rp 1/2, R 1/2 black malleable iron fitting](/web/image/product.template/203018/image_128/%5B133650%5D%20RIEGLER%20Fitting%20elbow%2098%20IT-ET%20Rp%201-2%2C%20R%201-2%20black%20malleable%20iron%20fitting?unique=38304b7)
|
Type number: TFV 98-12-S |
4.75 € | |
![[133652] RIEGLER Fitting elbow 98 IT/ET Rp 1, R 1 black malleable iron fitting](/web/image/product.template/203020/image_128/%5B133652%5D%20RIEGLER%20Fitting%20elbow%2098%20IT-ET%20Rp%201%2C%20R%201%20black%20malleable%20iron%20fitting?unique=91591c2)
|
Type number: TFV 98-10-S |
7.44 € | |
![[133654] RIEGLER Fitting elbow 98 IT/ET Rp 2, R 2 black malleable iron fitting](/web/image/product.template/203022/image_128/%5B133654%5D%20RIEGLER%20Fitting%20elbow%2098%20IT-ET%20Rp%202%2C%20R%202%20black%20malleable%20iron%20fitting?unique=f049926)
|
Type number: TFV 98-20-S |
23.51 € | |
