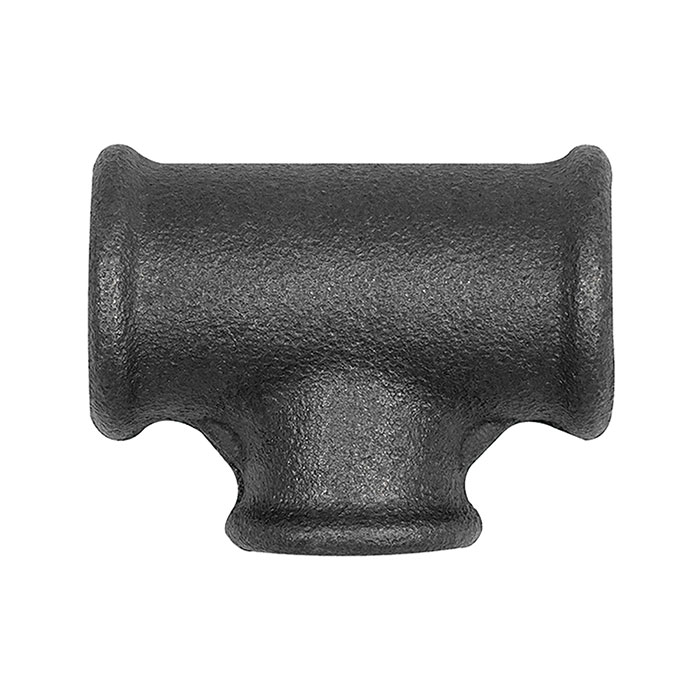

RIEGLER T-piece 130, IT/IT/IT, Rp 2, T-branch Rp 1/2
Type number: TFT 130-2012-S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
T-Stück 130, red., Rp 2, Rp 1/2, Rp 2, Temperguss schwarz, Betriebstemperatur -20 °C bis 300 °C, ISO 7-1
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | black |
| Thread standard | according to ISO 7-1 |
| Thread 2 T-branch reduced | Rp 1/2 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Thread 1 | Rp 2 |
| Thread 3 | Rp 2 |
| Class name | FLEX |
