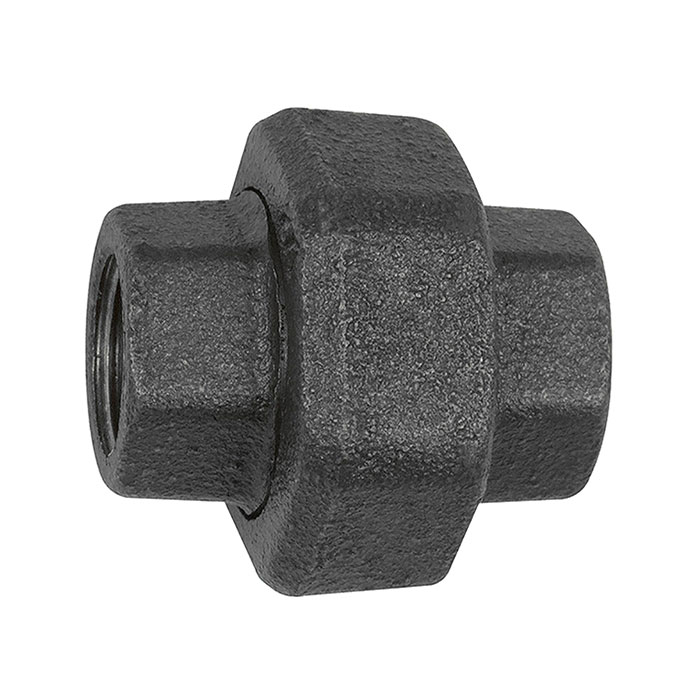

RIEGLER Fitting 330, flat sealing, IT/IT, Rp/Rp 1/2
Type number: TFV 330-12-DS
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Fitting 330 made of black malleable cast iron B350-10 Design Symbol A, for pipeline construction - Type TFV 330-12-DS
The RIEGLER union 330, flat-sealing, Rp 1/2, Rp 1/2, black malleable cast iron connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range is between -20 °C and 200 °C. Connection thread Rp/Rp 1/2 (to ISO 7-1) - suitable for common industry standards. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 200 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | black |
| Thread | Rp/Rp 1/2 |
| Thread standard | according to ISO 7-1 |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[133809] RIEGLER Fitting 330, flat sealing, IT/IT, Rp/Rp 1](/web/image/product.template/203177/image_128/%5B133809%5D%20RIEGLER%20Fitting%20330%2C%20flat%20sealing%2C%20IT-IT%2C%20Rp-Rp%201?unique=81a11f7)
|
Type number: TFV 330-10-DS |
4.65 € | |
![[133811] RIEGLER Fitting 330, flat sealing, IT/IT, Rp/Rp 1 1/2](/web/image/product.template/203179/image_128/%5B133811%5D%20RIEGLER%20Fitting%20330%2C%20flat%20sealing%2C%20IT-IT%2C%20Rp-Rp%201%201-2?unique=9b206c8)
|
Type number: TFV330-112-DS |
8.25 € | |
![[133810] RIEGLER Fitting 330, flat sealing, IT/IT, Rp/Rp 1 1/4](/web/image/product.template/203178/image_128/%5B133810%5D%20RIEGLER%20Fitting%20330%2C%20flat%20sealing%2C%20IT-IT%2C%20Rp-Rp%201%201-4?unique=edc987b)
|
Type number: TFV330-114-DS |
6.90 € | |
![[133812] RIEGLER Fitting 330, flat sealing, IT/IT, Rp/Rp 2](/web/image/product.template/203180/image_128/%5B133812%5D%20RIEGLER%20Fitting%20330%2C%20flat%20sealing%2C%20IT-IT%2C%20Rp-Rp%202?unique=3db64a8)
|
Type number: TFV 330-20-DS |
13.23 € | |
![[133813] RIEGLER Fitting 330, flat sealing, IT/IT, Rp/Rp 2 1/2](/web/image/product.template/203181/image_128/%5B133813%5D%20RIEGLER%20Fitting%20330%2C%20flat%20sealing%2C%20IT-IT%2C%20Rp-Rp%202%201-2?unique=531c5b8)
|
Type number: TFV330-212-DS |
26.48 € | |
![[133814] RIEGLER Fitting 330, flat sealing, IT/IT, Rp/Rp 3](/web/image/product.template/203182/image_128/%5B133814%5D%20RIEGLER%20Fitting%20330%2C%20flat%20sealing%2C%20IT-IT%2C%20Rp-Rp%203?unique=268d29d)
|
Type number: TFV 330-30-DS |
38.09 € | |
![[133808] RIEGLER Fitting 330, flat sealing, IT/IT, Rp/Rp 3/4](/web/image/product.template/203176/image_128/%5B133808%5D%20RIEGLER%20Fitting%20330%2C%20flat%20sealing%2C%20IT-IT%2C%20Rp-Rp%203-4?unique=0dc6701)
|
Type number: TFV 330-34-DS |
3.86 € | |
![[133806] RIEGLER Fitting 330, flat sealing, IT/IT, Rp/Rp 3/8](/web/image/product.template/203174/image_128/%5B133806%5D%20RIEGLER%20Fitting%20330%2C%20flat%20sealing%2C%20IT-IT%2C%20Rp-Rp%203-8?unique=786b1d3)
|
Type number: TFV 330-38-DS |
4.05 € | |
