RIEGLER Fitting 331 flat sealingR21/2,Rp21/2 black malleable iron fitting
Type number: TFV331-212-DS
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Fitting 331 made of black malleable cast iron B350-10 Design Symbol A, for pipeline construction - Type TFV331-212-DS

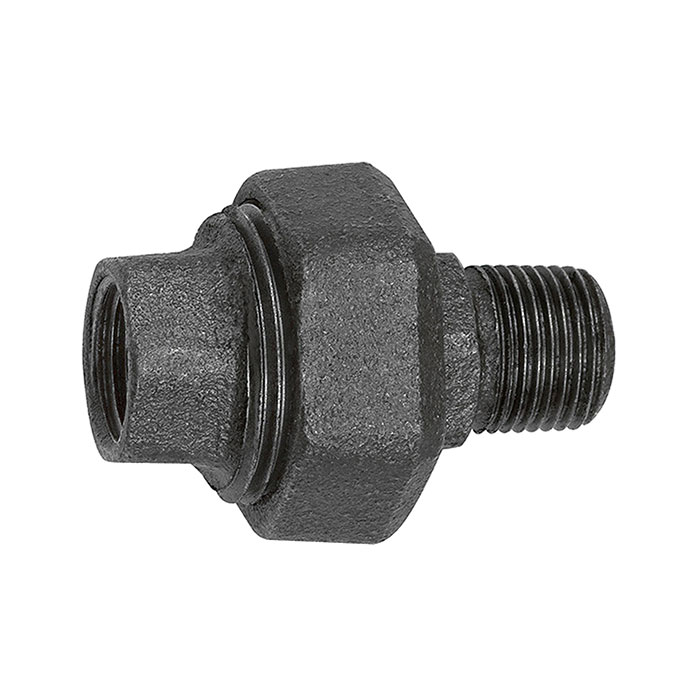

The RIEGLER union 331, flat seal, R 2 1/2, Rp 2 1/2, black malleable cast iron connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range is between -20 °C and 200 °C. Connection thread Rp/R 2 1/2 (to ISO 7-1) - suitable for common industry standards. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 200 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | black |
| Thread | Rp/R 2 1/2 |
| Thread standard | according to ISO 7-1 |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[133819] RIEGLER Fitting 331 flat sealingR11/2,Rp11/2 black malleable iron fitting](/web/image/product.template/203187/image_128/%5B133819%5D%20RIEGLER%20Fitting%20331%20flat%20sealingR11-2%2CRp11-2%20black%20malleable%20iron%20fitting?unique=fb551c7)
|
Type number: TFV331-112-DS |
10.23 € | |
![[133818] RIEGLER Fitting 331 flat sealingR11/4,Rp11/4 black malleable iron fitting](/web/image/product.template/203186/image_128/%5B133818%5D%20RIEGLER%20Fitting%20331%20flat%20sealingR11-4%2CRp11-4%20black%20malleable%20iron%20fitting?unique=50ac881)
|
Type number: TFV331-114-DS |
8.27 € | |
![[133815] RIEGLER Fitting 331 flat sealingR 1/2,Rp 1/2 black malleable iron fitting](/web/image/product.template/203183/image_128/%5B133815%5D%20RIEGLER%20Fitting%20331%20flat%20sealingR%201-2%2CRp%201-2%20black%20malleable%20iron%20fitting?unique=d89db5b)
|
Type number: TFV 331-12-DS |
3.86 € | |
![[133817] RIEGLER Fitting 331, flat sealing, R 1, Rp 1 black malleable iron fitting](/web/image/product.template/203185/image_128/%5B133817%5D%20RIEGLER%20Fitting%20331%2C%20flat%20sealing%2C%20R%201%2C%20Rp%201%20black%20malleable%20iron%20fitting?unique=08296ad)
|
Type number: TFV 331-10-DS |
6.06 € | |
![[133820] RIEGLER Fitting 331, flat sealing, R 2, Rp 2 black malleable iron fitting](/web/image/product.template/203188/image_128/%5B133820%5D%20RIEGLER%20Fitting%20331%2C%20flat%20sealing%2C%20R%202%2C%20Rp%202%20black%20malleable%20iron%20fitting?unique=22fd0a5)
|
Type number: TFV 331-20-DS |
15.79 € | |
![[133816] RIEGLER Fitting 331 flat sealingR 3/4,Rp 3/4 black malleable iron fitting](/web/image/product.template/203184/image_128/%5B133816%5D%20RIEGLER%20Fitting%20331%20flat%20sealingR%203-4%2CRp%203-4%20black%20malleable%20iron%20fitting?unique=d886669)
|
Type number: TFV 331-34-DS |
4.90 € | |
