RIEGLER Fitting 340, conical sealing, Rp 1/2, Rp 1/2
Type number: TFV 340-12-S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Fitting 340 made of black malleable cast iron B350-10 Design Symbol A, for pipeline construction - Type TFV 340-12-S
The RIEGLER union 340, conical tight, Rp 1/2, Rp 1/2, black malleable cast iron connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range is between -20 °C and 300 °C. Connection thread Rp/Rp 1/2 (to ISO 7-1) - suitable for common industry standards. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | black |
| Thread | Rp/Rp 1/2 |
| Thread standard | according to ISO 7-1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[133827] RIEGLER Fitting 340, conical sealing, Rp 1 1/2, Rp 1 1/2](/web/image/product.template/203195/image_128/%5B133827%5D%20RIEGLER%20Fitting%20340%2C%20conical%20sealing%2C%20Rp%201%201-2%2C%20Rp%201%201-2?unique=fb4cf07)
|
Type number: TFV 340-112-S |
9.14 € | |
![[133826] RIEGLER Fitting 340, conical sealing, Rp 1 1/4, Rp 1 1/4](/web/image/product.template/203194/image_128/%5B133826%5D%20RIEGLER%20Fitting%20340%2C%20conical%20sealing%2C%20Rp%201%201-4%2C%20Rp%201%201-4?unique=02a987c)
|
Type number: TFV 340-114-S |
7.43 € | |
![[133825] RIEGLER Fitting 340, conical sealing, Rp 1, Rp 1](/web/image/product.template/203193/image_128/%5B133825%5D%20RIEGLER%20Fitting%20340%2C%20conical%20sealing%2C%20Rp%201%2C%20Rp%201?unique=5529be4)
|
Type number: TFV 340-10-S |
4.96 € | |

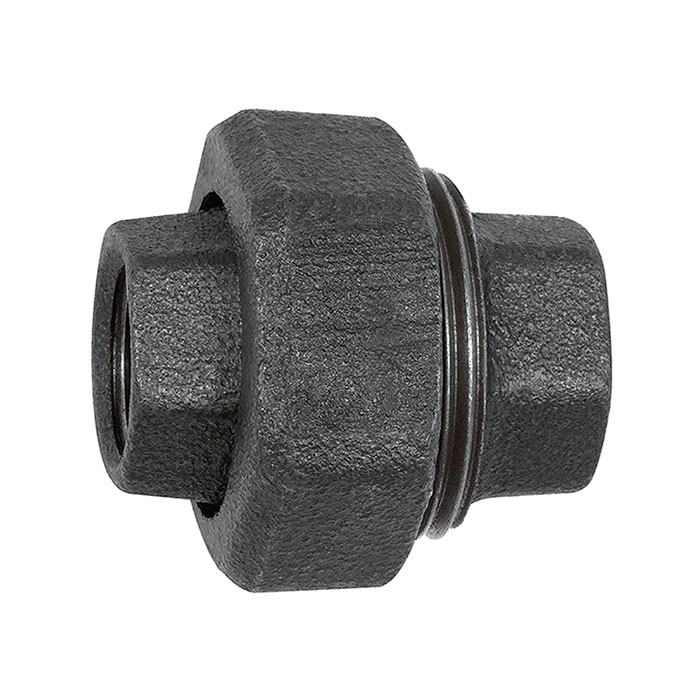

![[133828] RIEGLER Fitting 340, conical sealing, Rp 2 1/2, Rp 2 1/2](/web/image/product.template/203196/image_128/%5B133828%5D%20RIEGLER%20Fitting%20340%2C%20conical%20sealing%2C%20Rp%202%201-2%2C%20Rp%202%201-2?unique=9256c58)
|
