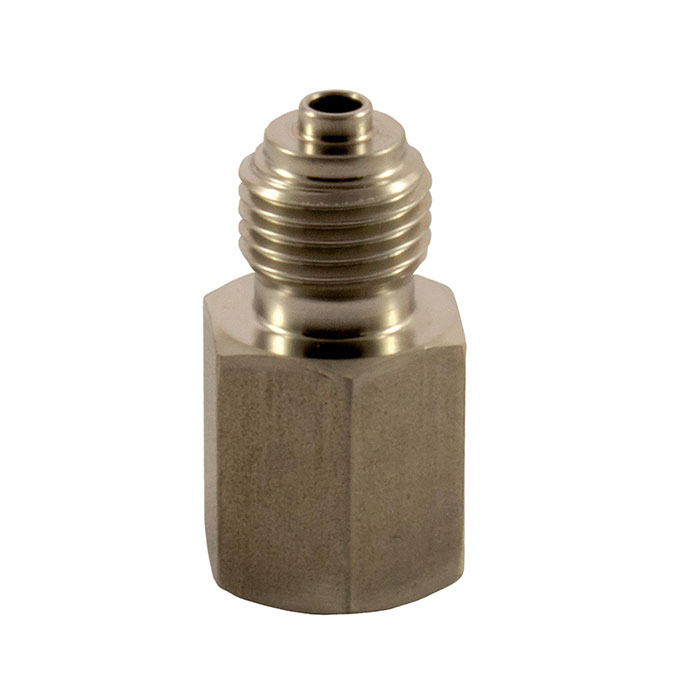

RIEGLER Pressure gauge in-line filter, G 1/4 IT, G 1/4 ET, 200 µm
Type number: 9030
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
133873EAN :
4047322482295Category :
Accessories for Pressure GaugesWeight :
0.04 kgRIEGLER Pre-filter for Mano made of stainless steel 1.4571 - Type 9030
The RIEGLER upstream filter for Mano, G 1/4 IG, G 1/4 AG, 200 µm, ES 1.4571 adds protection and connection functions to pressure gauges. The housing is made of stainless steel 1.4571. The temperature range is between -25 °C and 200 °C. Filter fineness 200 µm. Protection and functional extension for pressure gauges.
Field of application
Typical areas of application: Professional pressure gauge assembly.
| Temperature range min. | -25 °C |
| Temperature range max. | 200 °C |
| Filter fineness | 200 µm |
| Material | Stainless steel 1.4571 |
| Print area | max. 100 bar |
| SW | 17 mm |
| Length | 32 mm |
| Thread 1 | G 1/4 AG |
| Thread 2 | G 1/4 FEMALE THREAD |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

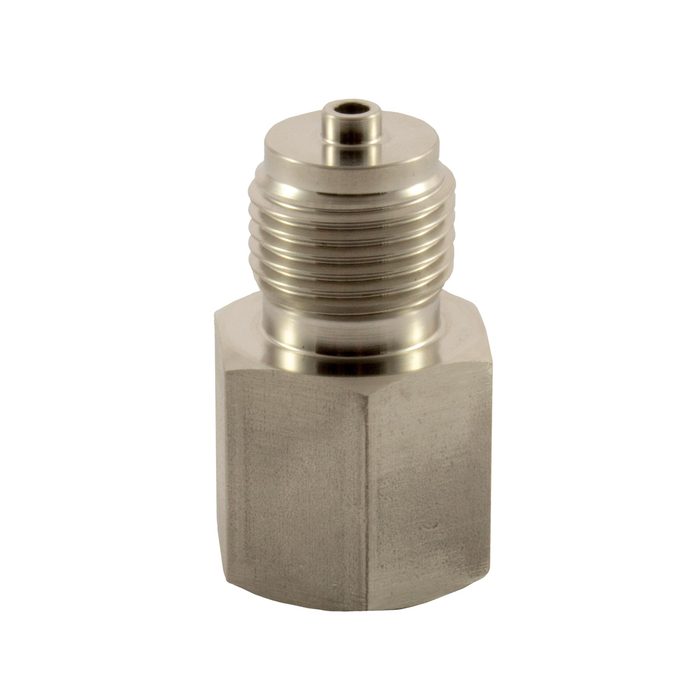

![[143860] RIEGLER Pressure gauge in-line filter, G 1/2 IT, G 1/2 ET, 200 µm](/web/image/product.template/210867/image_128/%5B143860%5D%20RIEGLER%20Pressure%20gauge%20in-line%20filter%2C%20G%201-2%20IT%2C%20G%201-2%20ET%2C%20200%20%C2%B5m?unique=b203a49)
|
Type number: 9031 |
54.09 € | |
