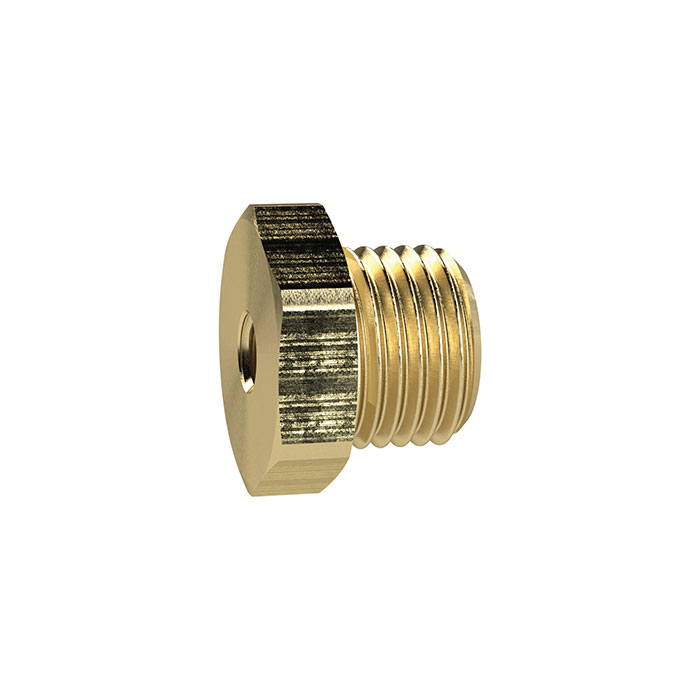

RIEGLER Reducing nipple, short, M14x1.5 ET, M10x1.0 IT, AF 17, Brass
Type number: MS251KM1410
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Reducing nipple, short version, M14x1.5 a., M10x1.0 i., SW 17, brass, working pressure max. 25 bar, operating temp. max. 150 °C
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| SW | 17 mm |

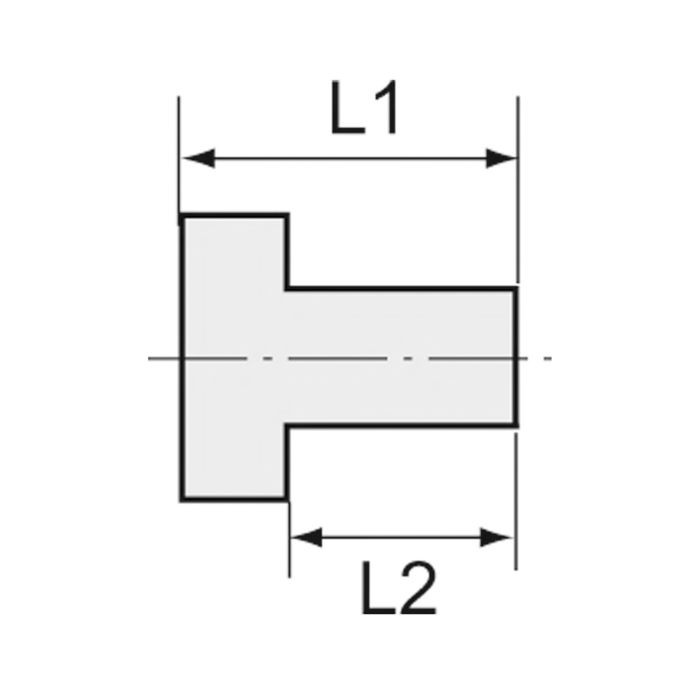

| L1 | 14 mm |
| L2 | 9 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Internal thread | M10x1.0 |
| External thread | M14x1.5 |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
