RIEGLER Double threaded nipple, M3 o., M3 o., AF 5, Brass
Type number: MS252M33
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Double threaded nipple made of brass CW614N, for pipeline construction, max. 25 bar - type MS252M33
The RIEGLER double threaded nipple, metric, M3 a., M3 a., SW 5, brass connects two female threaded connections of the same or different sizes. The housing is made of brass CW614N. Designed for a maximum operating pressure of 25 bar. Universal adapter for various thread sizes.
Field of application
Typical areas of application: Pipeline construction, compressed air distribution and sanitary installations.
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| SW | 5 mm |
| L1 | 9 mm |
| L2 | 3 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Thread 1 | M3 |
| Thread 2 | M3 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| L3 | 3 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[134483] RIEGLER Double threaded nipple, G 1/2 o., M24x1.5 o., AF 28, Brass](/web/image/product.template/205451/image_128/%5B134483%5D%20RIEGLER%20Double%20threaded%20nipple%2C%20G%201-2%20o.%2C%20M24x1.5%20o.%2C%20AF%2028%2C%20Brass?unique=4e07d8c)
|
Type number: MS25212M24 |
4.39 € | |
![[134481] RIEGLER Double threaded nipple, G 1/4 o., M14x1.5 o., AF 17, Brass](/web/image/product.template/205449/image_128/%5B134481%5D%20RIEGLER%20Double%20threaded%20nipple%2C%20G%201-4%20o.%2C%20M14x1.5%20o.%2C%20AF%2017%2C%20Brass?unique=e36c0ce)
|
Type number: MS25214M14 |
1.49 € | |
![[134482] RIEGLER Double threaded nipple, G 3/8 o., M16x1.5 o., AF 19, Brass](/web/image/product.template/205450/image_128/%5B134482%5D%20RIEGLER%20Double%20threaded%20nipple%2C%20G%203-8%20o.%2C%20M16x1.5%20o.%2C%20AF%2019%2C%20Brass?unique=a107c60)
|
Type number: MS25238M16 |
1.65 € | |
![[134476] RIEGLER Double threaded nipple, M14x1.5 o., M14x1.5 o., AF 17, Brass](/web/image/product.template/205444/image_128/%5B134476%5D%20RIEGLER%20Double%20threaded%20nipple%2C%20M14x1.5%20o.%2C%20M14x1.5%20o.%2C%20AF%2017%2C%20Brass?unique=e3dd355)
|
Type number: MS252M1414 |
1.25 € | |

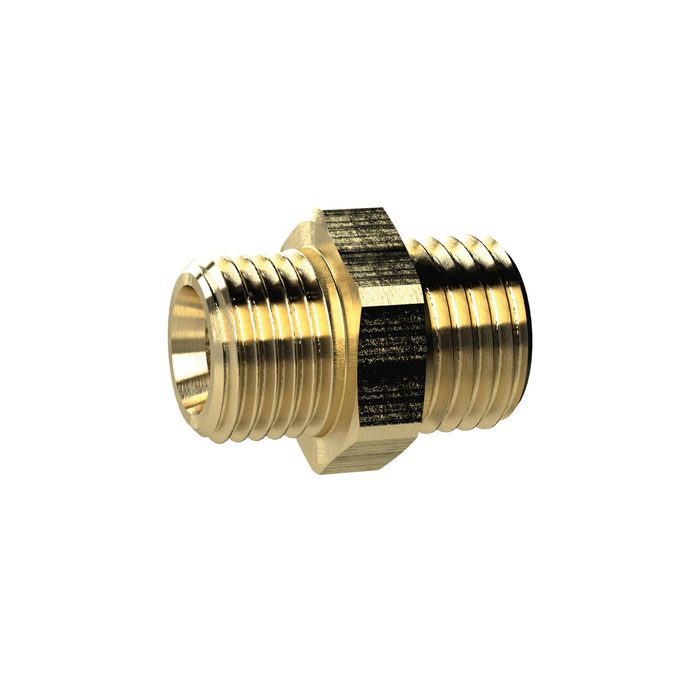

![[134477] RIEGLER Double threaded nipple, M16x1.5 o., M16x1.5 o., AF 19, Brass](/web/image/product.template/205445/image_128/%5B134477%5D%20RIEGLER%20Double%20threaded%20nipple%2C%20M16x1.5%20o.%2C%20M16x1.5%20o.%2C%20AF%2019%2C%20Brass?unique=9dc31f9)
|
Type number: MS252M1616 |
1.44 € | |
![[134478] RIEGLER Double threaded nipple, M24x1.5 o., M24x1.5 o., AF 28, Brass](/web/image/product.template/205446/image_128/%5B134478%5D%20RIEGLER%20Double%20threaded%20nipple%2C%20M24x1.5%20o.%2C%20M24x1.5%20o.%2C%20AF%2028%2C%20Brass?unique=6b41e25)
|
Type number: MS252M2424 |
3.25 € | |

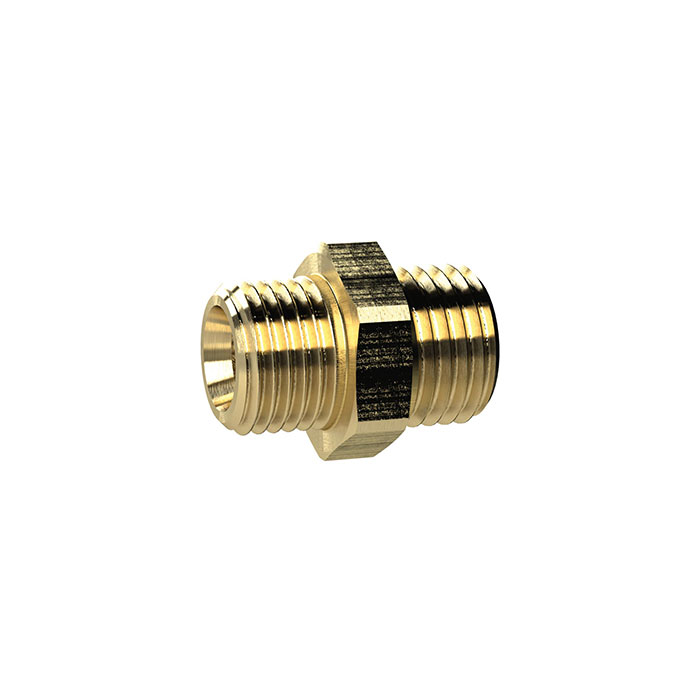

![[134480] RIEGLER Double threaded nipple, M5 o., G 1/4 o., AF 17, Brass](/web/image/product.template/205448/image_128/%5B134480%5D%20RIEGLER%20Double%20threaded%20nipple%2C%20M5%20o.%2C%20G%201-4%20o.%2C%20AF%2017%2C%20Brass?unique=eff60db)
|
