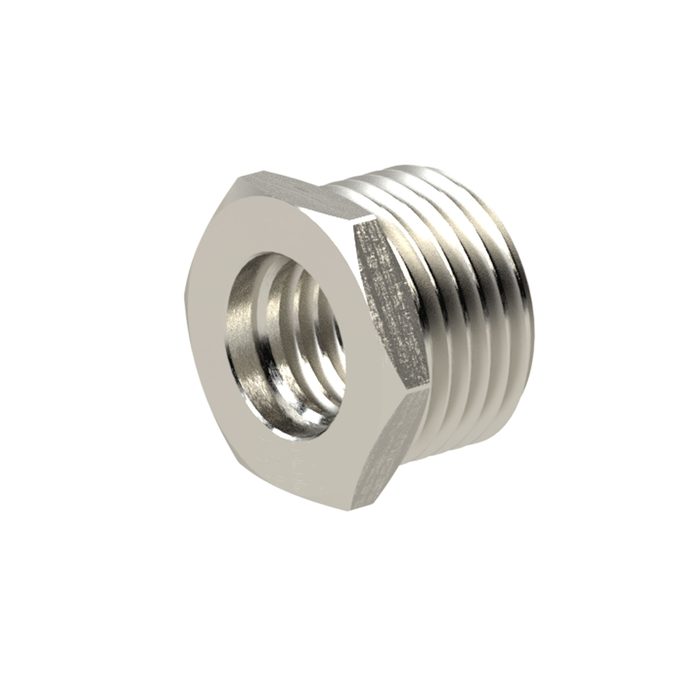

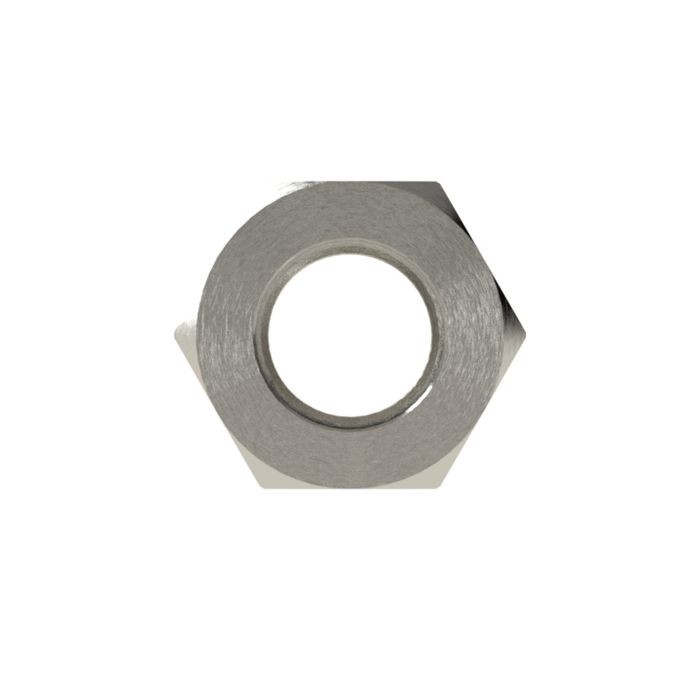

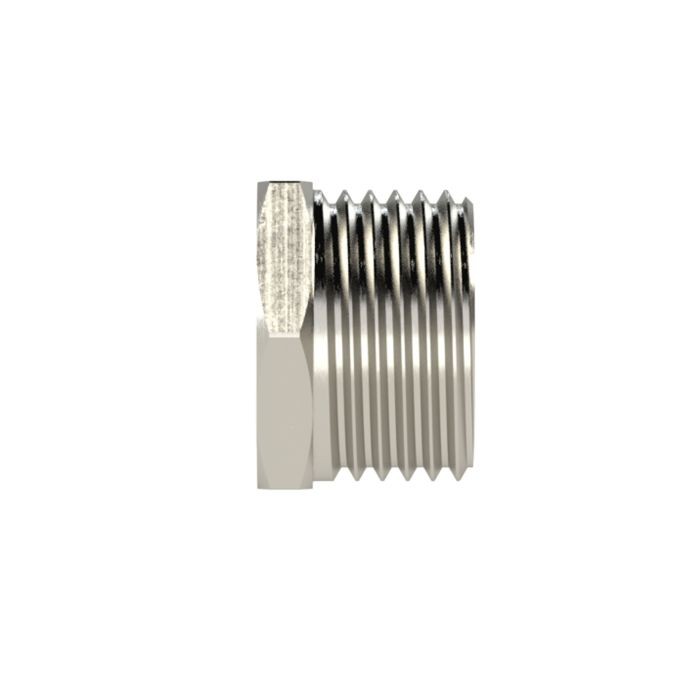

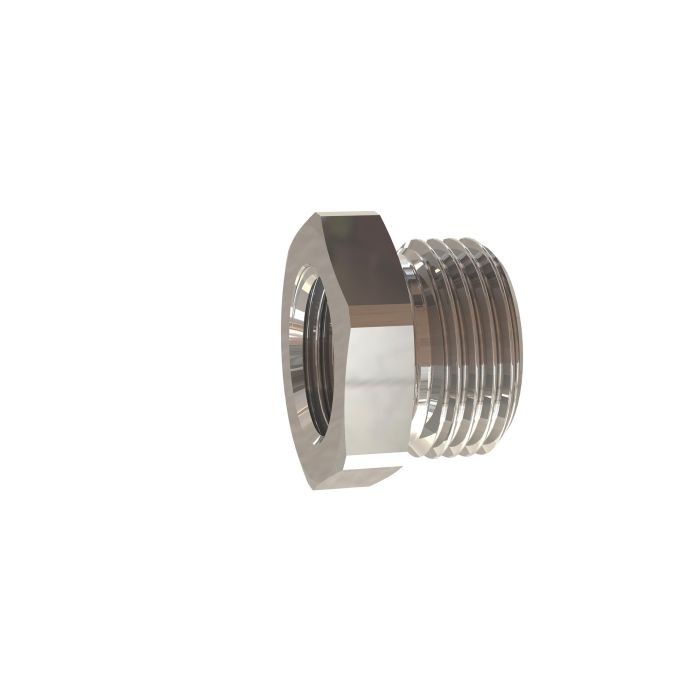

RIEGLER Reducing nipple short, G 1/4 o., G 1/8 i., nickel-plated brass
Type number: MSN251K1418
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Reducing nipple short type G 1/4 o., G 1/8 i. AF 17 nickel-plated brass, Max. working pressure 25 bar, Max. operating temp. 150 °C
| Working pressure max. | 25 bar |
| Material | Nickel-plated brass CW614N (electroplated nickel-plated) |
| Operating temperature max. | 150 °C |
| SW | 17 mm |

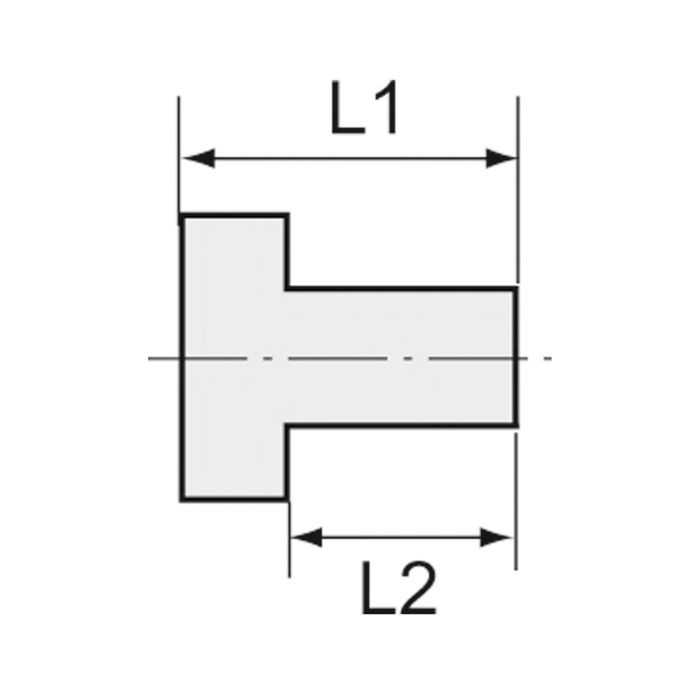

| L1 | 14 mm |
| L2 | 9 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Internal thread | G 1/8 |
| External thread | G 1/4 |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[134725] RIEGLER Reducing nipple short G 1 1/2 o., G 1 1/4 i., nickel-plated brass](/web/image/product.template/205515/image_128/%5B134725%5D%20RIEGLER%20Reducing%20nipple%20short%20G%201%201-2%20o.%2C%20G%201%201-4%20i.%2C%20nickel-plated%20brass?unique=f10d7f3)
|
Type number: MSN251K112114 |
14.03 € | |
![[134724] RIEGLER Reducing nipple short, G 1 1/2 o., G 1 i., nickel-plated brass](/web/image/product.template/205514/image_128/%5B134724%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%201%201-2%20o.%2C%20G%201%20i.%2C%20nickel-plated%20brass?unique=9295bb7)
|
Type number: MSN251K1121 |
14.03 € | |
![[134723] RIEGLER Reducing nipple short, G 1 1/2 o., G 3/4 i., nickel-plated brass](/web/image/product.template/205513/image_128/%5B134723%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%201%201-2%20o.%2C%20G%203-4%20i.%2C%20nickel-plated%20brass?unique=df1790f)
|
Type number: MSN251K11234 |
9.21 € | |
![[134722] RIEGLER Reducing nipple short, G 1 1/4 o., G 1 i., nickel-plated brass](/web/image/product.template/205512/image_128/%5B134722%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%201%201-4%20o.%2C%20G%201%20i.%2C%20nickel-plated%20brass?unique=2e169bb)
|
Type number: MSN251K1141 |
6.69 € | |
![[134721] RIEGLER Reducing nipple short, G 1 1/4 o., G 3/4 i., nickel-plated brass](/web/image/product.template/205511/image_128/%5B134721%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%201%201-4%20o.%2C%20G%203-4%20i.%2C%20nickel-plated%20brass?unique=9f2bc6b)
|
Type number: MSN251K11434 |
7.77 € | |
![[134714] RIEGLER Reducing nipple short, G 1/2 o., G 1/4 i., nickel-plated brass](/web/image/product.template/205504/image_128/%5B134714%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%201-2%20o.%2C%20G%201-4%20i.%2C%20nickel-plated%20brass?unique=0998c0f)
|
Type number: MSN251K1214 |
1.29 € | |
![[134713] RIEGLER Reducing nipple short, G 1/2 o., G 1/8 i., nickel-plated brass](/web/image/product.template/205503/image_128/%5B134713%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%201-2%20o.%2C%20G%201-8%20i.%2C%20nickel-plated%20brass?unique=0f6ebd1)
|
Type number: MSN251K1218 |
1.26 € | |
![[134715] RIEGLER Reducing nipple short, G 1/2 o., G 3/8 i., nickel-plated brass](/web/image/product.template/205505/image_128/%5B134715%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%201-2%20o.%2C%20G%203-8%20i.%2C%20nickel-plated%20brass?unique=f12bb29)
|
Type number: MSN251K1238 |
1.86 € | |
![[134719] RIEGLER Reducing nipple short, G 1 o., G 1/2 i., nickel-plated brass](/web/image/product.template/205509/image_128/%5B134719%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%201%20o.%2C%20G%201-2%20i.%2C%20nickel-plated%20brass?unique=561d2ea)
|
Type number: MSN251K0112 |
3.61 € | |
![[134720] RIEGLER Reducing nipple short, G 1 o., G 3/4 i., nickel-plated brass](/web/image/product.template/205510/image_128/%5B134720%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%201%20o.%2C%20G%203-4%20i.%2C%20nickel-plated%20brass?unique=5dae999)
|
Type number: MSN251K0134 |
4.02 € | |
![[134729] RIEGLER Reducing nipple short G 2 1/2 o., G 1 1/2 i., nickel-plated brass](/web/image/product.template/205519/image_128/%5B134729%5D%20RIEGLER%20Reducing%20nipple%20short%20G%202%201-2%20o.%2C%20G%201%201-2%20i.%2C%20nickel-plated%20brass?unique=63b8825)
|
Type number: MSN251K212112 |
25.53 € | |
![[134730] RIEGLER Reducing nipple short, G 2 1/2 o., G 2 i., nickel-plated brass](/web/image/product.template/205520/image_128/%5B134730%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%202%201-2%20o.%2C%20G%202%20i.%2C%20nickel-plated%20brass?unique=3d51660)
|
Type number: MSN251K2122 |
53.63 € | |
![[134728] RIEGLER Reducing nipple short, G 2 o., G 1 1/2 i., nickel-plated brass](/web/image/product.template/205518/image_128/%5B134728%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%202%20o.%2C%20G%201%201-2%20i.%2C%20nickel-plated%20brass?unique=ee87eea)
|
Type number: MSN251K2112 |
19.65 € | |
![[134727] RIEGLER Reducing nipple short, G 2 o., G 1 1/4 i., nickel-plated brass](/web/image/product.template/205517/image_128/%5B134727%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%202%20o.%2C%20G%201%201-4%20i.%2C%20nickel-plated%20brass?unique=6b11ef2)
|
Type number: MSN251K2114 |
17.87 € | |
![[134726] RIEGLER Reducing nipple short, G 2 o., G 1 i., nickel-plated brass](/web/image/product.template/205516/image_128/%5B134726%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%202%20o.%2C%20G%201%20i.%2C%20nickel-plated%20brass?unique=b8fe03f)
|
Type number: MSN251K21 |
17.87 € | |
![[134718] RIEGLER Reducing nipple short, G 3/4 o., G 1/2 i., nickel-plated brass](/web/image/product.template/205508/image_128/%5B134718%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%203-4%20o.%2C%20G%201-2%20i.%2C%20nickel-plated%20brass?unique=f12bb29)
|
Type number: MSN251K3412 |
2.32 € | |
![[134716] RIEGLER Reducing nipple short, G 3/4 o., G 1/4 i., nickel-plated brass](/web/image/product.template/205506/image_128/%5B134716%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%203-4%20o.%2C%20G%201-4%20i.%2C%20nickel-plated%20brass?unique=336562a)
|
Type number: MSN251K3414 |
1.95 € | |
![[134717] RIEGLER Reducing nipple short, G 3/4 o., G 3/8 i., nickel-plated brass](/web/image/product.template/205507/image_128/%5B134717%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%203-4%20o.%2C%20G%203-8%20i.%2C%20nickel-plated%20brass?unique=6ae863f)
|
Type number: MSN251K3438 |
2.21 € | |
![[134712] RIEGLER Reducing nipple short, G 3/8 o., G 1/4 i., nickel-plated brass](/web/image/product.template/205502/image_128/%5B134712%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%203-8%20o.%2C%20G%201-4%20i.%2C%20nickel-plated%20brass?unique=c4f6ac4)
|
Type number: MSN251K3814 |
0.77 € | |
![[134711] RIEGLER Reducing nipple short, G 3/8 o., G 1/8 i., nickel-plated brass](/web/image/product.template/205501/image_128/%5B134711%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%203-8%20o.%2C%20G%201-8%20i.%2C%20nickel-plated%20brass?unique=7a744f7)
|
Type number: MSN251K3818 |
0.70 € | |
![[134733] RIEGLER Reducing nipple short, G 3 o., G 1 1/2 i., nickel-plated brass](/web/image/product.template/205523/image_128/%5B134733%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%203%20o.%2C%20G%201%201-2%20i.%2C%20nickel-plated%20brass?unique=2011098)
|
Type number: MSN251K3112 |
59.24 € | |
![[134732] RIEGLER Reducing nipple short, G 3 o., G 1 1/4 i., nickel-plated brass](/web/image/product.template/205522/image_128/%5B134732%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%203%20o.%2C%20G%201%201-4%20i.%2C%20nickel-plated%20brass?unique=dd25415)
|
Type number: MSN251K3114 |
58.06 € | |
![[134731] RIEGLER Reducing nipple short, G 3 o., G 1 i., nickel-plated brass](/web/image/product.template/205521/image_128/%5B134731%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%203%20o.%2C%20G%201%20i.%2C%20nickel-plated%20brass?unique=4169a51)
|
Type number: MSN251K31 |
57.51 € | |
![[134735] RIEGLER Reducing nipple short, G 3 o., G 2 1/2 i., nickel-plated brass](/web/image/product.template/205525/image_128/%5B134735%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%203%20o.%2C%20G%202%201-2%20i.%2C%20nickel-plated%20brass?unique=5001824)
|
Type number: MSN251K3212 |
60.76 € | |

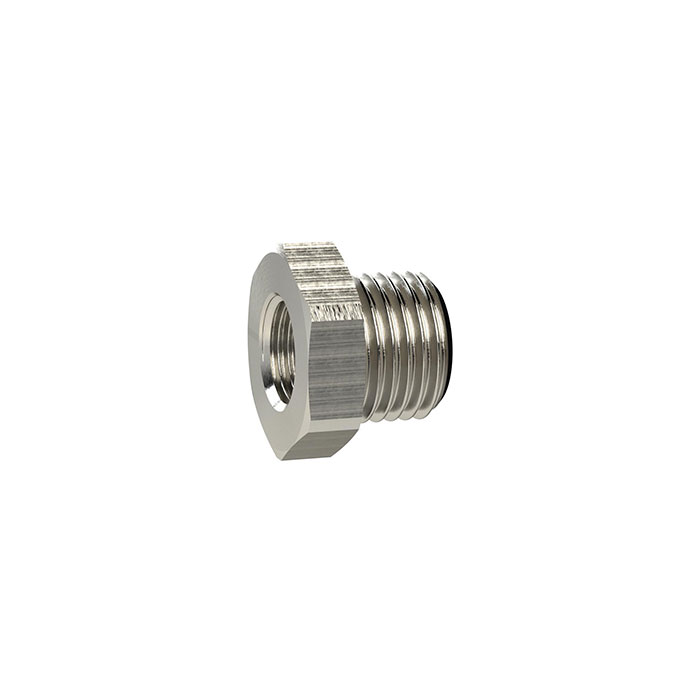

![[134734] RIEGLER Reducing nipple short, G 3 o., G 2 i., nickel-plated brass](/web/image/product.template/205524/image_128/%5B134734%5D%20RIEGLER%20Reducing%20nipple%20short%2C%20G%203%20o.%2C%20G%202%20i.%2C%20nickel-plated%20brass?unique=0070e7f)
|
