RIEGLER Reducing nipple long, G 3/4 o., G 3/4 i., Nickel-plated brass
Type number: MSN251L3434
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Reducing nipple, long, nickel-plated brass CW614N (electroplated nickel-plated) - type MSN251L3434
The RIEGLER reducing nipple long, G 3/4 a., G 3/4 i., SW 32, nickel-plated brass connects two threaded connections of different sizes. The housing is made of nickel-plated brass CW614N (galvanized nickel-plated). Designed for a maximum operating pressure of 25 bar. Flexible thread adjustment.
Field of application
Typical areas of application: Compressed air, water and process installation.
| Working pressure max. | 25 bar |
| Material | Nickel-plated brass CW614N (electroplated nickel-plated) |
| Operating temperature max. | 150 °C |
| SW | 32 mm |

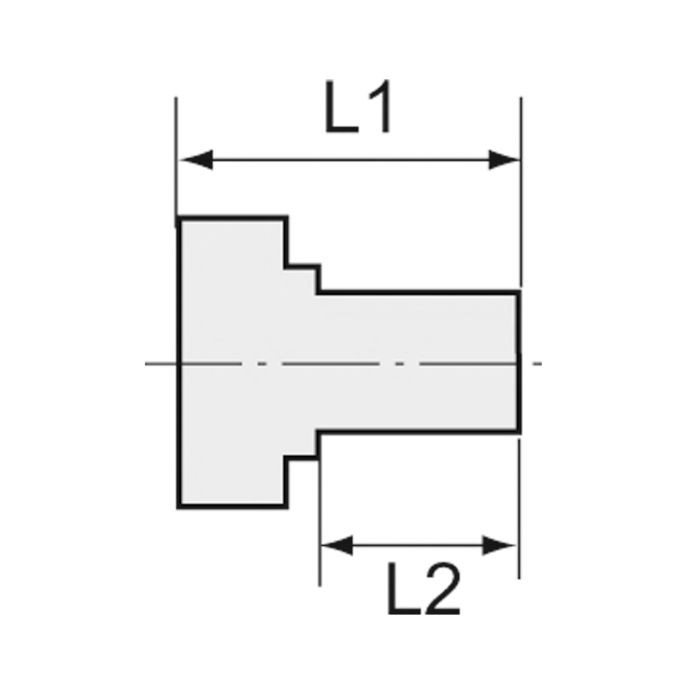

| L1 | 34 mm |
| L2 | 12 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Internal thread | G 3/4 |
| External thread | G 3/4 |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
