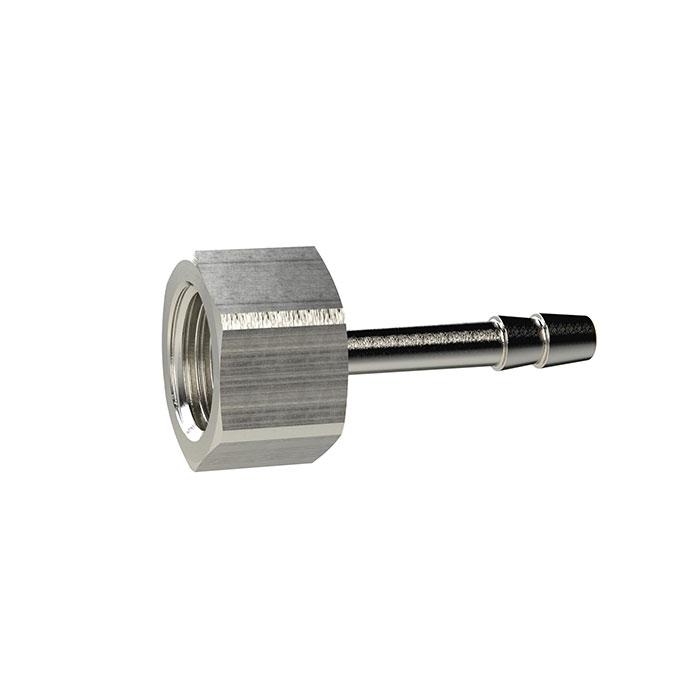

RIEGLER Screw-on hose connector, G 1/8 i., for hose I.D. 4, AF 14
Type number: MSN239A1804
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw-on hose nozzle made of nickel-plated brass CW614N (galvanized nickel-plated) - type MSN239A1804
The RIEGLER screw-on hose nozzle, G 1/8 i., for hose LW 4, SW 14, MS nickel-plated creates a robust connection between the hose and the threaded connection. The housing is made of nickel-plated brass CW614N (galvanized nickel-plated). Designed for a maximum operating pressure of 25 bar. G 1/8 connection thread - suitable for common industry standards. Universally applicable for different hose sizes.
Field of application
Typical areas of application: Water, compressed air and media systems.
| Working pressure max. | 25 bar |
| Material | Nickel-plated brass CW614N (electroplated nickel-plated) |
| Operating temperature max. | 150 °C |
| Thread | G 1/8 |
| SW | 14 mm |
| for hose | LW 4 mm |
| L1 | 36 mm |
| L2 | 10 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Class name | PLUS |
