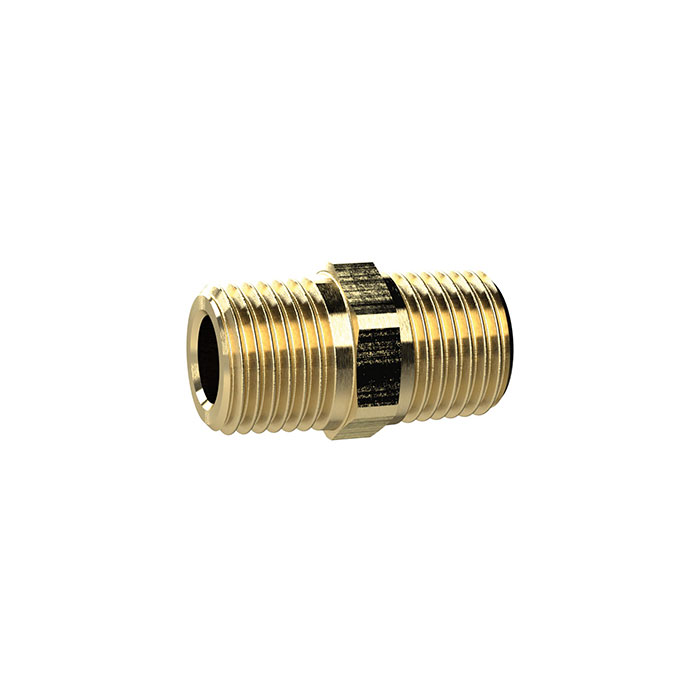

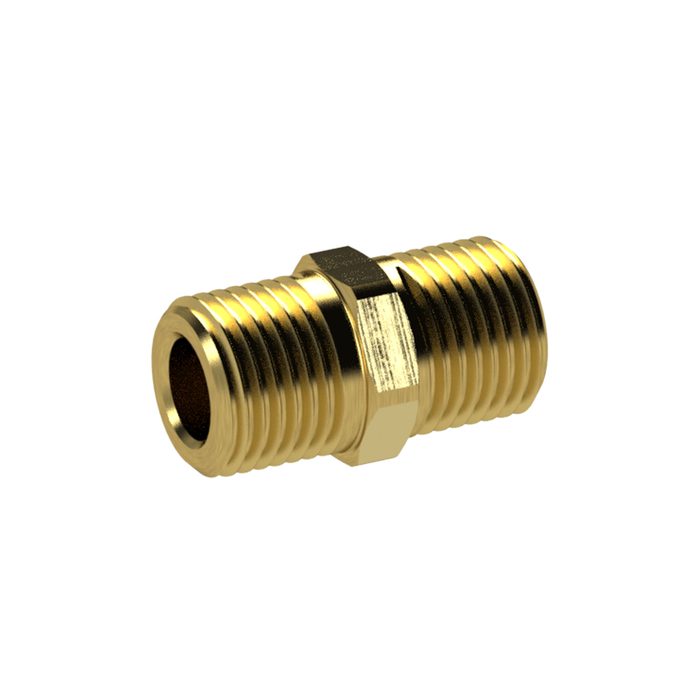

RIEGLER Double threaded nipple Conical R 1 1/2 a., R 1 1/2 a. AF 50 Brass
Type number: MS252R112112
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Double threaded nipple, R 1 1/2 a., R 1 1/2 a., SW 50, brass, working pressure max. 25 bar, operating temp. max. 150 °C
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| SW | 50 mm |
| L1 | 47 mm |
| L2 | 20 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Thread 1 | R 1 1/2 |
| Thread 2 | R 1 1/2 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| L3 | 20 mm |
| Class name | PLUS |
