RIEGLER Straight push-in bulkhead connector, M16x1.0, Stainless steel
Type number: 851.016-8 ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight bulkhead push-in connector made of stainless steel 1.4404, for pneumatic installation, max. 20 bar - type 851.016-8 ES
The RIEGLER straight bulkhead connector, M16x1.0, ES 1.4404 connects compressed air and pneumatic lines safely and tightly. The housing is made of stainless steel 1.4404 with FPM seals. The operating pressure range is -0.98 bar to 20 bar. The operating temperature is between -20 °C and 150 °C. Connection thread M16x1.0 - suitable for common industry standards. Suitable for compressed air, corrosive media (if compatible with material). Secure, tight connection for reliable operation.
Field of application
Typical areas of application: Pneumatic installations and compressed air distribution.
| Medium | Compressed air, corrosive media (if compatible with material) |
| Sealing material | FPM |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 150 °C |
| Working pressure min. | -0.98 bar |
| Working pressure max. | 20 bar |
| Material | Stainless steel 1.4404 |
| Area of application | Compressed air systems, chemicals and food, pharmaceuticals, packaging, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Suitable pipe material | PVDF, PTFE, PA, PU |
| Thread | M16x1.0 |
| SW | 21 mm |
| for hose outer Ø | 8 mm |
| L1 | 36 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[135255] RIEGLER Straight push-in bulkhead connector, M11x0.75, Stainless steel](/web/image/product.template/205911/image_128/%5B135255%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%2C%20M11x0.75%2C%20Stainless%20steel?unique=f772133)
|
Type number: 851.011-4 ES |
27.66 € | |
![[135256] RIEGLER Straight push-in bulkhead connector, M14x1.0, Stainless steel](/web/image/product.template/205912/image_128/%5B135256%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%2C%20M14x1.0%2C%20Stainless%20steel?unique=2d36c8c)
|
Type number: 851.014-6 ES |
30.07 € | |
![[135258] RIEGLER Straight push-in bulkhead connector, M18x1.0, Stainless steel](/web/image/product.template/205914/image_128/%5B135258%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%2C%20M18x1.0%2C%20Stainless%20steel?unique=6a28701)
|
Type number: 851.018-10 ES |
42.90 € | |

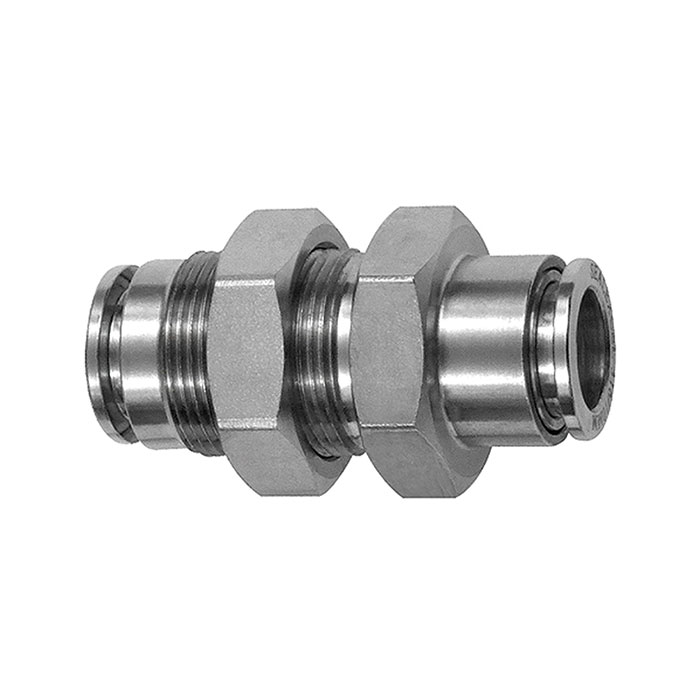

![[135259] RIEGLER Straight push-in bulkhead connector, M22x1.5, Stainless steel](/web/image/product.template/205915/image_128/%5B135259%5D%20RIEGLER%20Straight%20push-in%20bulkhead%20connector%2C%20M22x1.5%2C%20Stainless%20steel?unique=cbc34e0)
|
