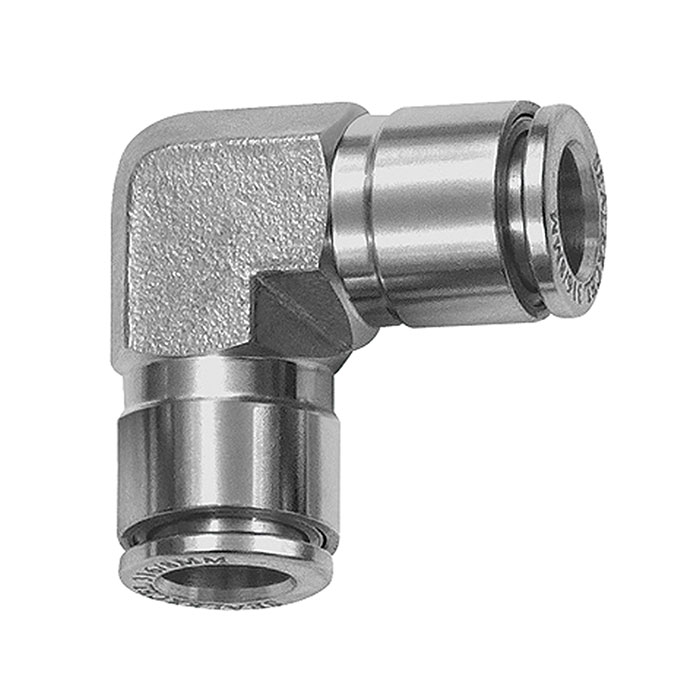

RIEGLER Push-in L-connector, for hose exterior Ø 12, Stainless steel
Type number: 848.012 ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
L-connector, for hose outer Ø 12 mm, working pressure -0.98 - 20 bar, stainless steel 1.4404
| Medium | Compressed air, corrosive media (if compatible with material) |
| Sealing material | FPM |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 150 °C |
| Working pressure min. | -0.98 bar |
| Working pressure max. | 20 bar |
| Material | Stainless steel 1.4404 |
| Area of application | Compressed air systems, chemicals and food, pharmaceuticals, packaging, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Suitable pipe material | PVDF, PTFE, PA, PU |
| SW | 19 mm |
| for hose outer Ø | 12 mm |
| L1 | 26.7 mm |
| L2 | 26.7 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[135265] RIEGLER Push-in L-connector, for hose exterior Ø 10, Stainless steel](/web/image/product.template/205921/image_128/%5B135265%5D%20RIEGLER%20Push-in%20L-connector%2C%20for%20hose%20exterior%20%C3%98%2010%2C%20Stainless%20steel?unique=8a34306)
|
Type number: 848.010 ES |
33.18 € | |
![[135267] RIEGLER Push-in L-connector, for hose exterior Ø 14, Stainless steel](/web/image/product.template/205923/image_128/%5B135267%5D%20RIEGLER%20Push-in%20L-connector%2C%20for%20hose%20exterior%20%C3%98%2014%2C%20Stainless%20steel?unique=235c93b)
|
Type number: 848.014 ES |
76.35 € | |

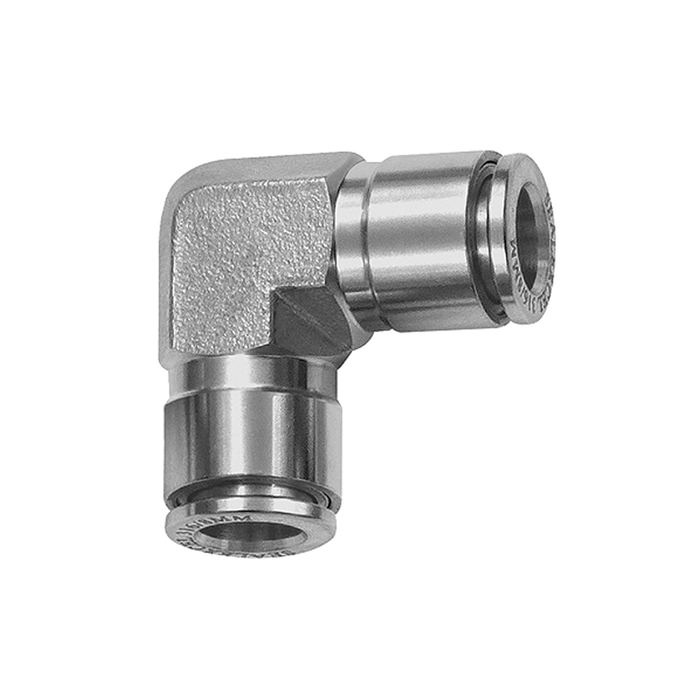

![[135268] RIEGLER Push-in L-connector, for hose exterior Ø 16, Stainless steel](/web/image/product.template/205924/image_128/%5B135268%5D%20RIEGLER%20Push-in%20L-connector%2C%20for%20hose%20exterior%20%C3%98%2016%2C%20Stainless%20steel?unique=39547e1)
|
Type number: 848.016 ES |
91.02 € | |
![[135262] RIEGLER Push-in L-connector, for hose exterior Ø 4, Stainless steel](/web/image/product.template/205918/image_128/%5B135262%5D%20RIEGLER%20Push-in%20L-connector%2C%20for%20hose%20exterior%20%C3%98%204%2C%20Stainless%20steel?unique=2f6c454)
|
Type number: 848.004 ES |
22.60 € | |
![[135263] RIEGLER Push-in L-connector, for hose exterior Ø 6, Stainless steel](/web/image/product.template/205919/image_128/%5B135263%5D%20RIEGLER%20Push-in%20L-connector%2C%20for%20hose%20exterior%20%C3%98%206%2C%20Stainless%20steel?unique=342abf8)
|
Type number: 848.006 ES |
22.99 € | |
![[135264] RIEGLER Push-in L-connector, for hose exterior Ø 8, Stainless steel](/web/image/product.template/205920/image_128/%5B135264%5D%20RIEGLER%20Push-in%20L-connector%2C%20for%20hose%20exterior%20%C3%98%208%2C%20Stainless%20steel?unique=4d1f559)
|
Type number: 848.008 ES |
25.57 € | |
