RIEGLER Throttle check valve »Blue Series« mini Discharge throttle, M5 o.
Type number: 283.005-3
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Throttle check valve "Blue Series" mini, exhaust air throttle, M5 a., f. hose outer Ø 3 mm, pmax 10 bar, plastic/MS, nickel-plated.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series mini |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | M5 |
| SW | 8 mm |
| for hose outer Ø | 3 mm |

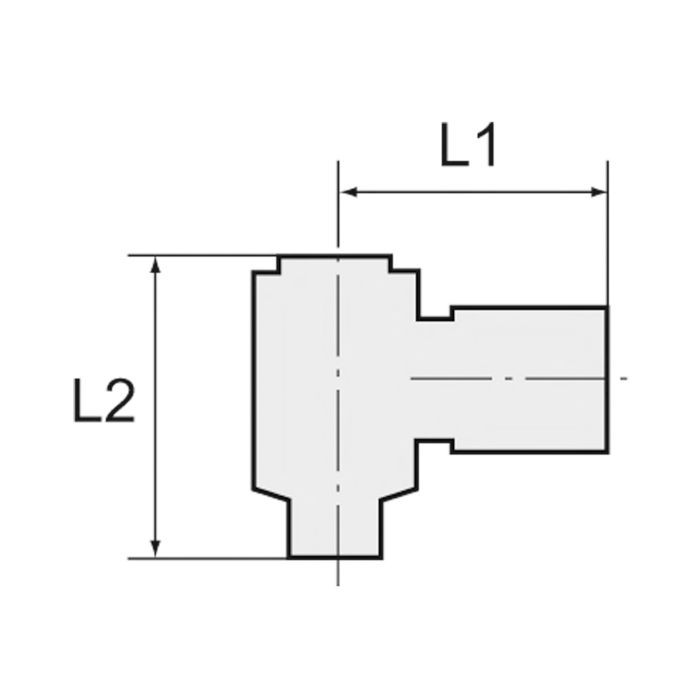

| L1 | 31.7 mm |
| L2 | 16.4 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

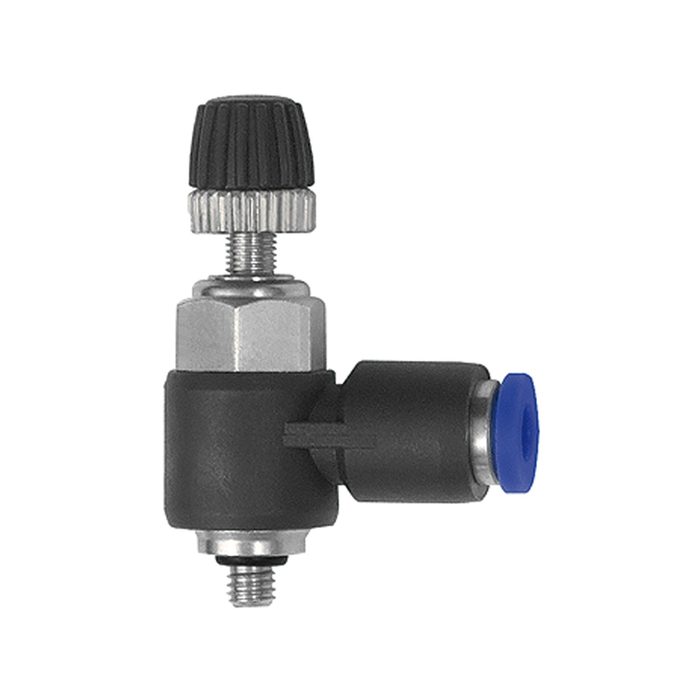

![[135554] RIEGLER Throttle check valve »Blue Series« mini Discharge throttle, M3 o.](/web/image/product.template/206065/image_128/%5B135554%5D%20RIEGLER%20Throttle%20check%20valve%20%C2%BBBlue%20Series%C2%AB%20mini%20Discharge%20throttle%2C%20M3%20o.?unique=9c19e6f)
|
