RIEGLER Y- angled piece fitting »Blue Series«, rotating, R 1/4 o.
Type number: 211.014-6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Y-Winkelsteckverschr. »Blaue Serie«, drehbar, R 1/4 a., für Schlauch-Außen-Ø 6 mm, pmax kurzzeitig 15 bar, Kunststoff/MS vern.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 1/4 |
| SW | 14 mm |
| for hose outer Ø | 6 mm |
| L1 | 24 mm |
| L2 | 27 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[109633] RIEGLER Y- angled piece fitting »Blue Series«, rotating, R 1/2 o.](/web/image/product.template/178559/image_128/%5B109633%5D%20RIEGLER%20Y-%20angled%20piece%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%201-2%20o.?unique=f32a876)
|
Type number: 211.012-12 |
5.52 € | |
![[109631] RIEGLER Y- angled piece fitting »Blue Series«, rotating, R 1/4 o.](/web/image/product.template/178557/image_128/%5B109631%5D%20RIEGLER%20Y-%20angled%20piece%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%201-4%20o.?unique=2fef96d)
|
Type number: 211.014-8 |
3.13 € | |
![[135657] RIEGLER Y- angled piece fitting »Blue Series«, rotating, R 1/4 o.](/web/image/product.template/206101/image_128/%5B135657%5D%20RIEGLER%20Y-%20angled%20piece%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%201-4%20o.?unique=75d6968)
|
Type number: 211.014-10 |
4.11 € | |

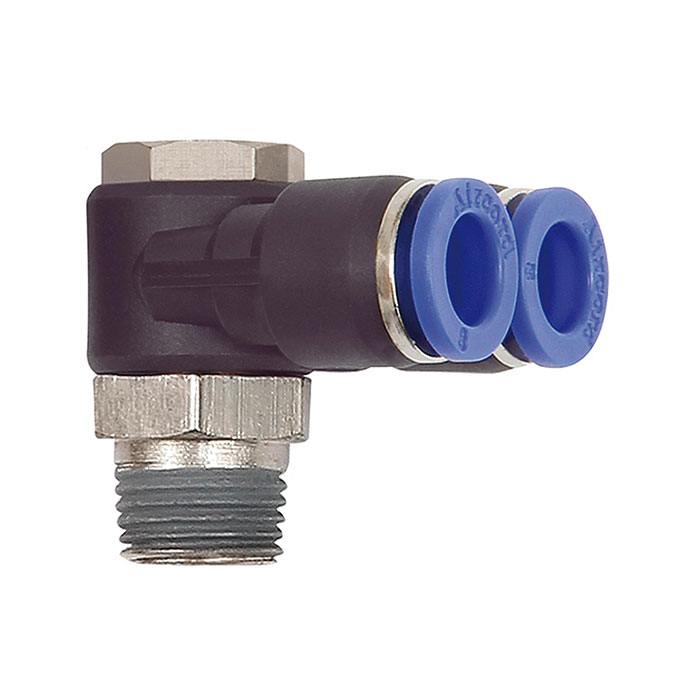

![[109630] RIEGLER Y- angled piece fitting »Blue Series«, rotating, R 1/8 o.](/web/image/product.template/178556/image_128/%5B109630%5D%20RIEGLER%20Y-%20angled%20piece%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%201-8%20o.?unique=7017545)
|
Type number: 211.018-6 |
2.34 € | |
![[125898] RIEGLER Y- angled piece fitting »Blue Series«, rotating, R 1/8 o.](/web/image/product.template/202582/image_128/%5B125898%5D%20RIEGLER%20Y-%20angled%20piece%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%201-8%20o.?unique=53b846e)
|
Type number: 211.018-8 |
3.19 € | |
![[109632] RIEGLER Y- angled piece fitting »Blue Series«, rotating, R 3/8 o.](/web/image/product.template/178558/image_128/%5B109632%5D%20RIEGLER%20Y-%20angled%20piece%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%203-8%20o.?unique=861b28d)
|
Type number: 211.038-10 |
4.34 € | |
![[135658] RIEGLER Y- angled piece fitting »Blue Series«, rotating, R 3/8 o.](/web/image/product.template/206102/image_128/%5B135658%5D%20RIEGLER%20Y-%20angled%20piece%20fitting%20%C2%BBBlue%20Series%C2%AB%2C%20rotating%2C%20R%203-8%20o.?unique=f2fc737)
|
Type number: 211.038-12 |
5.22 € | |
