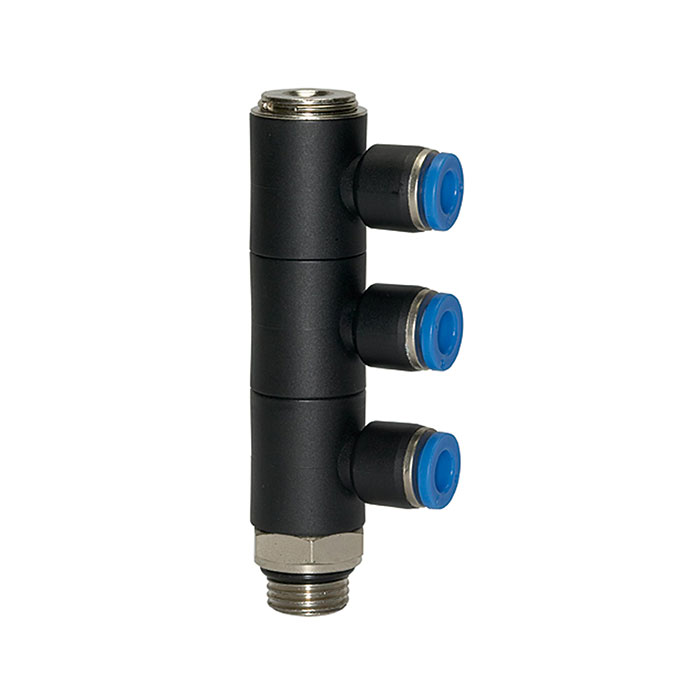

RIEGLER L-multi-distributor »Blue Series«, 3-fold, rotating, G 1/2 o.
Type number: 172.012-12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
L-manifold "Blue Series", 3-way, rotatable, G 1/2 a., for external Ø 12 mm, pmax short-term 15 bar, plastic/MS nickel-plated.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | G 1/2 |
| SW | 24 mm |
| for hose outer Ø | 12 mm |
| Internal hexagon | 8 mm |

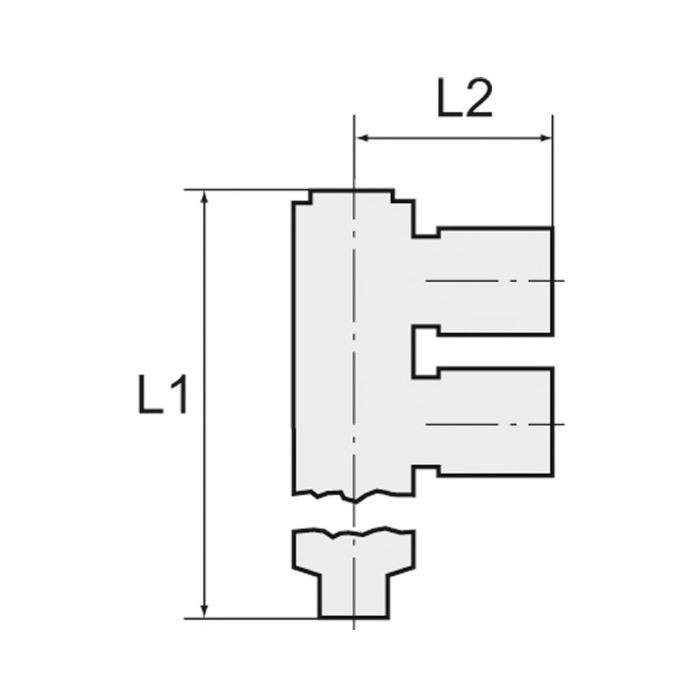

| L1 | 85.7 mm |
| L2 | 35.4 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
