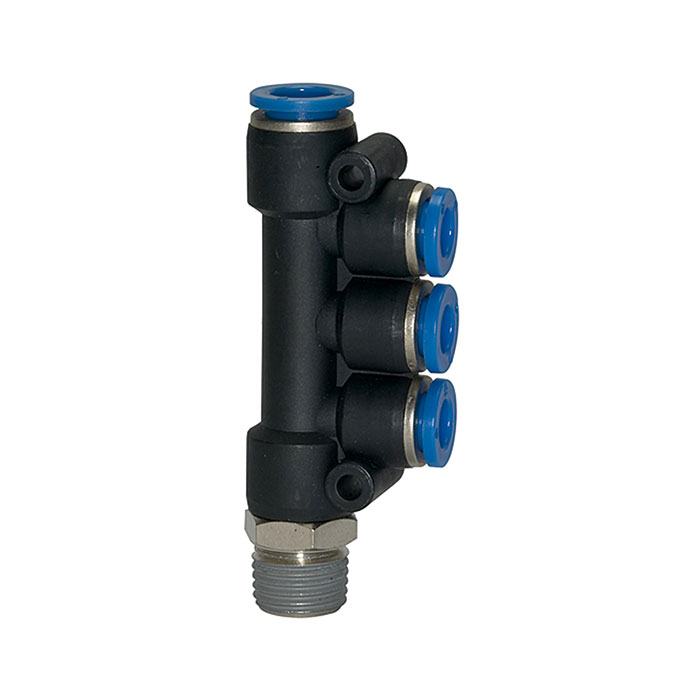

RIEGLER T-multi-distributor »Blue Series«, rotating, R 1/4 o.
Type number: 174.0144
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
T-Mehrfachverteiler »Blaue Serie«, drehbar, R 1/4 a., für Schlauch-Außen-Ø 4x4 mm, pmax kurzzeitig 15 bar, Kunststoff/MS vern.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 1/4 |
| SW | 14 mm |
| for hose outer Ø | 4x4 mm |

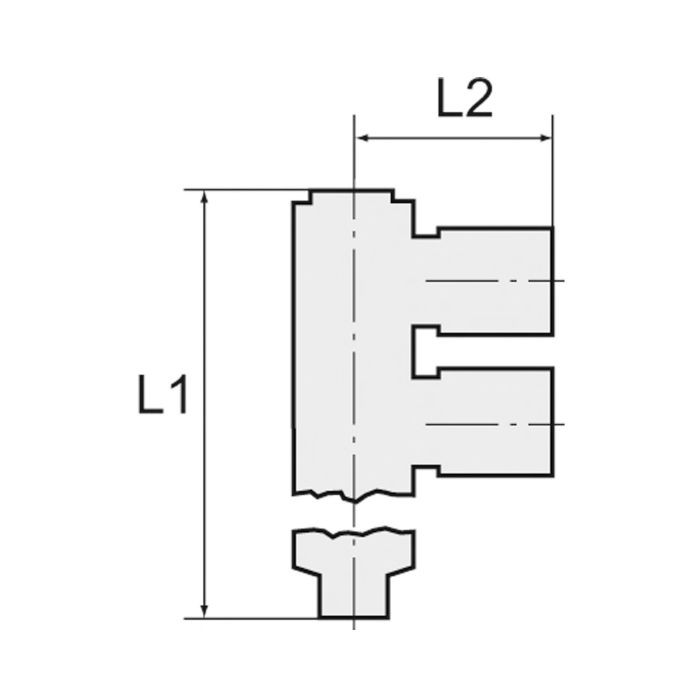

| L1 | 66.5 mm |
| L2 | 19 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
