RIEGLER Push-in T-connector, Plug nipple »Blue Series«, hose/plug Ø 4
Type number: 293.004-K
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
T-Steckverbindung, Stecknippel 4 »Blaue Serie«, für Schlauch-Außen-Ø 4 mm, pmax kurzzeitig 15 bar, Kunststoff
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 4 mm |
| Plug nipple | 4 mm |

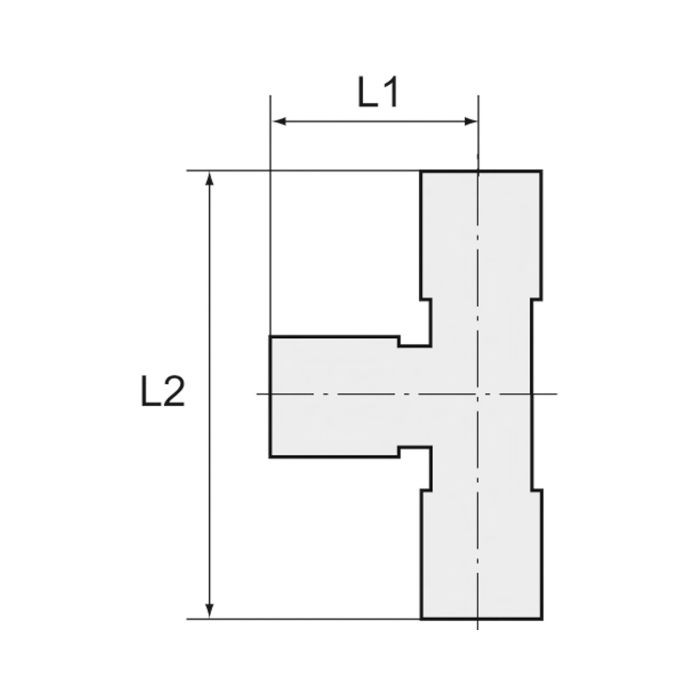

| L1 | 18.5 mm |
| L2 | 31.5 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[135779] RIEGLER Push-in T-connector, Plug nipple »Blue Series«, hose/plug Ø 10](/web/image/product.template/206157/image_128/%5B135779%5D%20RIEGLER%20Push-in%20T-connector%2C%20Plug%20nipple%20%C2%BBBlue%20Series%C2%AB%2C%20hose-plug%20%C3%98%2010?unique=a4a2620)
|
Type number: 293.010-K |
2.84 € | |
![[135780] RIEGLER Push-in T-connector, Plug nipple »Blue Series«, hose/plug Ø 12](/web/image/product.template/206158/image_128/%5B135780%5D%20RIEGLER%20Push-in%20T-connector%2C%20Plug%20nipple%20%C2%BBBlue%20Series%C2%AB%2C%20hose-plug%20%C3%98%2012?unique=a668d1f)
|
Type number: 293.012-K |
3.20 € | |
![[135781] RIEGLER Push-in T-connector, Plug nipple »Blue Series«, hose/plug Ø 16](/web/image/product.template/206159/image_128/%5B135781%5D%20RIEGLER%20Push-in%20T-connector%2C%20Plug%20nipple%20%C2%BBBlue%20Series%C2%AB%2C%20hose-plug%20%C3%98%2016?unique=5e96fa4)
|
Type number: 293.016-K |
6.30 € | |
![[135777] RIEGLER Push-in T-connector, Plug nipple »Blue Series«, hose/plug Ø 6](/web/image/product.template/206155/image_128/%5B135777%5D%20RIEGLER%20Push-in%20T-connector%2C%20Plug%20nipple%20%C2%BBBlue%20Series%C2%AB%2C%20hose-plug%20%C3%98%206?unique=0cd9e87)
|
Type number: 293.006-K |
1.73 € | |

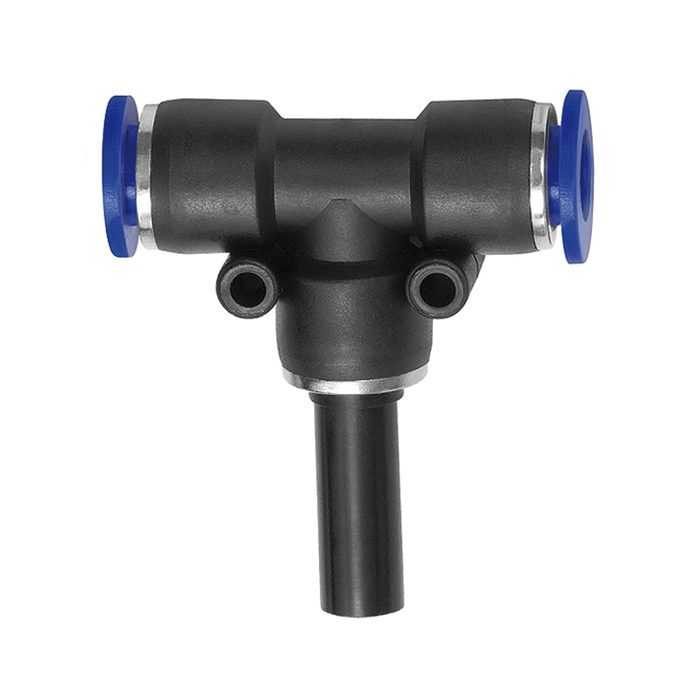

![[135778] RIEGLER Push-in T-connector, Plug nipple »Blue Series«, hose/plug Ø 8](/web/image/product.template/206156/image_128/%5B135778%5D%20RIEGLER%20Push-in%20T-connector%2C%20Plug%20nipple%20%C2%BBBlue%20Series%C2%AB%2C%20hose-plug%20%C3%98%208?unique=a77f2b1)
|
Type number: 293.008-K |
1.96 € | |
