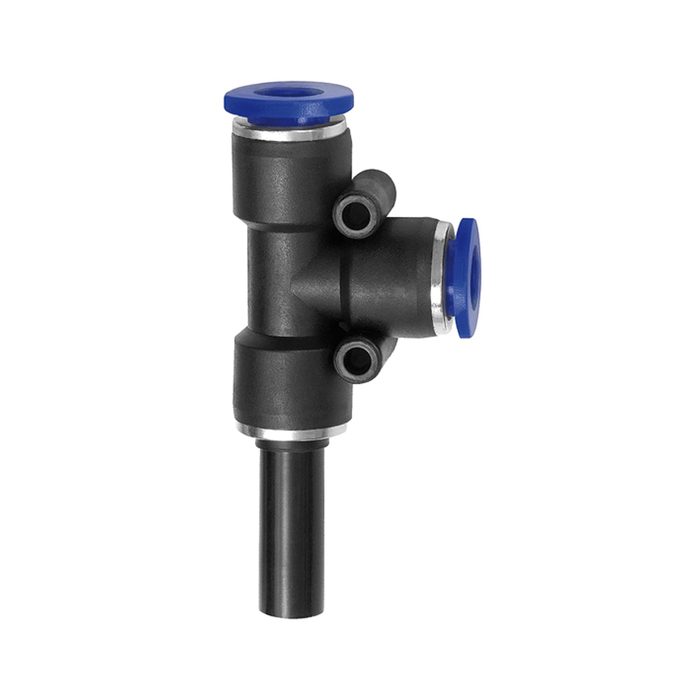

RIEGLER Push-in T-connector, Plug nipple 16 mm »Blue Series«, hose Ø 12
Type number: 294.1612-K
EAN: 4047322499378
Push-in T-connector, plug nipple 16mm "blue series", red, for hose outer Ø 12mm, pmax short-term 15 bar, KS, L-shaped connections
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 12 mm |
| Plug nipple | 16 mm |

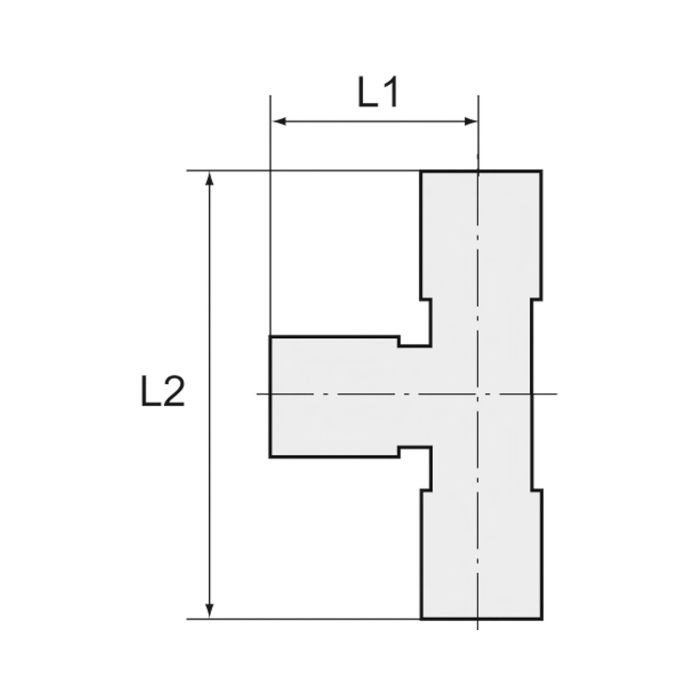

| L1 | 28 mm |
| L2 | 79 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
