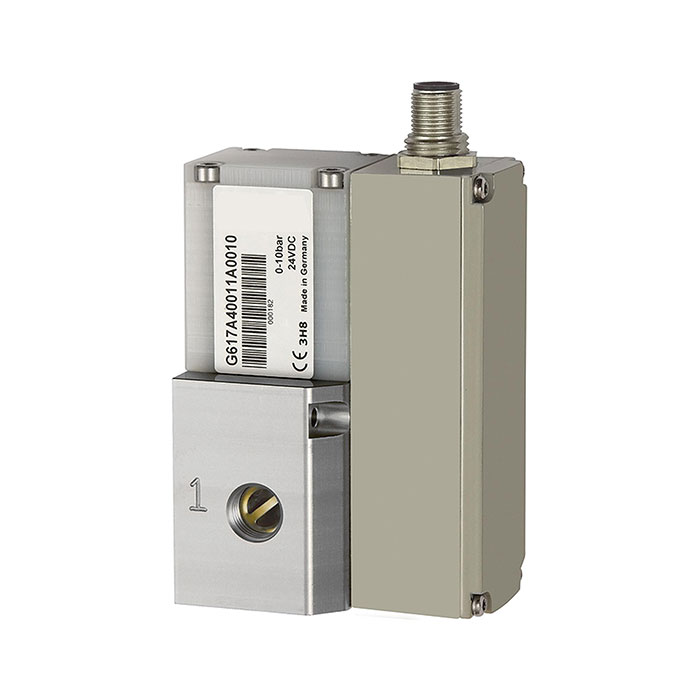

RIEGLER Proportional control valve »sentronic LP«, 24 V DC, G 1/4, DN 4
Type number: PV 2160-N
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Proportional control valve "sentronic LP" made of aluminum, for compressed air treatment - type PV 2160-N
The RIEGLER proportional control valve "sentronic LP", 24 V DC, G 1/4, DN 4 regulates the output pressure continuously and electronically proportional to the input signal. The housing is made of aluminum with NBR seals. The operating pressure range is 0 bar to 10 bar. The permissible medium temperature is between 0 °C and 60 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for air or neutral gases, filtered 50 µm, lubricated or unlubricated. The flow rate is 470 l/min (at P2 = 6 bar). Infinitely variable pressure control for maximum process precision.
Field of application
Typical areas of application: Automation technology, process technology and quality control.
| Medium | Air or neutral gases, filtered 50 µm, lubricated or unlubricated |
| Housing | Aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | 0 °C |
| Ambient temperature max. | 50 °C |
| Flow rate | 470 l/min |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Interior parts | POM |
| Control | 0 - 10 V |
| Electrical setpoint | 0 - 10 V |
| Failsafe behaviour | Pressure-maintaining with voltage drop, without regulation |
| Reproducibility | 1% of the final value |
| Hysteresis | 1% of the final value |
| Thread | G 1/4 |
| DN | 4 |
| Actuation | 3-way valves |
| B | 52 mm |
| H | 115 mm |
| Class name | FLEX |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

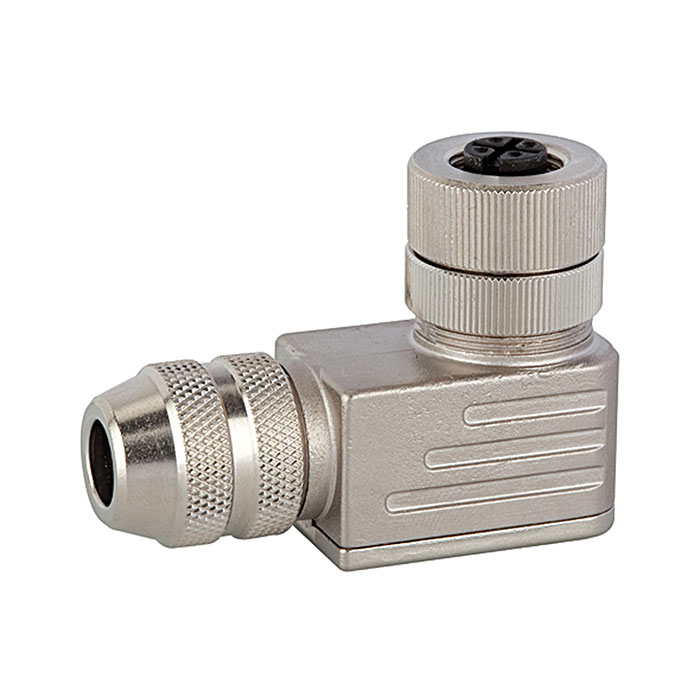

![[101635] RIEGLER M12 angled line socket, 5-pole, with screw clamps](/web/image/product.template/169608/image_128/%5B101635%5D%20RIEGLER%20M12%20angled%20line%20socket%2C%205-pole%2C%20with%20screw%20clamps?unique=58a8402)
|
Type number: PVZ 10 |
33.32 € | |

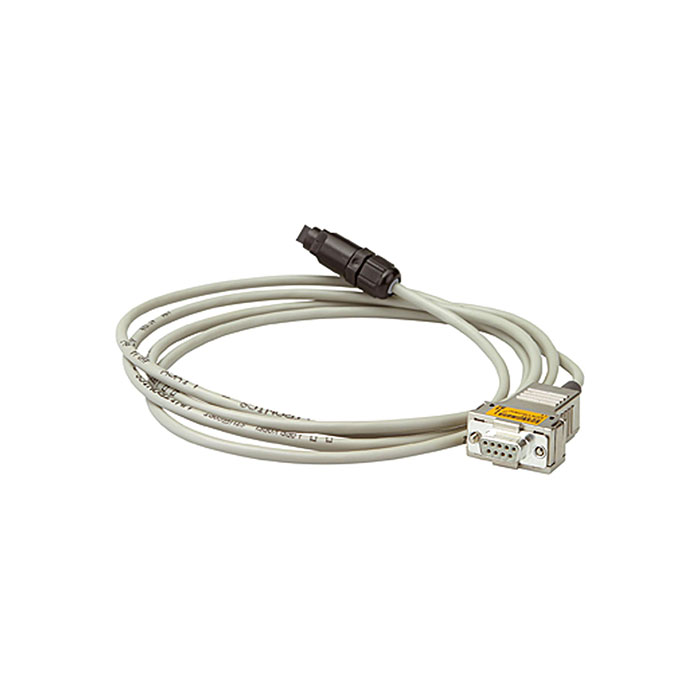

![[101637] RIEGLER RS 232 converter, 2 m cable with 9-pole sub-D plug](/web/image/product.template/169610/image_128/%5B101637%5D%20RIEGLER%20RS%20232%20converter%2C%202%20m%20cable%20with%209-pole%20sub-D%20plug?unique=ae7df84)
|
Type number: PVZ 12 |
311.03 € | |
