RIEGLER 3-way ball valve, T-hole, Stainless steel 1.4408, G 1/4, DN 8
Type number: 11082 A-ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3-way ball valve made of stainless steel 1.4408, for industrial systems, G 1/4 - type 11082 A-ES
The RIEGLER 3-way ball valve, T-bore, stainless steel 1.4408, G 1/4, DN 8 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of stainless steel 1.4408. The operating temperature is between -20 °C and 180 °C. Connection thread G 1/4 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Stainless steel 1.4408 |
| Ball | Stainless steel 1.4401 |
| Ball seal | RTFE (PTFE 15% glass fiber reinforced) |
| Spindle seal | RTFE (PTFE 15% glass fiber reinforced) |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 180 °C |
| Operating pressure | 63 bar (depending on temperature) |
| Thread | G 1/4 |
| DN | 8 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| A | 112 mm |
| B | 77.5 mm |
| C | 9 mm |
| L | 75.7 mm |
| Execution | T-bore |
| L1 | 37.3 mm |
| C Ø | 11 mm |
| H1 | 38.2 mm |
| H2 | 9 mm |
| ISO 5211 | F 04 |
| Class name | STAINLESS STEEL |
| Bore diameter padlock | approx. 7.9 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[135934] RIEGLER 3-way ball valve, T-hole, Stainless steel 1.4408, G 1 1/2, DN 40](/web/image/product.template/206287/image_128/%5B135934%5D%20RIEGLER%203-way%20ball%20valve%2C%20T-hole%2C%20Stainless%20steel%201.4408%2C%20G%201%201-2%2C%20DN%2040?unique=b49df6d)
|
Type number: 11082 G-ES |
367.27 € | |
![[135933] RIEGLER 3-way ball valve, T-hole, Stainless steel 1.4408, G 1 1/4, DN 32](/web/image/product.template/206286/image_128/%5B135933%5D%20RIEGLER%203-way%20ball%20valve%2C%20T-hole%2C%20Stainless%20steel%201.4408%2C%20G%201%201-4%2C%20DN%2032?unique=27e9b13)
|
Type number: 11082 F-ES |
304.51 € | |

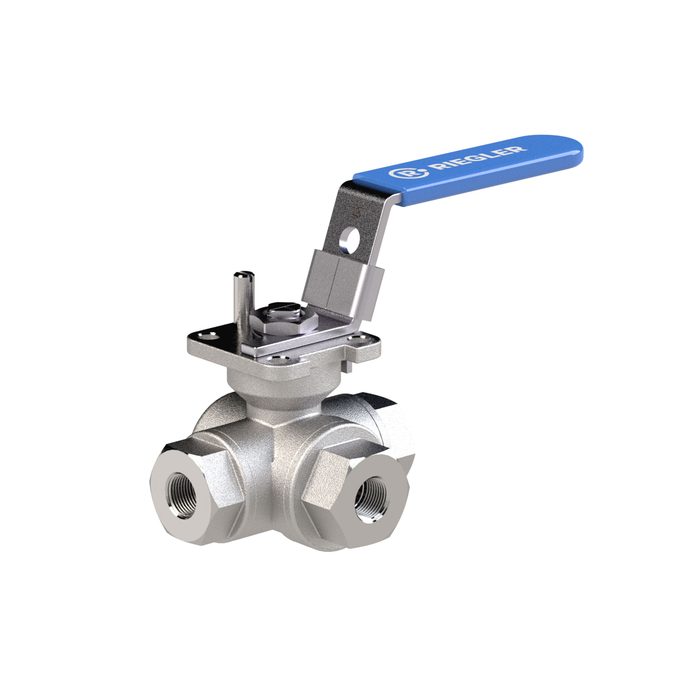

![[135930] RIEGLER 3-way ball valve, T-hole, Stainless steel 1.4408, G 1/2, DN 15](/web/image/product.template/206283/image_128/%5B135930%5D%20RIEGLER%203-way%20ball%20valve%2C%20T-hole%2C%20Stainless%20steel%201.4408%2C%20G%201-2%2C%20DN%2015?unique=38e11ce)
|
