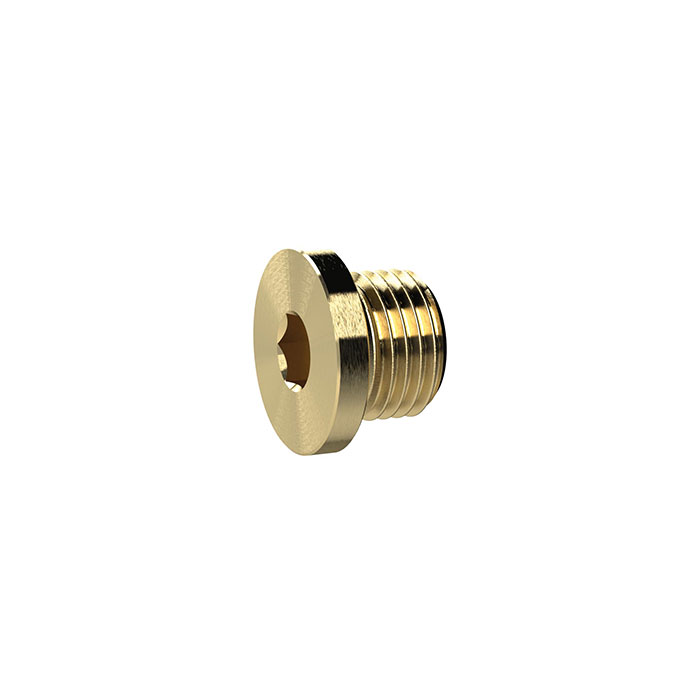

RIEGLER Locking screw, Hexagonal socket and flange, G 3/8, AF 8, Brass
Type number: MS290MS38
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Verschlussschraube, Innensechskant und Bund G 3/8, SW 8, Messing, Arbeitsdruck max. 25 bar, Betriebstemp. max. 150 °C
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| Thread | G 3/8 hexagon socket |
| SW | 8 mm |
| L1 | 12 mm |
| L2 | 9 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[135970] RIEGLER Locking screw, Hexagonal socket and flange, G 1 1/2, AF 24, Brass](/web/image/product.template/206318/image_128/%5B135970%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%20and%20flange%2C%20G%201%201-2%2C%20AF%2024%2C%20Brass?unique=5a12d91)
|
Type number: MS290MS112 |
8.94 € | |
![[135969] RIEGLER Locking screw, Hexagonal socket and flange, G 1 1/4, AF 22, Brass](/web/image/product.template/206317/image_128/%5B135969%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%20and%20flange%2C%20G%201%201-4%2C%20AF%2022%2C%20Brass?unique=b01d1df)
|
Type number: MS290MS114 |
7.01 € | |
![[135966] RIEGLER Locking screw, Hexagonal socket and flange, G 1/2, AF 10, Brass](/web/image/product.template/206314/image_128/%5B135966%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%20and%20flange%2C%20G%201-2%2C%20AF%2010%2C%20Brass?unique=b210a94)
|
Type number: MS290MS12 |
0.95 € | |
![[135963] RIEGLER Locking screw, Hexagonal socket and flange, G 1/4, AF 6, Brass](/web/image/product.template/206311/image_128/%5B135963%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%20and%20flange%2C%20G%201-4%2C%20AF%206%2C%20Brass?unique=9480f6c)
|
Type number: MS290MS14 |
0.48 € | |
![[135962] RIEGLER Locking screw, Hexagonal socket and flange, G 1/8, AF 5, Brass](/web/image/product.template/206310/image_128/%5B135962%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%20and%20flange%2C%20G%201-8%2C%20AF%205%2C%20Brass?unique=1f3b6f6)
|
Type number: MS290MS18 |
0.38 € | |
![[135968] RIEGLER Locking screw, Hexagonal socket and flange, G 1, AF 17, Brass](/web/image/product.template/206316/image_128/%5B135968%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%20and%20flange%2C%20G%201%2C%20AF%2017%2C%20Brass?unique=4b75b1a)
|
Type number: MS290MS1 |
2.82 € | |
![[135971] RIEGLER Locking screw, Hexagonal socket and flange, G 2, AF 27, Brass](/web/image/product.template/206319/image_128/%5B135971%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%20and%20flange%2C%20G%202%2C%20AF%2027%2C%20Brass?unique=8987a68)
|
Type number: MS290MS2 |
17.65 € | |
![[135967] RIEGLER Locking screw, Hexagonal socket and flange, G 3/4, AF 12, Brass](/web/image/product.template/206315/image_128/%5B135967%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%20and%20flange%2C%20G%203-4%2C%20AF%2012%2C%20Brass?unique=5cbdeed)
|
Type number: MS290MS34 |
1.77 € | |
