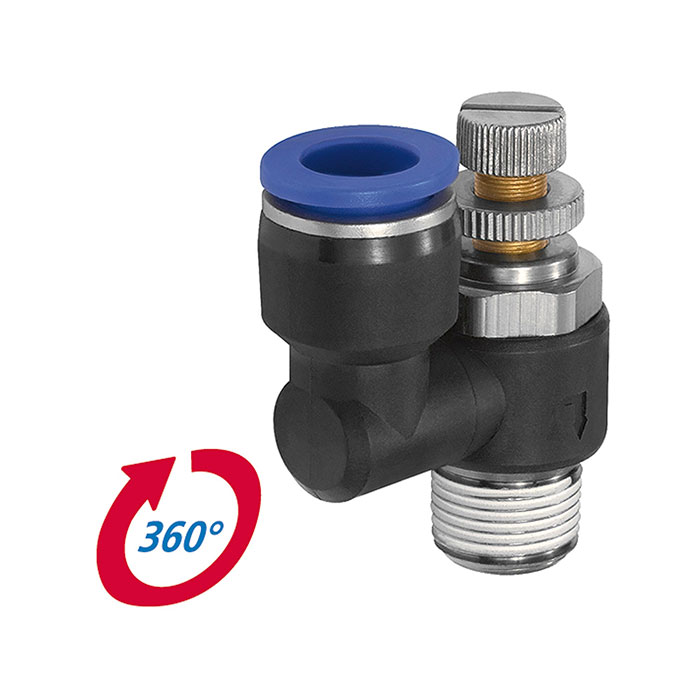

RIEGLER Throttle check valve »Blue Series«, Discharge throttle, M5 o.
Type number: 299.005-6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

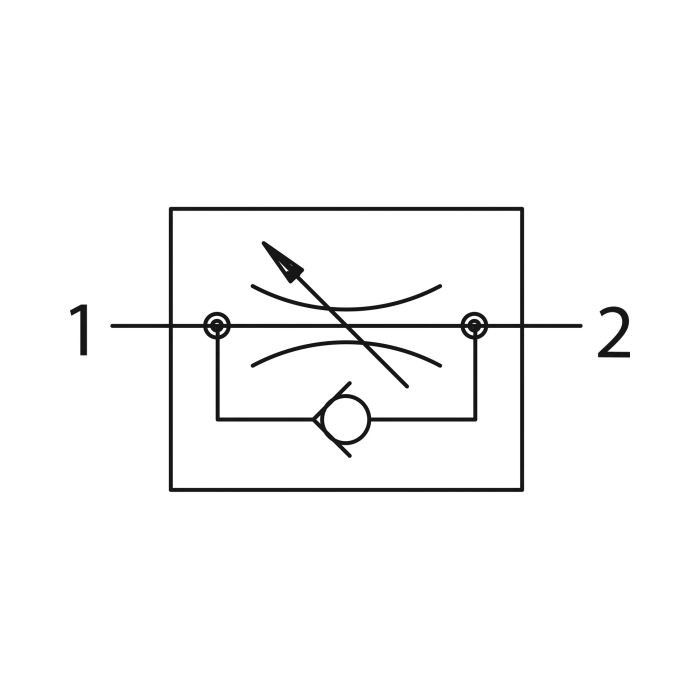

Throttle check valve "Blue Series", straight, exhaust air throttle, M5 a., for external Ø6mm, pmax short-time 15bar, plastic/MS vern.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | M5 |
| SW | 8 mm |
| for hose outer Ø | 6 mm |

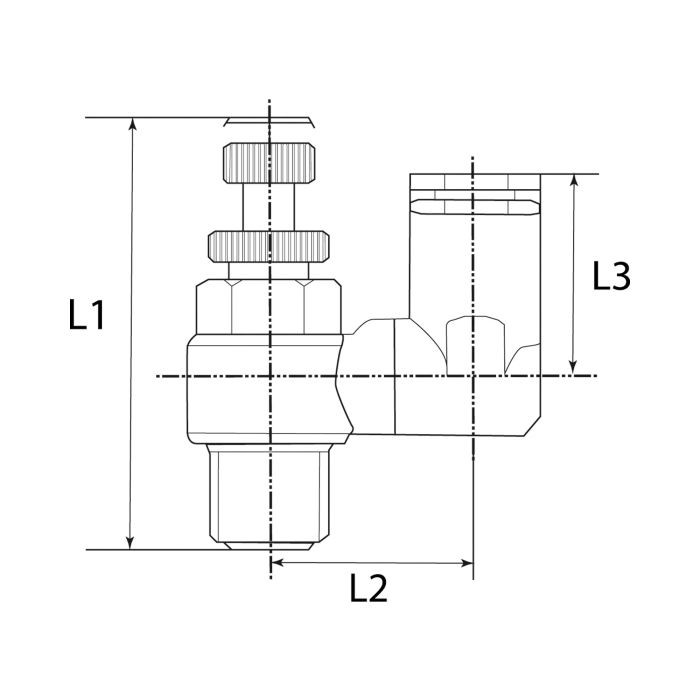

| L1 | 33.5 mm |
| L2 | 13 mm |
| L3 | 22 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
