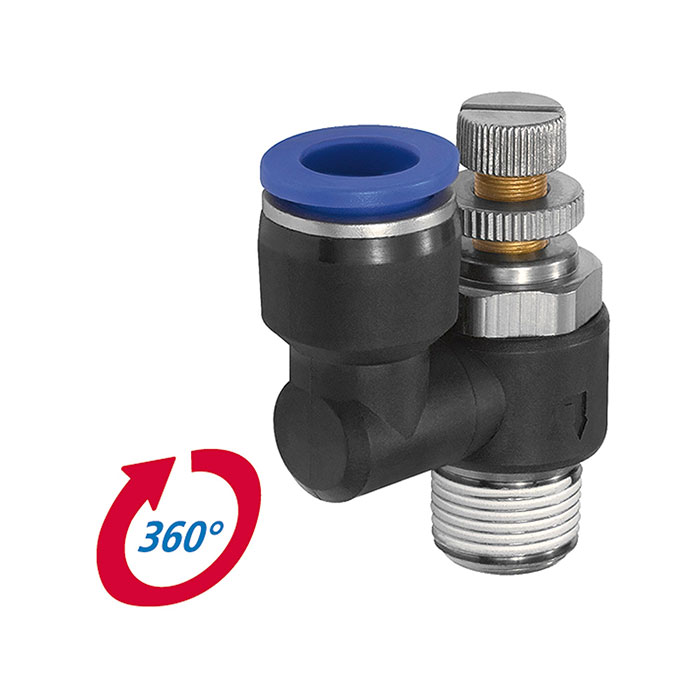

RIEGLER Throttle check valve »Blue Series«, Discharge throttle, R 1/4 o.
Type number: 299.014-12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Throttle check valve "Blue Series", straight, exhaust air throttle, R1/4 a., for Ø 12mm, pmax short-time 15bar, plastic/MS nickel-plated
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 1/4 |
| SW | 14 mm |
| for hose outer Ø | 12 mm |
| L1 | 48 mm |
| L2 | 22 mm |
| L3 | 30 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
