RIEGLER Locking screw, Hexagonal socket, without flange, R 1/2, Brass
Type number: MS290ROB12
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Brass screw plug CW614N, for pipeline construction, max. 25 bar - type MS290ROB12
The RIEGLER screw plug, hexagon socket, without collar, R 1/2, MS is a high-quality accessory from the RIEGLER range. The housing is made of brass CW614N. Designed for a maximum operating pressure of 25 bar. Connection thread R 1/2 hexagon socket - suitable for common industry standards. Perfect fit for RIEGLER products - easy installation.
Field of application
Typical areas of application: Maintenance, servicing and expansion of compressed air components.
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| Thread | R 1/2 hexagon socket |
| SW | 10 mm |
| L1 | 10 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[136083] RIEGLER Locking screw, Hexagonal socket, without flange, R 1 1/2, Brass](/web/image/product.template/207409/image_128/%5B136083%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20without%20flange%2C%20R%201%201-2%2C%20Brass?unique=5e16f78)
|
Type number: MS290ROB112 |
13.42 € | |

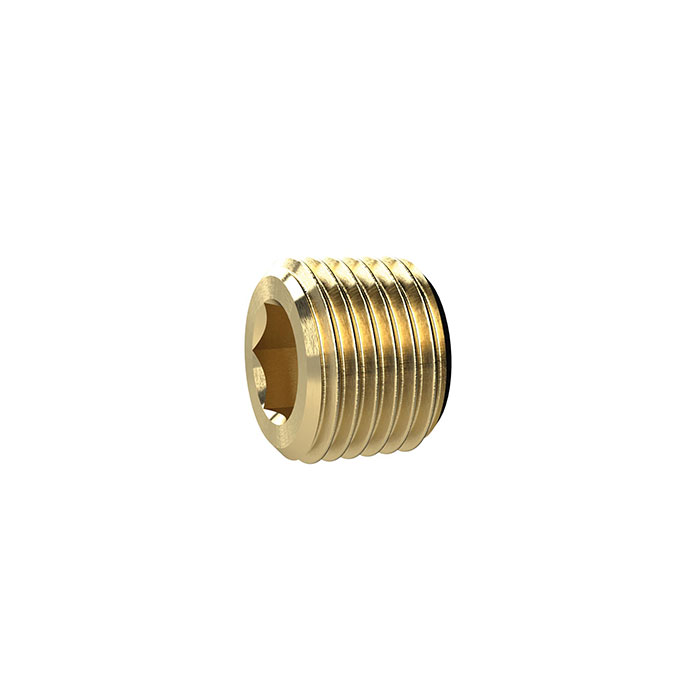

![[136082] RIEGLER Locking screw, Hexagonal socket, without flange, R 1 1/4, Brass](/web/image/product.template/207408/image_128/%5B136082%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20without%20flange%2C%20R%201%201-4%2C%20Brass?unique=02b0bbc)
|
Type number: MS290ROB114 |
9.06 € | |
![[136031] RIEGLER Locking screw, Hexagonal socket, without flange, R 1/4, Brass](/web/image/product.template/207399/image_128/%5B136031%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20without%20flange%2C%20R%201-4%2C%20Brass?unique=868a71a)
|
Type number: MS290ROB14 |
0.49 € | |
![[136004] RIEGLER Locking screw, Hexagonal socket, without flange, R 1/8, Brass](/web/image/product.template/207372/image_128/%5B136004%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20without%20flange%2C%20R%201-8%2C%20Brass?unique=f5b4169)
|
Type number: MS290ROB18 |
0.30 € | |
![[136081] RIEGLER Locking screw, Hexagonal socket, without flange, R 1, Brass](/web/image/product.template/207407/image_128/%5B136081%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20without%20flange%2C%20R%201%2C%20Brass?unique=489eb26)
|
Type number: MS290ROB01 |
4.43 € | |
![[136084] RIEGLER Locking screw, Hexagonal socket, without flange, R 2, Brass](/web/image/product.template/207410/image_128/%5B136084%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20without%20flange%2C%20R%202%2C%20Brass?unique=c427230)
|
Type number: MS290ROB2 |
22.43 € | |
![[136080] RIEGLER Locking screw, Hexagonal socket, without flange, R 3/4, Brass](/web/image/product.template/207406/image_128/%5B136080%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20without%20flange%2C%20R%203-4%2C%20Brass?unique=91a0ace)
|
Type number: MS290ROB34 |
3.71 € | |
![[136078] RIEGLER Locking screw, Hexagonal socket, without flange, R 3/8, Brass](/web/image/product.template/207404/image_128/%5B136078%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%2C%20without%20flange%2C%20R%203-8%2C%20Brass?unique=f68b4c2)
|
Type number: MS290ROB38 |
0.67 € | |
