RIEGLER Locking screw, Exterior hexagonal, M5, AF 8, Brass
Type number: MS290SKM5
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Screw plug, external hexagon, M5, SW 8, brass, max. working pressure 25 bar, max. operating temperature 150 °C
| Working pressure max. | 25 bar |
| Material | Brass CW614N |
| Operating temperature max. | 150 °C |
| Thread | M5 external hexagon |
| SW | 8 mm |
| L1 | 8 mm |
| L2 | 4 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | 1.0% w/w and < 10.0% |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[136089] RIEGLER Locking screw, Exterior hexagonal, G 1/2, AF 24, Brass](/web/image/product.template/207415/image_128/%5B136089%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%2C%20G%201-2%2C%20AF%2024%2C%20Brass?unique=49dd03e)
|
Type number: MS290SK12 |
1.68 € | |
![[136087] RIEGLER Locking screw, Exterior hexagonal, G 1/4, AF 17, Brass](/web/image/product.template/207413/image_128/%5B136087%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%2C%20G%201-4%2C%20AF%2017%2C%20Brass?unique=a5b1e5f)
|
Type number: MS290SK14 |
0.58 € | |

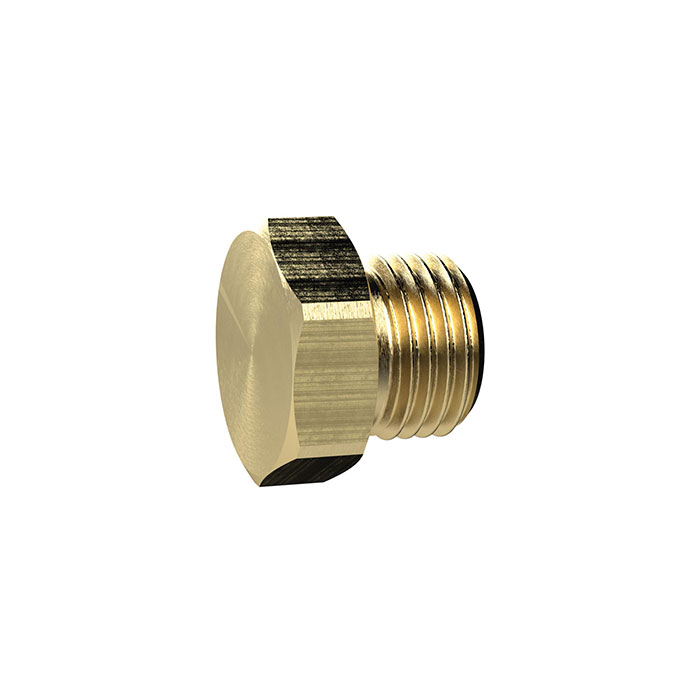

![[136086] RIEGLER Locking screw, Exterior hexagonal, G 1/8, AF 14, Brass](/web/image/product.template/207412/image_128/%5B136086%5D%20RIEGLER%20Locking%20screw%2C%20Exterior%20hexagonal%2C%20G%201-8%2C%20AF%2014%2C%20Brass?unique=82464fe)
|
